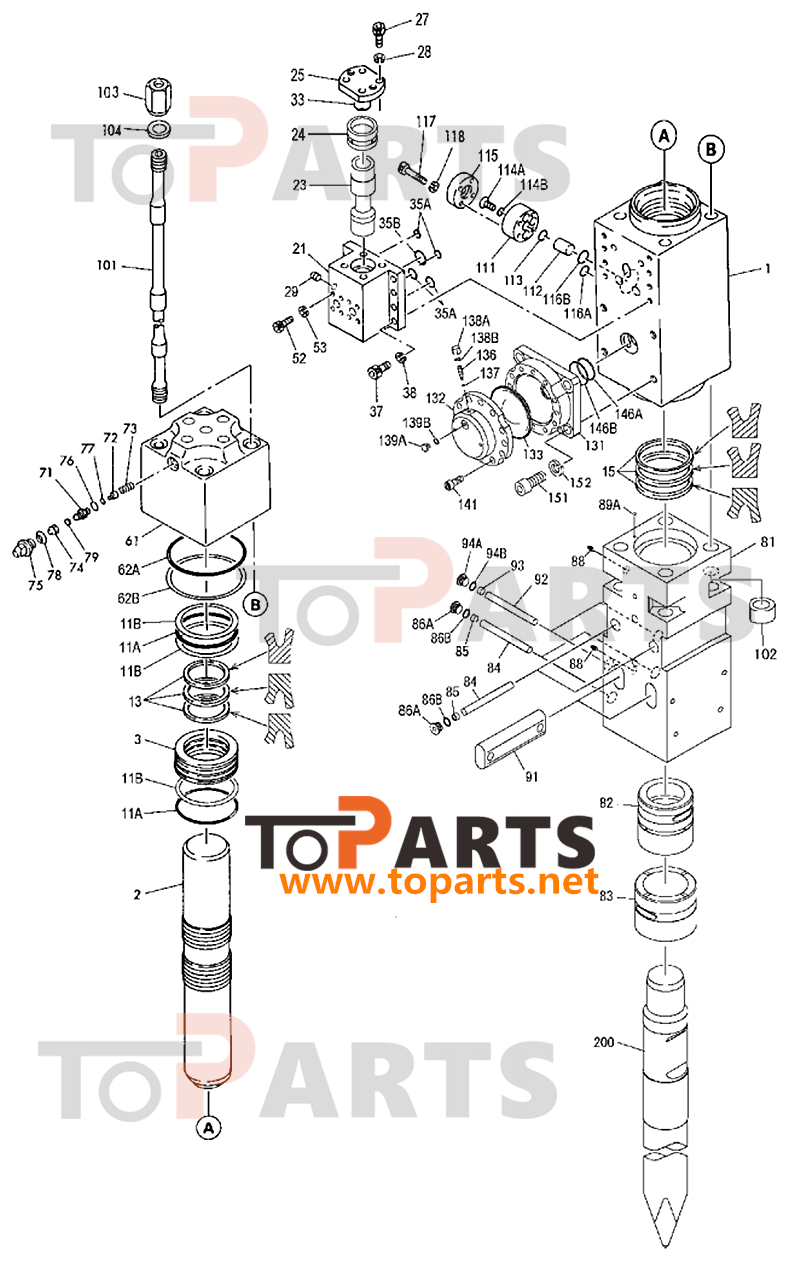

Parts list
|
Ltem No |
Product Name |
Q'ty |
Part No |
|
1 |
Cylinder |
1 |
15351010 |
|
2 |
Piston |
1 |
21424090 |
|
3 |
Cylinder Sleeve |
1 |
21424011 |
|
|
Seal Kit (#1) |
1 |
153510SK |
|
11A |
Cylinder Sleeve O-Ring |
2 |
E1022165 |
|
11B |
Back-Up Ring |
3 |
E2122165 |
|
13 |
Sleeve U-packing |
3 |
31424012 |
|
15 |
Cylinder U-packing |
3 |
31420013 |
|
19A |
Flange Plug 1/8 |
2 |
K10503 |
|
19B |
O-Rrig P8B |
2 |
E1012008 |
|
19C |
Flange Plug 3/8 |
4 |
K10509 |
|
19D |
O-Rrig P14B |
4 |
E1012014 |
|
19E |
Flange Plug 1 |
2 |
K10525 |
|
19F |
O-Rrig P29B |
2 |
E1012029 |
|
|
Valve Box Ass'y(#2) |
1 |
21424150X |
|
0 |
Valve Box O-Ring Kit(#3) |
1 |
312B-VBOK |
|
21 |
Valve Box |
1 |
21424150 |
|
23 |
Valve |
1 |
21424160 |
|
24 |
Valve Box Sleeve |
1 |
21424151 |
|
25 |
Valve Cap |
1 |
21424161 |
|
27 |
Valve Cap Bolt |
4 |
A030A4549 |
|
28 |
Valve Cap Bolt Washer |
4 |
C810A020 |
|
29 |
Plug |
1 |
100109065 |
|
33 |
Valve Cap O-Ring |
1 |
E1022065 |
|
35A |
Valve Box O-Ring |
4 |
E1012039 |
|
35B |
Valve Box O-Ring |
1 |
E1022055 |
|
37 |
Valve Cap Bolt |
8 |
A030A4569 |
|
38 |
Valve Cap Bolt Washer |
8 |
C810A020 |
|
39A |
Flange Plug 3/8 |
2 |
K10509 |
|
39B |
O-Rrig P14B |
2 |
E1012014 |
|
39C |
Flange Plug 1/2 |
5 |
K10512 |
|
39D |
O-Rrig P18B |
5 |
E1012018 |
|
39E |
Flange Plug 1 |
1 |
K10525 |
|
39F |
O-Rrig P29B |
1 |
E1012029 |
|
52 |
Clamp Bolt |
8 |
A030A3699 |
|
53 |
Clamp Bolt Washer |
8 |
C810A016 |
|
61 |
Back Cap |
1 |
15352010 |
|
62A |
Back Cap O-Ring |
1 |
E1022200 |
|
62B |
Back Cap Back-Up Ring |
1 |
E2123200 |
|
69A |
Flang Plug |
1 |
K10519 |
|
69B |
O-Ring |
1 |
E10120224 |
|
|
Gas Valve Body Ass'y(#4) |
1 |
21350350X |
|
71 |
Gas Valve Body |
1 |
21350350 |
|
72 |
Gas Valve |
1 |
21350351 |
|
73 |
Spring |
1 |
21321352 |
|
74 |
Gas Cap |
1 |
21320353 |
|
75 |
Cover Cap |
1 |
21320354 |
|
76 |
Gas Valve Body O-Ring |
1 |
E1012016 |
|
77 |
Gas Valve O-Ring |
1 |
E1161008 |
|
78 |
Cover Cap Washer |
1 |
21320355 |
|
79 |
Gas Cap Packing |
1 |
21350356 |
|
|
Front Cap Ass'y(#5) |
1 |
15354000 |
|
81 |
Front Cap |
1 |
15354010 |
|
82 |
Shank Bushing |
1 |
15354110 |
|
83 |
Front Cap Bushing |
1 |
15404210 |
|
84 |
Shaft 20×200 |
4 |
101120200 |
|
85 |
Shaft Retainer 20 |
4 |
15204122 |
|
86A |
Flange Plug GPF3/4 |
4 |
K10519 |
|
86B |
O-Ring P22.4B |
4 |
E10120224 |
|
88 |
Grease Nipple |
2 |
21310450 |
|
89A |
Plug GM1/8 |
2 |
K10103A |
|
89B |
Plug GM3/8 |
2 |
K10109A |
|
|
Chisel Set Pin Ass'y(#6) |
1 |
15404300 |
|
91 |
Chisel Set Pin |
2 |
15404310 |
|
92 |
Shaft 20X200 |
2 |
101120200 |
|
93 |
Shaft Retainer 20 |
2 |
15204122 |
|
94A |
Plug |
2 |
15204123 |
|
94B |
O-Ring P22.4B |
2 |
E10120224 |
|
|
Side Rod Ass'y(#7) |
4 |
15322500 |
|
101 |
Side Rod |
4 |
15322510 |
|
102 |
Side Rod Front Nut |
4 |
21422031 |
|
103 |
Back Nut |
4 |
15322530 |
|
104 |
Back Nut Washer |
4 |
15322531 |
|
|
Adjuster Case Ass'y(#8) |
1 |
21382100X |
|
|
Adjuster Case O-Ring(#9) |
1 |
3082AK0K |
|
111 |
Adjuster Case |
1 |
21382111 |
|
112 |
Adjuster |
1 |
21382110 |
|
113 |
Adjuster O-Ring |
1 |
E1162114 |
|
114A |
Screw |
1 |
A440A2369 |
|
114B |
Adjuster Screw O-Ring |
1 |
E1162114 |
|
115 |
Adjuster Cover |
1 |
21381112 |
|
116A |
Adjuster Case O-Ring |
4 |
E1162113 |
|
116B |
Adjuster Case O-Ring |
1 |
E1162212 |
|
117 |
Adjuster Case Set Bolt |
4 |
A030A2429 |
|
118 |
Bolt Washer |
4 |
C810A010 |
|
119A |
Plug |
2 |
K10402 |
|
|
Accumulator Ass'y(#10) |
1 |
15401400 |
|
131 |
Accumulator Body |
1 |
15401410 |
|
132 |
Accumulator Cover |
1 |
15401421 |
|
133 |
Accumulator Diaphragm |
1 |
154014311 |
|
136 |
Gas Charging Valve |
1 |
15401442 |
|
137 |
O-Ring |
1 |
E1012005 |
|
138A |
Cover Cap |
1 |
15401446 |
|
138B |
Accumulator O-Ring |
1 |
E1012014 |
|
139A |
Plug |
1 |
15401448 |
|
139B |
Accumulator O-Ring |
1 |
E1012014 |
|
141 |
Accumulator Set Screw |
12 |
A030A4139 |
|
146A |
Accumulater O-Ring |
1 |
E1162231 |
|
146B |
Back-Up Ring |
1 |
31380253 |
|
151 |
Accumulator Set Bolt |
4 |
21381251 |
|
152 |
Bolt Washer |
4 |
C613A027 |
|
200 |
Point Chisel |
1 |
154050120 |
|
200 |
Flat End Chisel |
1 |
154050220 |
Product Description

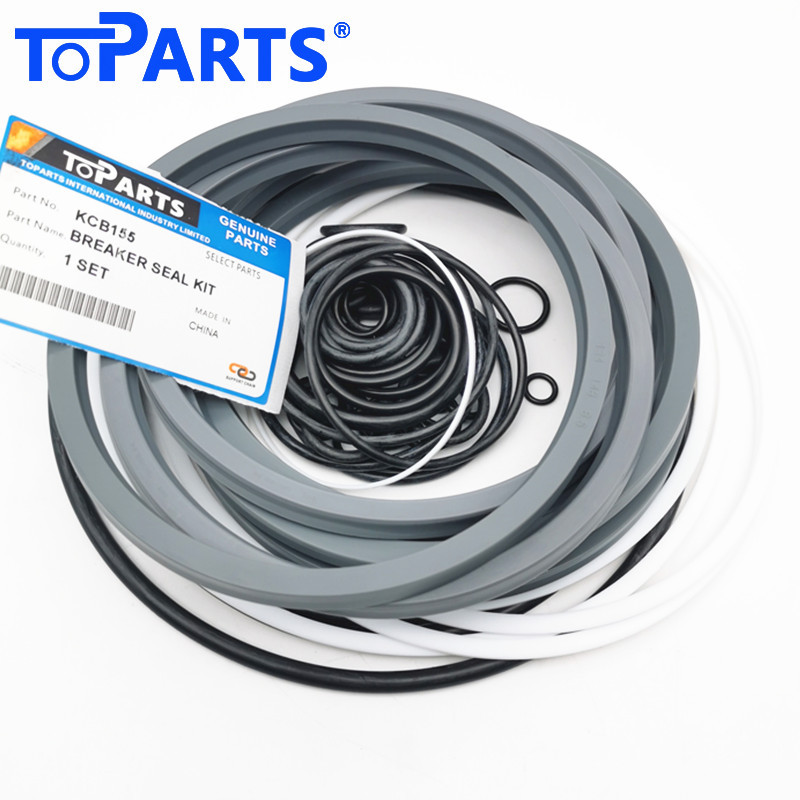

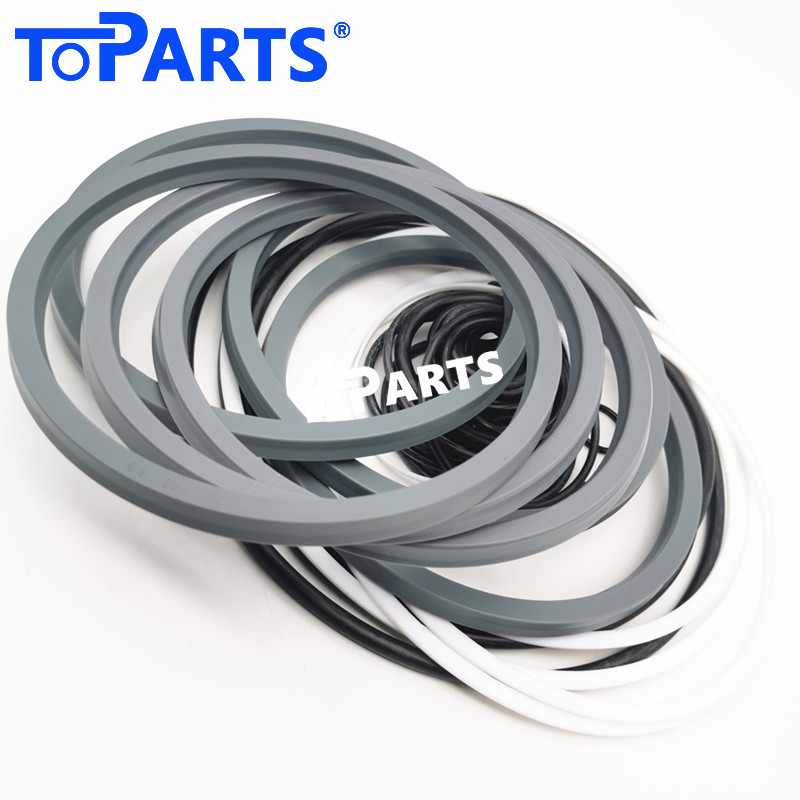

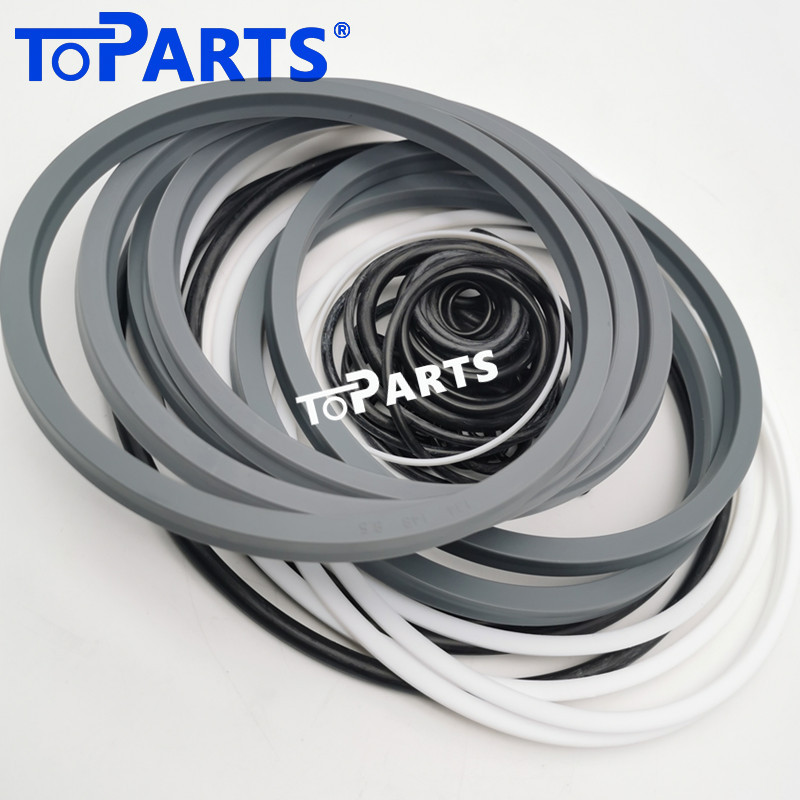

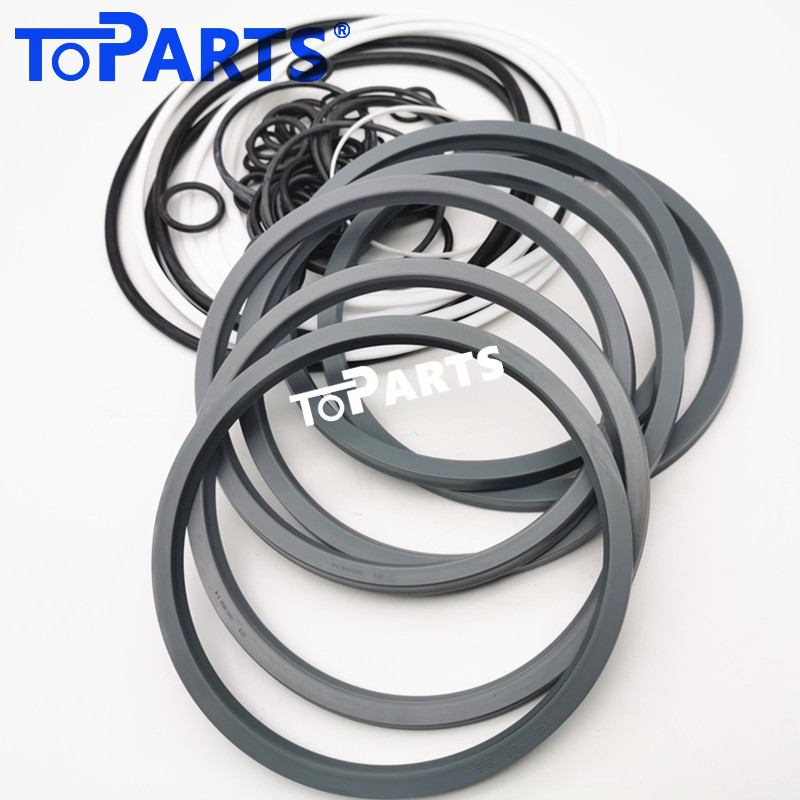

Premium 153510SK Hydraulic Breaker Service Repair Kit for Komatsu KB155
Maintain the hard-hitting efficiency and operational uptime of your Komatsu KB155 hydraulic rock hammer with the 153510SK professional service repair kit. Engineered for 15 to 22-ton class excavators, the KB155 requires superior sealing integrity to withstand continuous high-pressure cycles during tough rock excavation, concrete demolition, and trenching jobs.
At Toparts, we manufacture our Komatsu-compatible kits using advanced Polyurethane (PU) and NBR formulations. These industrial-grade materials ensure a precision fit, preventing critical oil blow-by and protecting your heavy equipment investment from premature wear.
Product Highlights:
100% Precision Match: Specifically engineered to replace Komatsu Part Number 153510SK, guaranteeing a seamless, zero-gap installation on KB155 hammers.
Industrial-Grade Durability: Forged from premium PU with high tensile strength and tear resistance to handle the high-frequency vibrations of Komatsu demolition attachments.
Restore Impact Energy: Effectively seals both gas and oil chambers, preventing nitrogen leakage and fluid bypass to restore your hammer's original factory hitting power.
Excellent Thermal Stability: Formulated to resist hardening and extrusion, maintaining optimal elasticity even during continuous operation in hot climates or deep quarries.
Complete Overhaul Set: Includes all critical rod seals, buffer seals, dust wipers, and specialized O-rings required for a professional-level cylinder rebuild.
Technical Specifications:
Brand Compatibility: Komatsu
Hammer Model: KB155
Part Number (P/N): 153510SK
Component Type: Hydraulic Breaker / Rock Hammer Service Kit
Material: Premium PU (P6000), NBR, PTFE + Bronze
Excavator Class: 15.0 - 22.0 Ton
Condition: 100% Brand New Industrial-Grade AftermarketTag:Komatsu Excavator Cylinder Seal Kits,Furukawa F22 Breaker Seal Kit,Furukawa F35 Breaker Seal Kit
