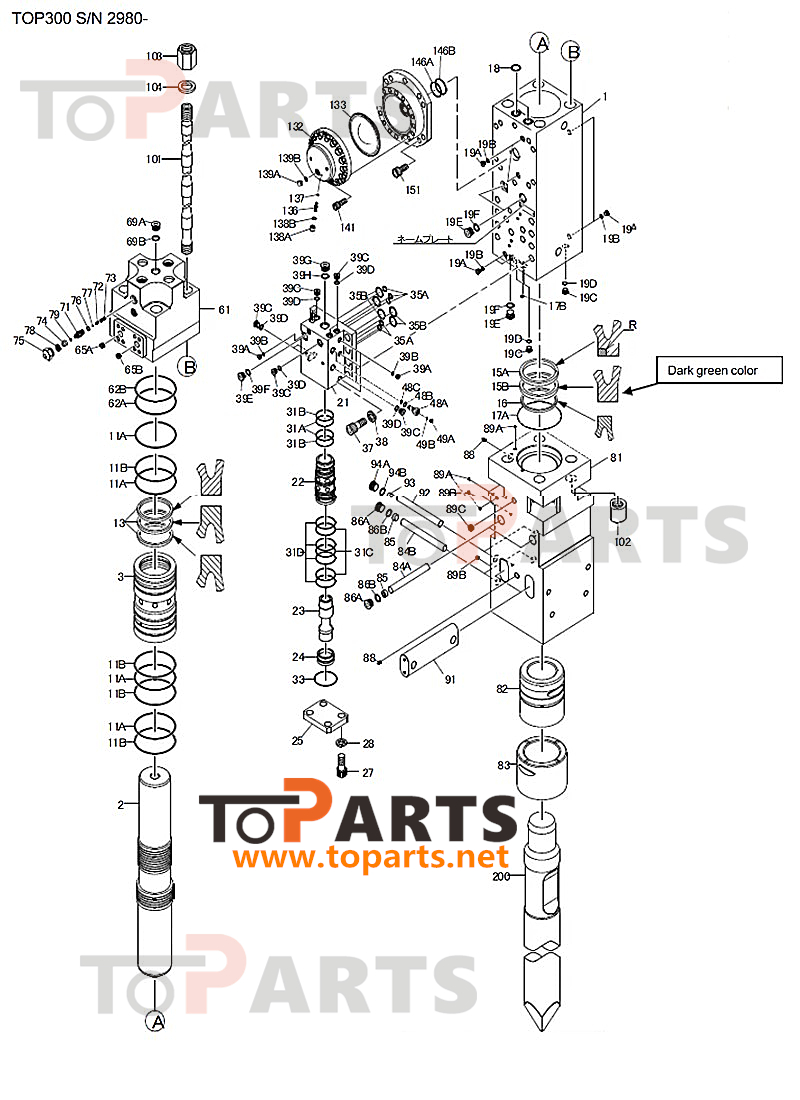

Parts list
|
No. |
Part No. |
Part Name |
Qty |
No. |
Part No. |
Part Name |
C'ty |
|
1 |
156510101 |
Cylinder |
1 |
74 |
21320353 |
Gas cap |
1 |
|
2 |
15651020 |
Piston |
1 |
75 |
21320354 |
Cover cap |
1 |
|
3 |
15651030 |
Cylinder sleeve |
1 |
76 |
E1012016 |
O-ring |
1 |
|
11A |
E1022190 |
O-ring |
4 |
77 |
E1161008 |
O-ring |
1 |
|
11B |
E2122190 |
Back-up ring |
4 |
78 |
21320355 |
Cover cap washer |
1 |
|
13 |
10230150 |
U-packing |
3 |
79 |
21350356 |
Gas cap packing |
1 |
|
15A |
102501601 |
U-packing |
1 |
81 |
156540101 |
Front cap |
1 |
|
15B |
9E3B2160 |
U-packing |
1 |
82 |
15654110 |
Shank bushing |
1 |
|
16 |
10230160E |
U-packing |
1 |
83 |
15654210 |
Front cap bushing |
1 |
|
17A |
E1131210 |
O-ring |
1 |
84 |
101125230 |
Shaft(25x230) |
4 |
|
17B |
E1012012 |
O-ring |
1 |
85 |
15654122 |
Shaft retainer(25) |
4 |
|
18 |
E1110039 |
O-ring |
2 |
86A |
K10525 |
Flange plug(GPF1) |
4 |
|
19A |
K10509 |
Flange plug(GPF3/8) |
6 |
86B |
E1012029 |
O-ring |
4 |
|
19B |
E1012014 |
O-ring |
6 |
88 |
21310450 |
Grease nipple |
2 |
|
19C |
K10512 |
Flange plug(GPF1/2) |
3 |
89A |
K10103A |
Plug(GM1/8) |
4 |
|
19D |
E1012018 |
O-ring |
3 |
89B |
K10106A |
Plug(GM1/4) |
1 |
|
19E |
K10525 |
Flange plug(GPF1) |
3 |
89C |
K10109A |
Plug(GM3/8) |
1 |
|
19F |
E1012029 |
O-ring |
3 |
91 |
15654310 |
Chisel set pin |
2 |
|
21 |
156530102 |
Valve box |
1 |
92 |
101125230 |
Shaft(25×230) |
2 |
|
22 |
15653020 |
Valve box liner |
1 |
93 |
15654122 |
Shaft retainer(25) |
2 |
|
23 |
15653030 |
Valve |
1 |
94A |
K10525 |
Flange plug(GPF1) |
2 |
|
24 |
15653040 |
Valve box sleeve |
1 |
94B |
E1012029 |
O-ring |
2 |
|
25 |
15653050 |
Valve cap |
1 |
101 |
15652510 |
Side rod |
4 |
|
27 |
A030A6079 |
Cap screw(M30x70) |
4 |
102 |
15652520 |
Side rod front nut |
4 |
|
28 |
C810A030 |
Spring washer(M30C) |
4 |
103 |
15652530 |
Back nut |
4 |
|
|
|
|
|
104 |
15652531 |
Back nut washer |
4 |
|
31A |
E1022080 |
O-ring |
2 |
131 |
156514101 |
Accumulator body |
1 |
|
31B |
E2122080 |
Back-up ring |
2 |
132 |
156514212 |
Accumulator cover |
1 |
|
31C |
E1022090 |
O-ring |
3 |
133 |
156514311 |
Bladder |
1 |
|
31D |
E2122090 |
Back-up ring |
4 |
136 |
15401442 |
Gas charging valve body |
1 |
|
33 |
E1022105 |
O-ring |
1 |
137 |
E1012005 |
O-ring |
1 |
|
35A |
E1012022A |
O-ring |
5 |
138A |
15401446 |
Cap |
1 |
|
35B |
E1012042 |
O-ring |
5 |
138B |
E1012014 |
O-ring |
1 |
|
37 |
A030A6079 |
Cap screw(M30x70) |
8 |
139A |
15401448 |
Plug |
1 |
|
38 |
C810A030 |
Spring washer(M30C) |
8 |
139B |
E1012014 |
O-ring |
1 |
|
39A |
K10506 |
Flange plug(GPF1/4) |
4 |
141 |
A030A4579 |
Cap screw(M20x55) |
16 |
|
39B |
E1012011 |
O-ring |
4 |
146A |
E1162231 |
O-ring |
1 |
|
39C |
K10512 |
Flange plug(GPF1/2) |
8 |
146B |
31380253 |
Accumulator back-up ring |
1 |
|
39D |
E1012018 |
O-ring |
8 |
151 |
21480251 |
Accumulator set bolt |
10 |
|
39E |
K10519 |
Flange plug(GPF3/4) |
1 |
200 |
TP300-1400P |
Moil Point |
1 |
|
39F |
E10120224 |
O-ring |
1 |
200 |
TP300-1400E |
Blunt Tool |
1 |
|
39G |
K10525 |
Flange plug(GPF1) |
1 |
200 |
TP300-1400FX |
Cross cut chisel |
1 |
|
39H |
E1012029 |
O-ring(P29B) |
1 |
200 |
TP300-1400FY |
In line chisel |
1 |
|
48A |
15653161 |
Control shaft |
1 |
200 |
TP300-1400CP |
Core Point |
1 |
|
48B |
E1012018 |
O-ring |
1 |
|
|
|
|
|
48C |
E11100125 |
O-ring |
1 |
|
|
|
|
|
49A |
K10503 |
Flange plug 1/8 |
1 |
|
156510SKV6 |
Seal kit |
1 |
|
49B |
E1012008 |
O-ring |
1 |
|
156530002 |
Valve box assy. |
1 |
|
52 |
A030A3699 |
Cap screw(M16x35) |
8 |
|
156530SK1 |
Valve box O-ring kit |
1 |
|
53 |
C810A016 |
Spring washer(M16C) |
8 |
|
21350350X |
Gas valve body assy |
1 |
|
61 |
15652010 |
Back cap |
1 |
|
156540001 |
Front cap assy |
1 |
|
62A |
E1022190 |
O-ring |
1 |
|
15654300 |
Chisel set pin assy |
1 |
|
62B |
E2122190 |
Back-up ring |
1 |
|
15652500 |
Side rod assy |
4 |
|
65A |
100119120 |
Flow control plug |
1 |
|
156514002 |
Accumulator assy |
1 |
|
65B |
100119130 |
Flow control plug |
1 |
|
15653160 |
Control shaft assy |
1 |

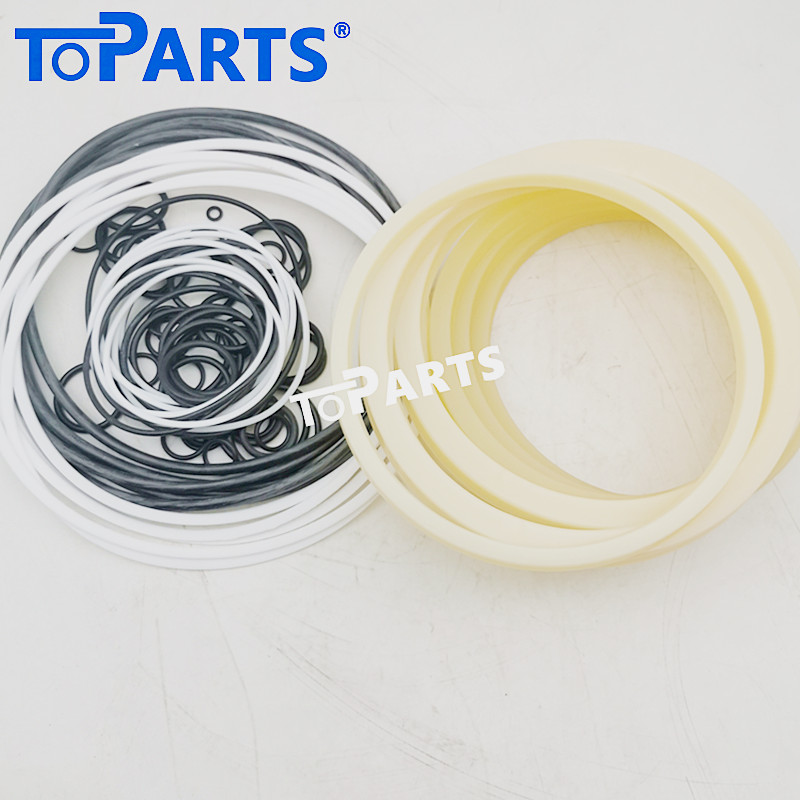

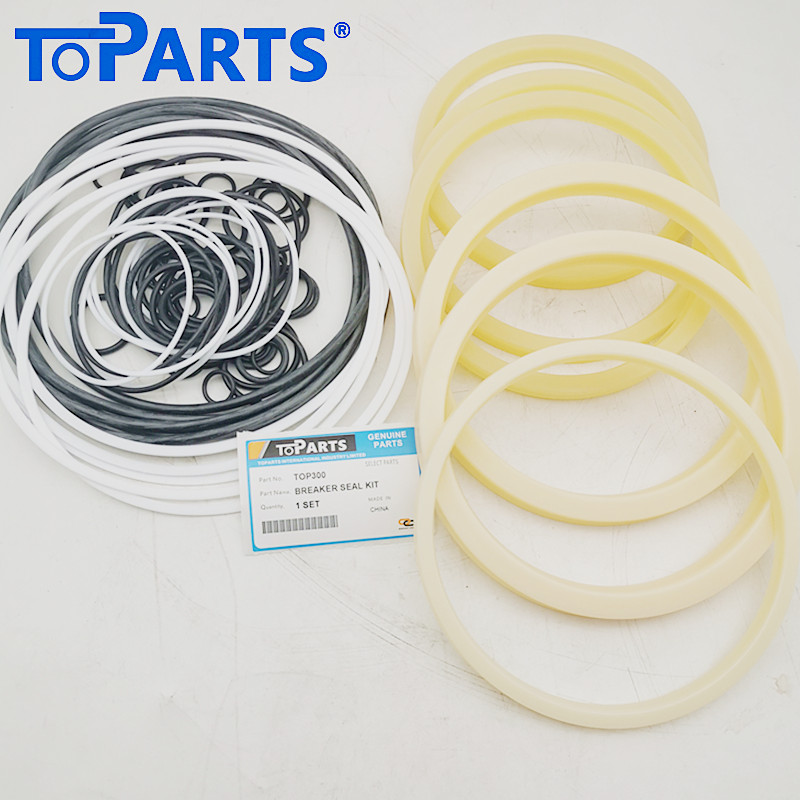

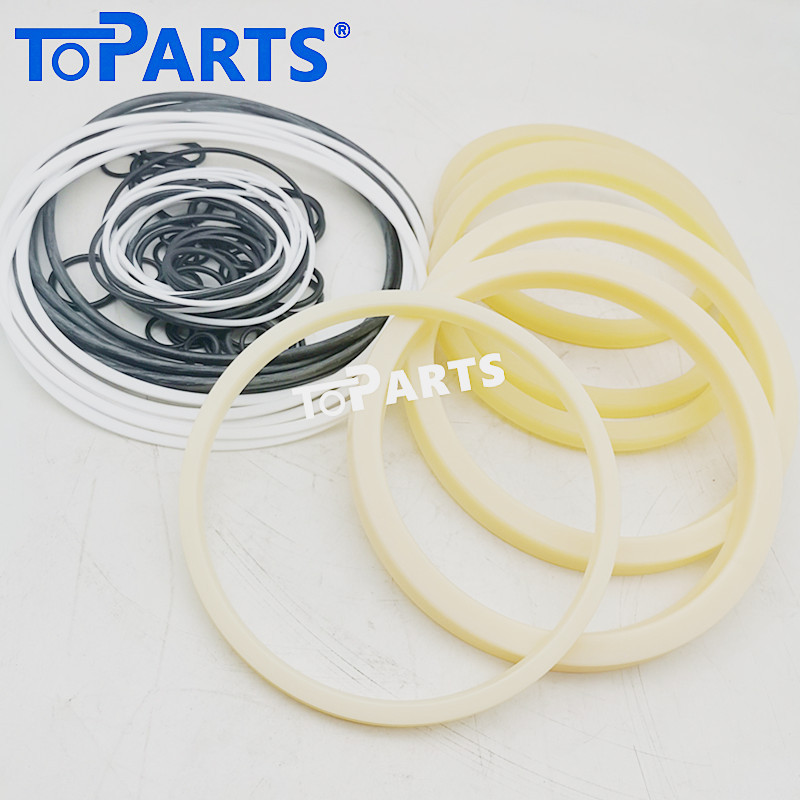

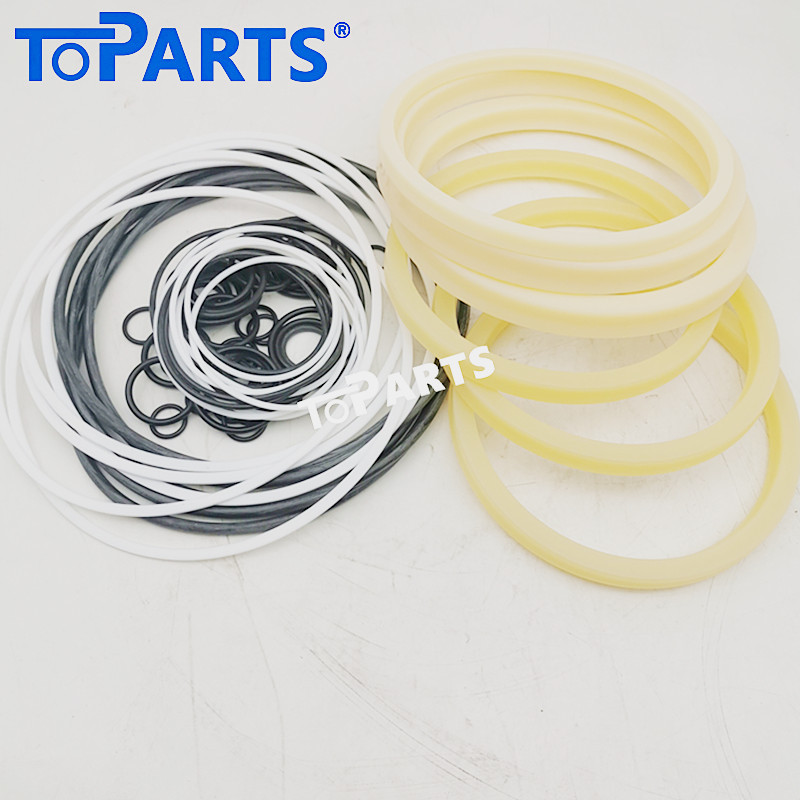

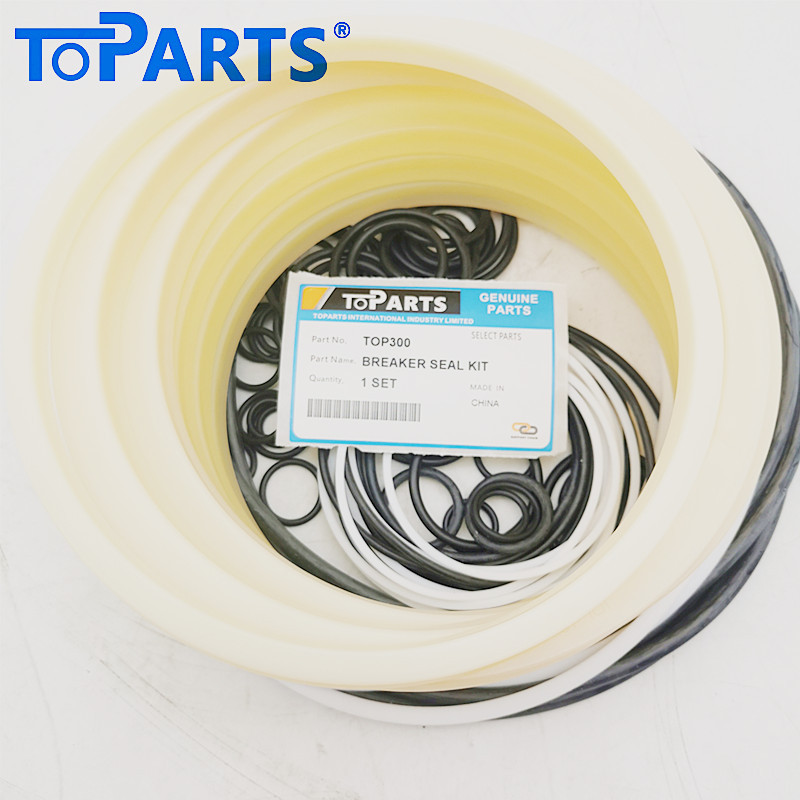

Toparts 156510SKV6 Hydraulic Breaker Seal Kit for Okada TOP300
