Parts list
|
NO. |
Qty |
Part Number |
Product Name |
|
|
|
2441U994F2 |
MOTOR,BTW LK01-01001&LK01-01036 |
|
1 |
1 |
NSS |
NOT SERVICED SEPARATELYHUB |
|
2 |
1 |
NSS |
NOT SERVICED SEPARATELYSPINDLE |
|
3 |
1 |
2441U995S3 |
PLANETARY CARRIER SHAFT CARRIER |
|
4 |
1 |
NSS |
NOT SERVICED SEPARATELYGEAR,RING |
|
5 |
1 |
2441U99555 |
RING GEAR |
|
6 |
3 |
2441U995S6 |
GEAR |
|
7 |
1 |
2441U995S7 |
SUN GEAR |
|
8 |
1 |
NSS |
NOT SERVICED SEPARATELY GEAR,COUPLING |
|
9 |
3 |
2441U99559 |
SHAFT |
|
10 |
1 |
2441U750S10 |
RING PIECE.DISTANCE |
|
12 |
1 |
2441U995512 |
SPACER PIECE DISTANCE |
|
13 |
1 |
2441U995513 |
COVER |
|
14 |
6 |
2441U995514 |
COLLAR CLAMP |
|
15 |
1 |
2441U995515 |
RING |
|
17 |
10 |
2441U995517 |
PIN |
|
19 |
1 |
2441U995519 |
COUPLING |
|
20 |
2 |
2441U995S20 |
SEALKIT |
|
23 |
1 |
2441U995523 |
SEALRETAINER |
|
24 |
2 |
2441U995524 |
BALL BEARING |
|
25 |
6 |
2441U995525 |
ROLLER BEARING |
|
27 |
10 |
2441U995527 |
PIN |
|
29 |
1 |
ZD12G22000 |
0-RING |
|
30 |
3 |
2441U829533 |
PLUG |
|
31 |
1 |
2441U750531 |
GASKET |
|
32 |
20 |
ZS16C12050 |
SCREW M12x1.75x50mm |
|
33 |
20 |
2441U829536 |
WASHER |
|
34 |
3 |
2441U995534 |
PIN |
|
35 |
10 |
ZS23C16030 |
SCREW M16x2.0x30mm |
|
36 |
1 |
2441U995536 |
BALL |
|
37 |
1 |
ZD12G28000 |
0-RING |
|
39 |
3 |
ZD12P00800 |
0-RING |
|
40 |
1 |
2441U995540 |
0-RING |
|
101 |
1 |
NSS |
NOT SERVICED SEPARATELYFLANGE |
|
102 |
1 |
2441U9955102 |
SHAFT |
|
103 |
1 |
2441U994S103 |
PLATE |
|
104 |
1 |
2441U9955104 |
CYLINDER |
|
105 |
1 |
NSS |
NOT SERVICED SEPARATELYPISTON |
|
106 |
1 |
NSS |
NOT SERVICED SEPARATELYSHOE |
|
107 |
1 |
2441U9955107 |
RETAINING PLATE |
|
108 |
1 |
2441U9955108 |
BALL BEARING |
|
109 |
1 |
2441U9955109 |
PLATE |
|
110 |
2 |
2441U9955110 |
WASHER |
|
112 |
1 |
2441U9955112 |
KIT |
|
113 |
12 |
2441U9955113 |
SPRING |
|
114 |
1 |
2441U9955114 |
SPRING |
|
115 |
2 |
2441U9955115 |
PLATE |
|
116 |
2 |
2441U9955116 |
PLATE |
|
118 |
1 |
2441U496S44 |
SPRING SEAT |
|
119 |
1 |
2441U9955119 |
VALVE |
|
119 |
1 |
2441U995S119 |
VALVE |
|
20 |
1 |
2441U496S46 |
SPRING |
|
121 |
2 |
2441U995S121 |
PLUG |
|
122 |
1 |
2441U496S53 |
RING |
|
123 |
1 |
NSS |
NOT SERVICED SEPARATELYSPOOL |
|
124 |
3 |
2441U496S48 |
PLUG |
|
125 |
2 |
2441U995S125 |
POPPET |
|
26 |
2 |
2441U496S50 |
PLUG |
|
127 |
2 |
2441U496S51 |
HYDRAULICVALVE |
|
28 |
2 |
2441U496S52 |
SPRING |
|
130 |
2 |
2441U496S54 |
SPRING |
|
32 |
1 |
2441U995S132 |
DIL SEAL |
|
133 |
1 |
ZD12P00900 |
0-RING |
|
35 |
1 |
ZD12P18000 |
0-RING O-RING |
|
136 |
1 |
NSS |
NOT SERVICED SEPARATELYBODY |
|
37 |
1 |
NSS |
NOT SERVICED SEPARATELYSPOOL |
|
138 |
3 |
ZD12P01800 |
0-RING |
|
39 |
1 |
ZD12P19500 |
0-RING |
|
141 |
2 |
2441U995S141 |
PIN |
|
142 |
2 |
2441U995S142 |
PIN |
|
143 |
9 |
ZS23C16040 |
SCREW M16x2.0x40mm |
|
145 |
1 |
ZR26X06200 |
SNAPRING |
|
147 |
1 |
ZD85P19500 |
BACK-UP RING |
|
148 |
1 |
ZD85P18000 |
BACK-UP RING |
|
149 |
1 |
2441U9955149 |
ROLLER BEARING |
|
150 |
1 |
2441U9955150 |
BALL BEARING |
|
151 |
6 |
2441U8295151 |
BEARING |
|
153 |
1 |
2441U9955153 |
THRUST PLATE |
|
154 |
5 |
2441U8295154 |
EXPANDER |
|
155 |
3 |
ZD12P03200 |
0-RING |
|
156 |
4 |
ZD12P02000 |
0-RING |
|
157 |
1 |
2441U9955157 |
STOP |
|
158 |
1 |
2441U9955158 |
SPRING |
|
159 |
1 |
2441U9955159 |
SPRING |
|
161 |
1 |
NSS |
NOT SERVICED SEPARATELYPISTON |
|
162 |
1 |
NSS |
NOT SERVICED SEPARATELYSHOE |
|
167 |
2 |
2441U9955167 |
BALL |
|
168 |
2 |
2441U815S26 |
BALL |
|
170 |
4 |
ZS23C08065 |
CAP Screw--M08x1.25×65mm |
|
172 |
1 |
NSS |
NOT SERVICED SEPARATELY PIN,SPRING |
|
173 |
1 |
NSS |
NOT SERVICED SEPARATELYVALVE |
|
174 |
1 |
NSS |
NOT SERVICED SEPARATELYSPRING |
|
175 |
2 |
NSS |
NOT SERVICED SEPARATELYBALL |
|
176 |
2 |
NSS |
NOT SERVICED SEPARATELYEXPANDER |
|
177 |
1 |
2441U9955177 |
SPRING |
|
178 |
1 |
2441U9955178 |
PLUG |
|
186 |
1 |
2441U9955201 |
SPOOL |
|
187 |
1 |
2441U9955202 |
PLUG |

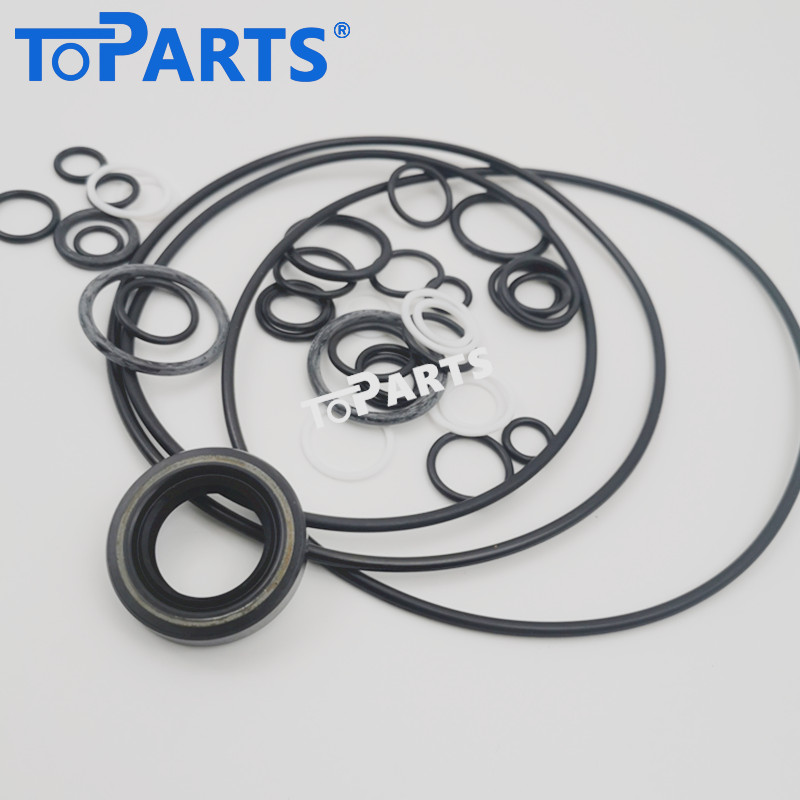

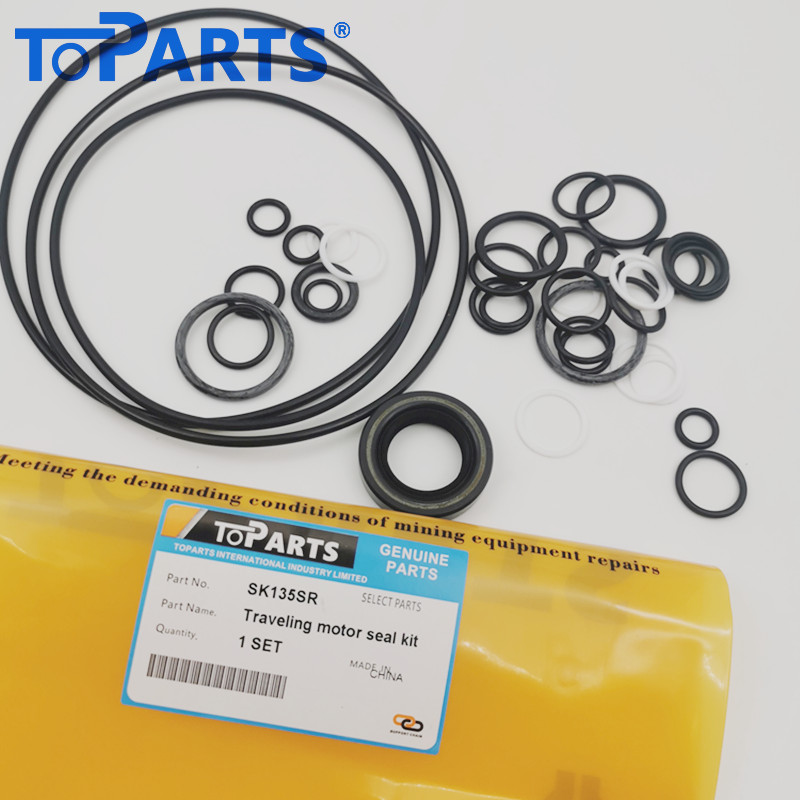

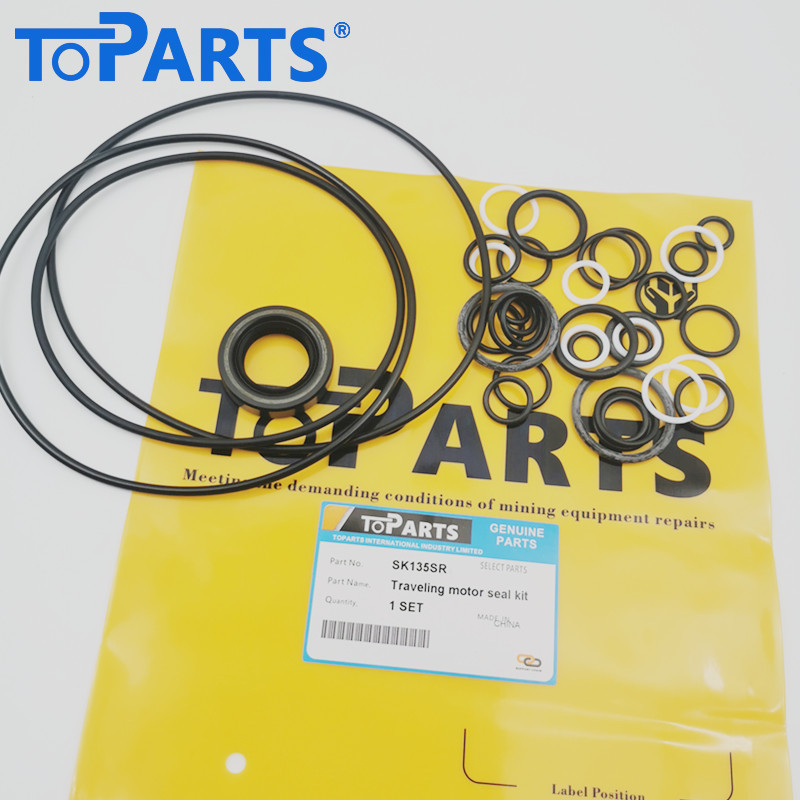

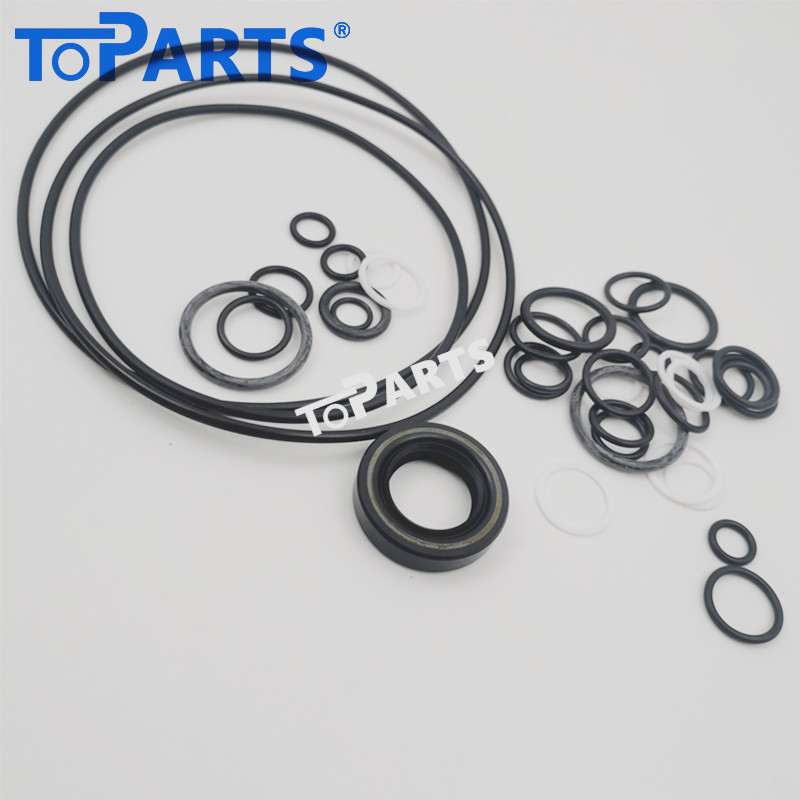

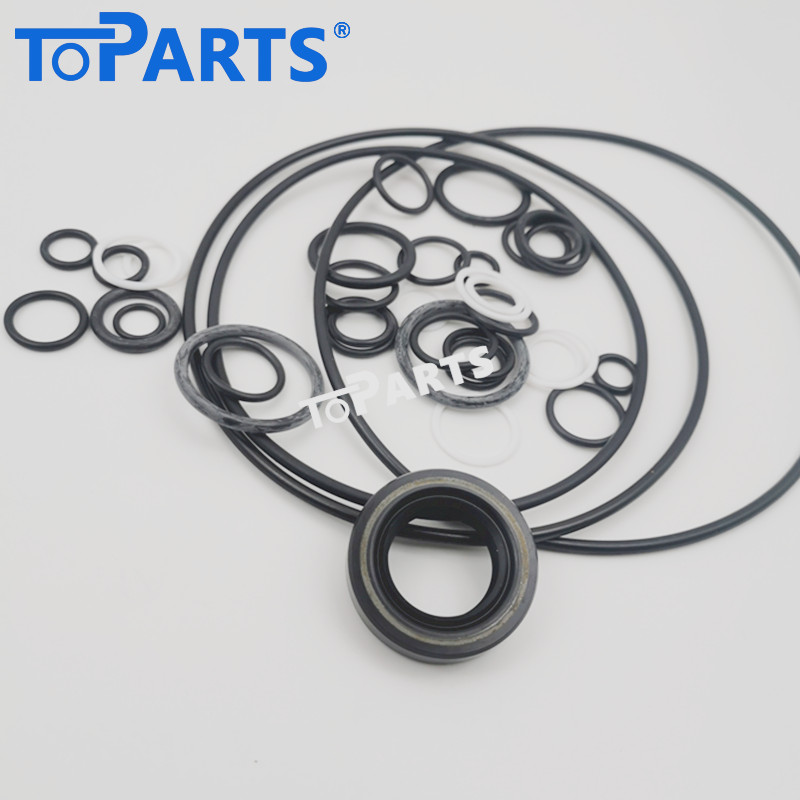

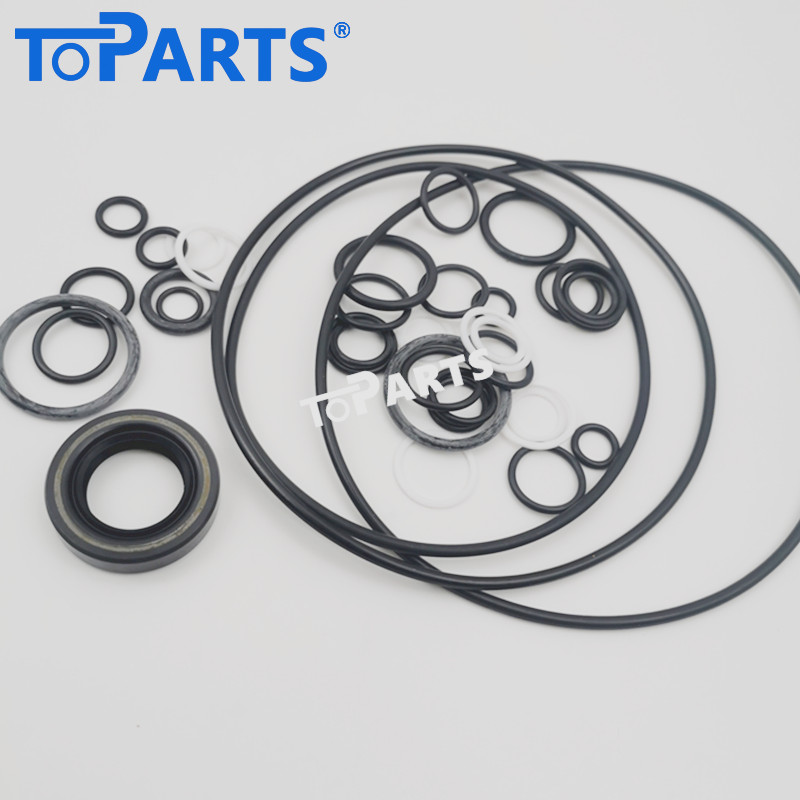

Toparts 2441U995S20 Travel Motor Seal Kit for Kobelco SK135SR
Restore the tracking power and reliability of your excavator with the Toparts 2441U995S20 Travel Motor Seal Kit. Specifically engineered for the Kobelco SK135SR short-radius excavator, this high-performance kit is the professional solution for servicing travel motors with part numbers YX15V00003R400, 2441U994F2, and YX15V00003F1.
Precision Sealing for High-Torque Final Drives
The travel motor is the heart of your excavator's undercarriage mobility. It operates under immense torque and extreme hydraulic pressure while being exposed to dirt, mud, and debris. Any internal seal failure can result in lost travel speed, poor climbing ability, or costly external leaks. Toparts has developed this seal kit using advanced material technology to ensure your SK135SR maintains maximum traction and smooth synchronization between tracks.
Key Features and Benefits:
OEM-Standard Compatibility: Perfectly matched to Kobelco part numbers 2441U995S20 and YX15V00003R400, ensuring an exact fit for the final drive units.
Premium Wear Materials: Features high-grade NBR (Nitrile) and Viton (FKM) O-rings, alongside specialized mechanical seals designed to resist high-pressure hydraulic oil and thermal degradation.
Leak-Free Integrity: Engineered to prevent oil migration between the hydraulic motor and the planetary gear box, protecting the entire final drive assembly from damage.
Heavy-Duty Dust Protection: Includes specialized seals designed to keep environmental contaminants out of the precision motor components, extending the life of your undercarriage.
Complete Repair Solution: This kit provides all necessary O-rings, oil seals, and backup rings required for a professional-grade overhaul of the travel motor.
Optimized for SK135SR: Designed specifically for the high-frequency movements and compact requirements of the short-radius SK135SR series.
Product Specifications:
Feature:Details
Part Number:2441U995S20 / YX15V00003R400
Compatible Motor P/N:2441U994F2 / YX15V00003F1
Compatible Model:Kobelco SK135SR / SK135SR-1E / SK135SRL
Component Type:Travel Motor / Final Drive Seal Kit
Material Grade:High-Spec NBR, Viton, and Reinforced Elastomers
Application:Undercarriage Mobility and Final Drive Service
Manufacturer:Toparts
Why Trust Toparts?
Toparts is a global leader in providing high-durability sealing solutions for the earthmoving and construction industries. We understand that for an excavator, downtime is lost revenue. Our travel motor seal kits are rigorously tested to withstand the punishing environments of modern job sites, offering the perfect balance of OEM quality and exceptional aftermarket value.
Would you like me to check the availability of the matching Swivel Joint (Center Joint) Seal Kit or the Track Adjuster Seal Kit for your Kobelco SK135SR to complete your maintenance?
