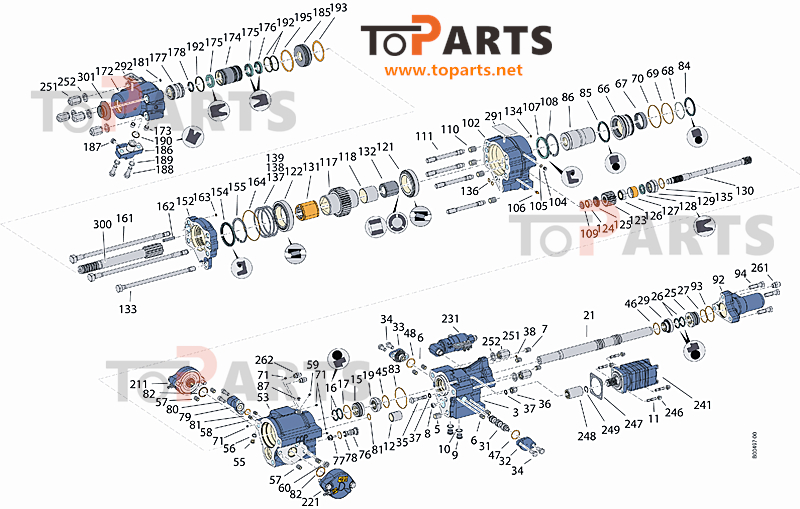

Parts list
|
NO |
Part no |
Qty |
Parts Name |
|
2 |
3115 1944 80 |
1 |
CYLINDER |
|
3 |
– |
1 |
CYLINDER |
|
5 |
0259 0311 00 |
1 |
THREAD INSERT |
|
6 |
0259 0011 00 |
4 |
THREAD INSERT |
|
7 |
0259 2061 00 |
3 |
THREAD INSERT |
|
8 |
3115 1825 00 |
1 |
PLUG |
|
9 |
0686 6447 04 |
2 |
PLUG |
|
10 |
0661 1034 00 |
2 |
SEAL WASHER |
|
11 |
3115 1165 00 |
4 |
STUD |
|
12 |
3115 2112 00 |
1 |
GUIDE |
|
13 |
3115 2766 80 |
1 |
SEAL HOUSE COMP |
|
15 |
– |
1 |
SEAL HOUSING |
|
16 |
3115 0970 00 |
2 |
SEAL KIT |
|
17 |
0663 6136 00 |
1 |
O-RING |
|
19 |
3115 5050 01 |
1 |
PISTON GUIDE |
|
21 |
3115 3635 00 |
1 |
PISTON |
|
24 |
3115 2772 80 |
1 |
SEAL HOUSE COMP |
|
25 |
– |
1 |
SEAL HOUSING |
|
26 |
3115 1156 00 |
2 |
SEAL KIT |
|
27 |
0663 6135 00 |
1 |
O-RING |
|
29 |
3115 1680 00 |
1 |
PISTON GUIDE |
|
31 |
3115 1765 00 |
1 |
VALVE PISTON |
|
32 |
3115 2077 03 |
1 |
VALVE COVER |
|
33 |
3115 2076 05 |
1 |
VALVE COVER |
|
34 |
0147 1438 03 |
4 |
SCREW, HEX HEAD |
|
35 |
3115 3291 00 |
1 |
REG. PLUG |
|
36 |
3115 3214 00 |
1 |
NUT |
|
37 |
3115 1697 00 |
2 |
SEAL WASHER |
|
38 |
3115 3245 00 |
1 |
SEAL RING |
|
45 |
0663 6134 01 |
1 |
O-RING |
|
46 |
0663 6134 01 |
1 |
O-RING |
|
47 |
0663 2133 01 |
1 |
O-RING |
|
102 |
3115 5035 81 |
1 |
GEAR HOUSING |
|
103 |
|
1 |
GEAR HOUSING |
|
104 |
0686 4201 03 |
1 |
PLUG |
|
105 |
0653 9038 00 |
1 |
GASKET |
|
106 |
0544 2162 00 |
1 |
GREASE NIPPLE |
|
107 |
0666 7188 01 |
1 |
RADIAL LIP SEAL |
|
108 |
0335 2169 00 |
1 |
CIRCLIP |
|
109 |
3115 0273 00 |
1 |
WASHER |
|
111 |
3115 3613 00 |
4 |
STUD |
|
116 |
3115 1732 81 |
1 |
ROT.CHUCK |
|
117 |
|
1 |
ROT.CHUCK |
|
118 |
3115 1881 00 |
1 |
BUSHING |
|
121 |
0509 0221 00 |
1 |
ROLLER BEARING |
|
122 |
0509 0223 00 |
1 |
ROLLER BEARING |
|
123 |
3115 0274 00 |
1 |
GEAR WHEEL |
|
124 |
0516 1504 01 |
1 |
NEEDLE BEARING |
|
125 |
3115 0823 00 |
1 |
WASHER |
|
126 |
0516 1538 00 |
1 |
NEEDLE BEARING |
|
127 |
3115 0824 00 |
1 |
SLEEVE |
|
128 |
0667 1206 00 |
1 |
SEAL |
|
129 |
3115 2742 00 |
1 |
GUIDE SLEEVE |
|
130 |
3115 0821 00 |
1 |
SHAFT |
|
131 |
3115 1582 00 |
1 |
DRIVER |
|
132 |
3115 2968 00 |
1 |
ROT.CH.BUSHING |
|
133 |
3115 1457 00 |
1 |
SIDE BOLT |
|
134 |
3115 3245 00 |
1 |
SEAL RING |
|
135 |
0663 2133 01 |
1 |
O-RING |
|
136 |
0663 2120 00 |
2 |
O-RING |
|
137 |
3115 0297 01 |
1 |
SHIM |
|
138 |
3115 0297 02 |
1 |
SHIM |
|
139 |
3115 0297 03 |
1 |
SHIM |
|
152 |
3115 5036 80 |
1 |
COVER COMPL. |
|
153 |
3115 5036 00 |
1 |
COVER |
|
154 |
0666 7190 01 |
1 |
RADIAL LIP SEAL |
|
155 |
0335 2173 00 |
1 |
CIRCLIP |
|
161 |
3115 5040 00 |
2 |
SIDE BOLT |
|
162 |
0102 0473 00 |
1 |
PIN |
|
163 |
3115 3245 00 |
1 |
SEAL RING |
|
164 |
0663 6151 00 |
1 |
O-RING |
|
171 |
3115 5042 80 |
1 |
FRONT PART COMP |
|
172 |
3115 5042 00 |
1 |
FRONT PART |
|
173 |
0259 0084 00 |
2 |
THREAD INSERT |
|
174 |
3115 5044 00 |
1 |
FLUSHING HEAD |
|
175 |
3115 2333 00 |
2 |
CUP SEAL |
|
176 |
3115 5190 00 |
1 |
CUP SEAL |
|
177 |
3115 5045 10 |
1 |
GUIDE |
|
178 |
3115 3024 00 |
1 |
WIPER |
|
181 |
3115 3245 00 |
1 |
SEAL RING |
|
185 |
3115 2122 00 |
1 |
STOP RING |
|
186 |
3115 5043 00 |
1 |
CONNECT. PLATE |
|
187 |
3115 1825 00 |
1 |
PLUG |
|
188 |
0147 1479 03 |
2 |
SCREW, HEX HEAD |
|
189 |
3315 0195 10 |
2 |
LOCK WASHER |
|
190 |
3115 3445 00 |
1 |
SEAL RING |
|
192 |
3115 3289 17 |
3 |
SEAL RING |
|
193 |
0663 2143 00 |
1 |
O-RING |
|
195 |
0663 2145 01 |
1 |
O-RING |
|
211 |
3115 3451 81 |
1 |
ACCUMULATOR |
|
221 |
3115 3511 81 |
1 |
ACCUMULATOR |
|
231 |
3115 2615 91 |
1 |
RETURN ACCUM. |
|
241 |
3115 3473 80 |
1 |
HYDRAULIC MOTOR |
|
241 |
3115 3473 81 |
1 |
HYDRAULIC MOTOR |
|
241 |
3115 3473 83 |
1 |
HYDRAULIC MOTOR |
|
241 |
3115 3473 85 |
1 |
HYDRAULIC MOTOR |
|
246 |
3115 3548 00 |
4 |
NUT |
|
247 |
3115 0327 00 |
1 |
GASKET |
|
248 |
3115 0277 00 |
1 |
COUPLING |
|
249 |
0335 2130 00 |
1 |
CIRCLIP |
|
251 |
3115 0286 00 |
6 |
DOME NUT |
|
252 |
3115 0287 00 |
6 |
WASHER |
|
261 |
0570 5005 00 |
1 |
STRAIGHT NIPPLE |
|
262 |
3176 6512 00 |
2 |
NIPPLE |
|
291 |
3115 3164 00 |
1 |
LABEL |
|
292 |
3115 5240 00 |
1 |
LABEL |
|
300 |
7490 5160 87 |
1 |
SHANK ADAPTER |
|
300 |
7490 5160 88 |
1 |
SHANK ADAPTER |
|
300 |
7490 5160 98 |
1 |
SHANK ADAPTER |
|
300 |
7490 5160 99 |
1 |
SHANK ADAPTER |
|
300 |
7490 5161 20 |
1 |
SHANK ADAPTER |
|
300 |
7490 5161 21 |
1 |
SHANK ADAPTER |
|
301 |
3115 2231 00 |
1 |
DRILL COLLAR PLUG |
|
0686 9250 26 |
2 |
PLUG |
|
|
0686 9250 27 |
2 |
NIPPLE SET |
|
|
3115 1603 91 |
1 |
OPTIONAL SET |
|
|
|
1 |
|
|
|
172 |
3115 5042 00 |
1 |
FRONT PART |
|
173 |
0259 0084 00 |
2 |
THREAD INSERT |
|
174 |
3115 5044 00 |
1 |
FLUSHING HEAD |
|
175 |
3115 2333 00 |
2 |
CUP SEAL |
|
176 |
3115 5190 00 |
1 |
CUP SEAL |
|
177 |
3115 5045 01 |
1 |
GUIDE |
|
178 |
3115 3024 00 |
1 |
WIPER |
|
181 |
3115 3245 00 |
1 |
SEAL RING |
|
185 |
3115 2122 00 |
1 |
STOP RING |
|
186 |
3115 5043 00 |
1 |
CONNECT. PLATE |
|
187 |
3115 1825 00 |
1 |
PLUG |
|
188 |
0147 1479 03 |
2 |
SCREW, HEX HEAD |
|
189 |
3315 0195 10 |
2 |
LOCK WASHER |
|
190 |
3115 3445 00 |
1 |
SEAL RING |
|
192 |
3115 3289 17 |
3 |
SEAL RING |
|
193 |
0663 2143 00 |
1 |
O-RING |
|
195 |
0663 2145 01 |
1 |
O-RING |
|
|

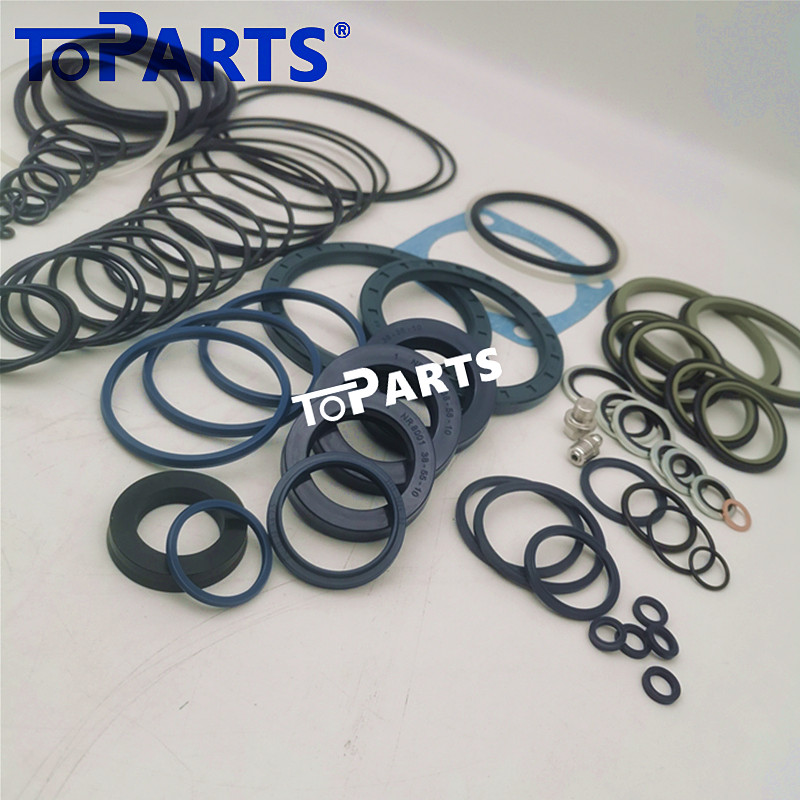

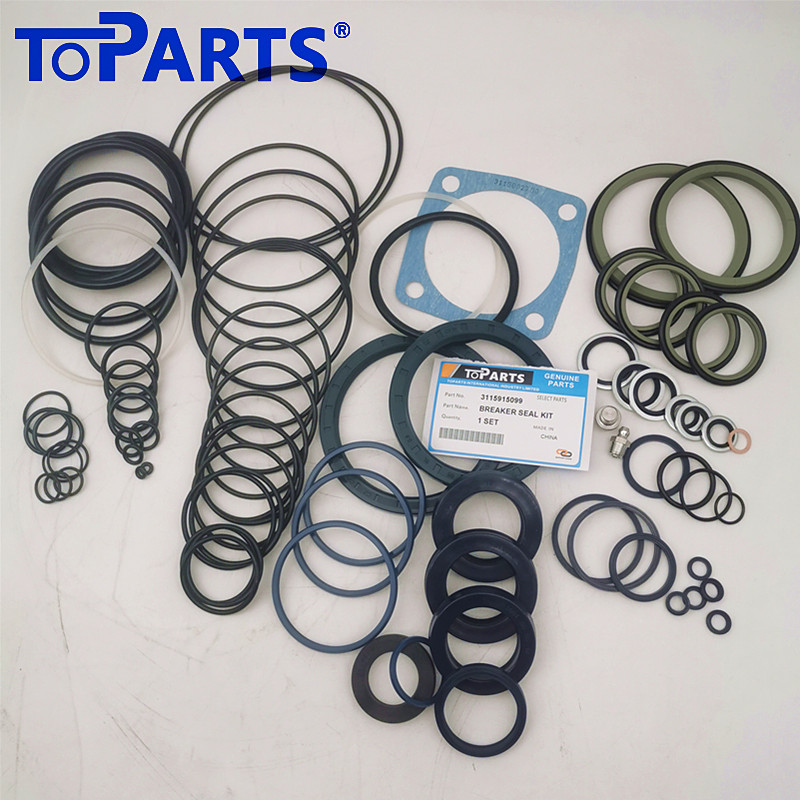

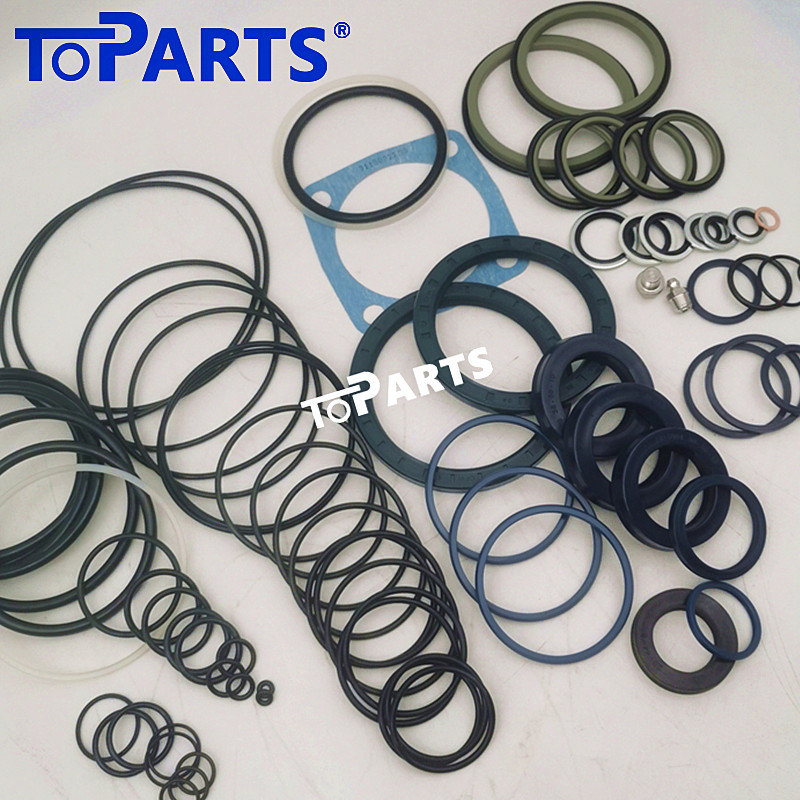

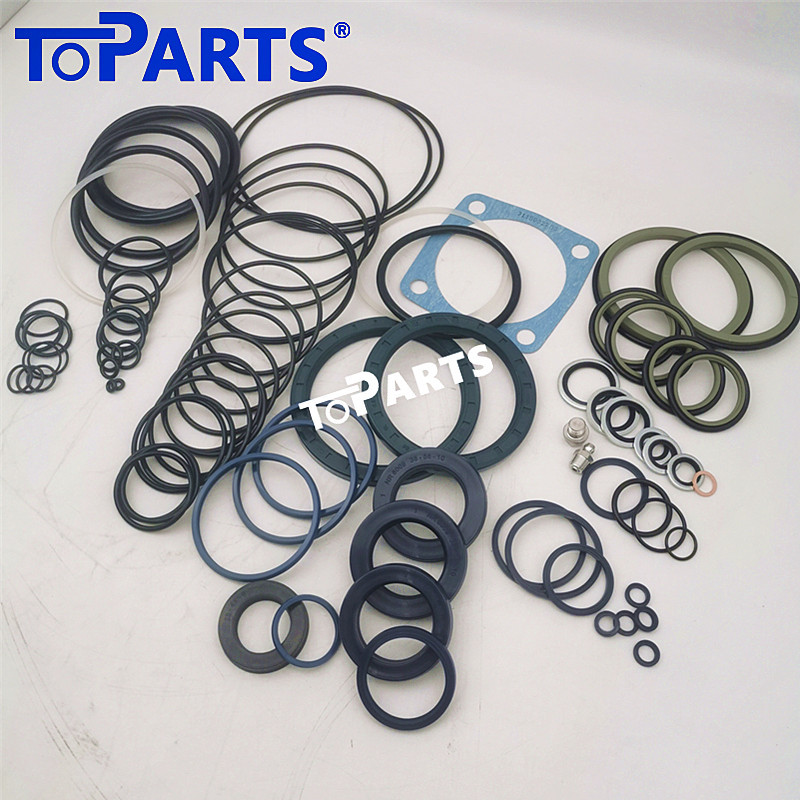

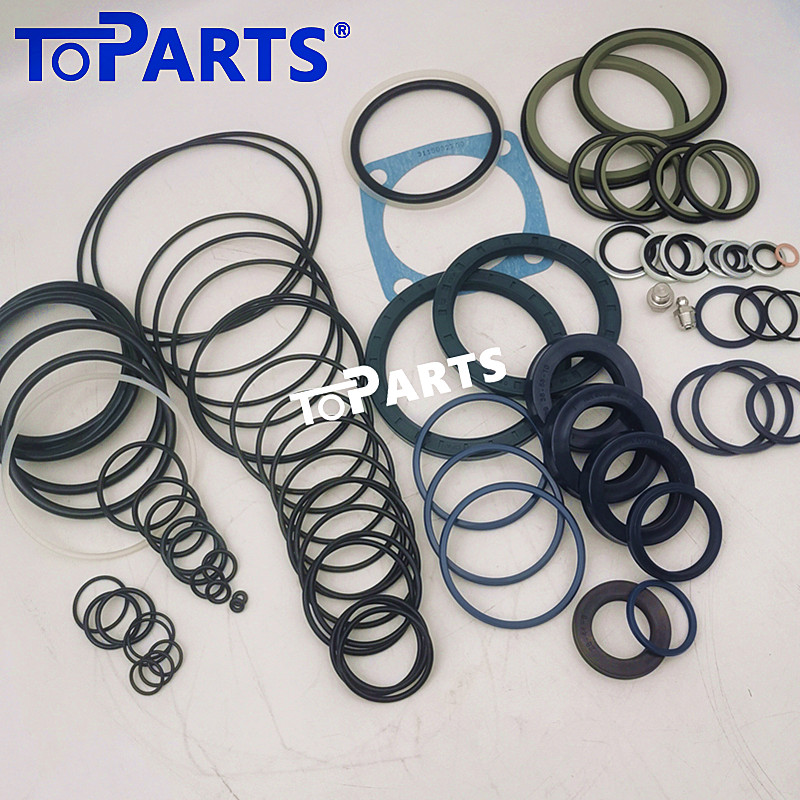

3115 9153 90 |
1 |
O-RING SET |
|
10 |
0661 1034 00 |
2 |
SEAL WASHER |
|
16 |
3115 0970 00 |
2 |
SEAL KIT |
|
26 |
3115 1156 00 |
2 |
SEAL KIT |
|
37 |
3115 1697 00 |
2 |
SEAL WASHER |
|
56 |
0661 1020 00 |
1 |
SEAL WASHER |
|
83 |
3115 5146 01 |
1 |
SEAL RING |
|
85 |
3115 1880 90 |
1 |
SEAL KIT |
|
104 |
0686 4201 03 |
1 |
PLUG |
|
105 |
0653 9038 00 |
1 |
GASKET |
|
106 |
0544 2162 00 |
1 |
GREASE NIPPLE |
|
107 |
0666 7188 01 |
1 |
RADIAL LIP SEAL |
|
128 |
0667 1206 00 |
1 |
SEAL |
|
154 |
0666 7190 01 |
1 |
RADIAL LIP SEAL |
|
175 |
3115 2333 00 |
2 |
CUP SEAL |
|
176 |
3115 5190 00 |
1 |
CUP SEAL |
|
178 |
3115 3024 00 |
1 |
WIPER |
|
190 |
3115 3445 00 |
1 |
SEAL RING |
|
192 |
3115 3289 17 |
3 |
SEAL RING |
|
193 |
0663 2143 00 |
1 |
O-RING |
|
231 |
0661 1038 00 |
1 |
SEAL WASHER |
|
231 |
0663 2109 37 |
1 |
O-RING |
|
231 |
0663 2128 00 |
1 |
O-RING |
|
231 |
0663 2129 01 |
1 |
O-RING |
|
231 |
9125 6191 00 |
1 |
O-RING |
|
247 |
3115 0327 00 |
1 |
GASKET |
