Description

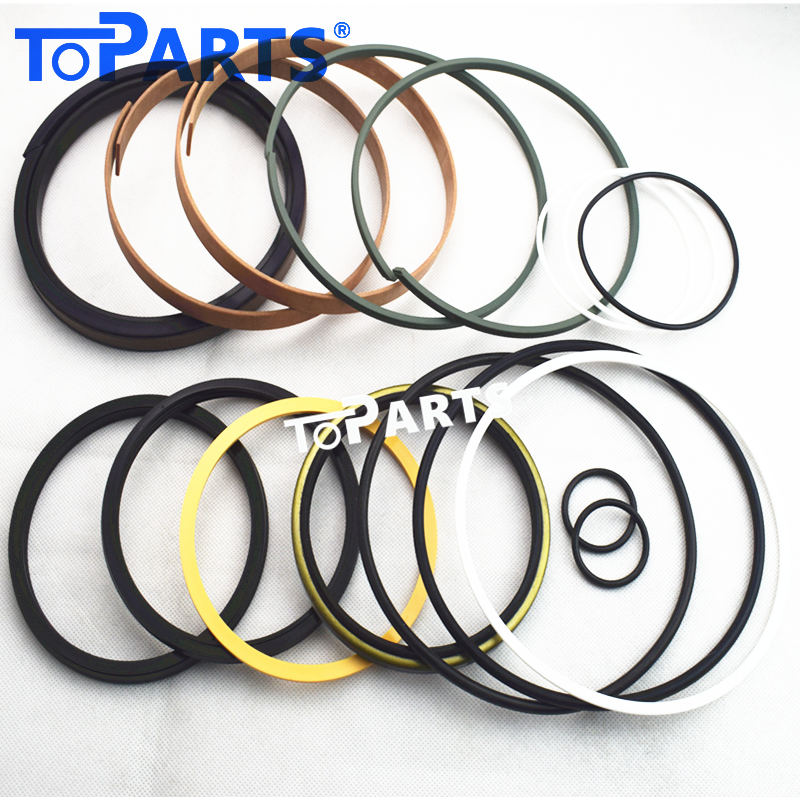

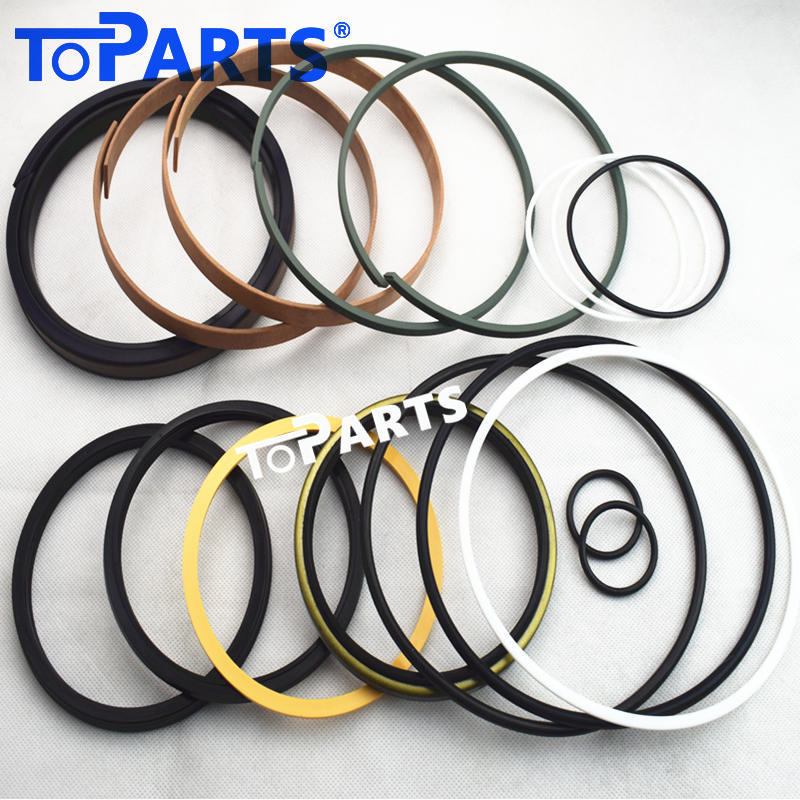

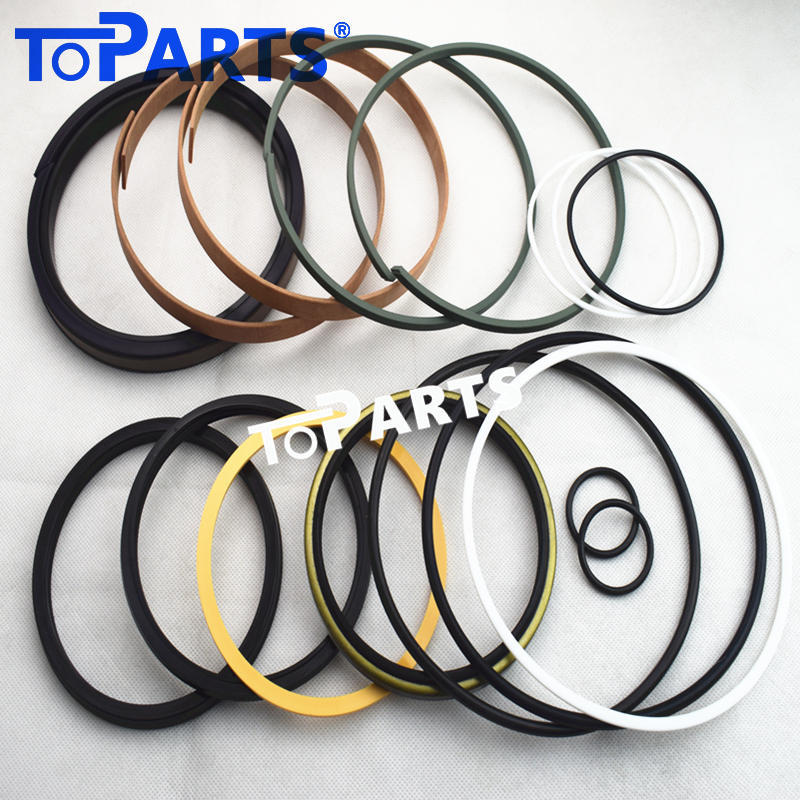

Model:Hyundai 31Y1-35590 Hydraulic cylinder seal kit
Part Name:31Y1-35590
CylinderNo:31QB -50110,31QB -50111,31QB -50112,31QB -50120,31QB -50121,31QB-50122,31Y1-35460,31Y1 -44580
Rod:115MM
Piston:170MM
For:Hyundai R480LC-9,R520LC-9
Material :PU+NBR+PTFE
Certification: IOS 9001
Packaging Details: bag or box +carton
Delivery Time:2-5days upon payments confirmed
Brand:TOPARTS, OEM or as Required
Payment Terms:TT/Paypal/WEST UNION
Supply Ability:500
MOQ:1set
Parts list

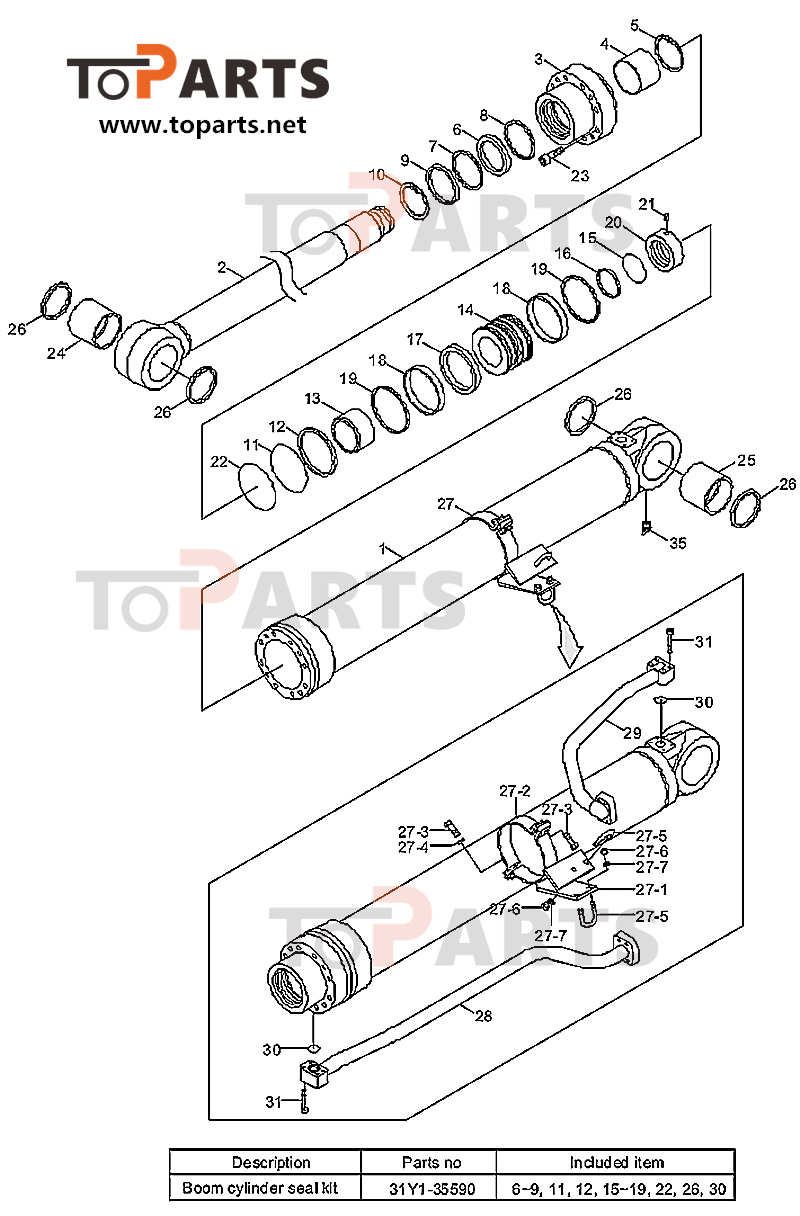

Exploded view
Our advantage: original system data to ensure accurate size
Our customers
Toparts Provide best sealing solutions,our main products are: Hydraulic Breaker seal kit, Excavator seal kit, Crane seal kit, Wheel Loaders seal kit, Crawler Dozers seal kit, Pump seal kit, Motor seal kit, Dump Trucks seal kit.
Seal kit for Excavator
Hydraulic cylinder seal kit
Boom seal kit;Arm seal kit;Bucket seal kit;
hydraulic pump seal kit
Swing motor seal kit,
Travel motor seal kit,
Polit Control seal kit,
Control valve seal kit
Center Joint seal kit,
Track Adjuster seal kit,
Gear Pump seal kit.
Serviceable excavator brands: Komatsu, Caterpillar, Hitachi, Kobelco, Sumitomo, Doosan, Hyundai, Kato, Volvo, JCB, Sany, etc.
Tag:Boom seal kit,hydraulic cylinder seal kit,Bucket seal kit
Part Name:31Y1-35590
CylinderNo:31QB -50110,31QB -50111,31QB -50112,31QB -50120,31QB -50121,31QB-50122,31Y1-35460,31Y1 -44580
Rod:115MM
Piston:170MM
For:Hyundai R480LC-9,R520LC-9
Material :PU+NBR+PTFE
Certification: IOS 9001
Packaging Details: bag or box +carton
Delivery Time:2-5days upon payments confirmed
Brand:TOPARTS, OEM or as Required
Payment Terms:TT/Paypal/WEST UNION
Supply Ability:500
MOQ:1set
Parts list
| * | 31QB -50110 | Boom Cylinder Assy... [T] | 1 |
| 31QB -50111 | Boom Cylinder Assy... [T] | 1 | |
| 31QB -50112 | Boom Cylinder Assy... [T] | 1 | |
| 31QB -50120 | Boom Cylinder Assy... [T] | 1 | |
| 31QB -50121 | Boom Cylinder Assy... [T] | 1 | |
| 31QB-50122 | Boom Cylinder Assy... [T] | 1 | |
| *-1 | 31Y1-35460 | Boom Cyl Sub Assy | 1 |
| 31Y1 -44580 | Boom Cyl Sub Assy | 1 | |
| 1 | 31Y1 -35470 | Tube Assy | 1 |
| 31Y1 -35471 | Tube Assy | 1 | |
| 2 | 31Y1-35530 | Rod Assy | 1 |
| 31Y1 -35531 | Rod Assy | 1 | |
| 3 | 31Y1 -35560 | Gland | 1 |
| 4 | S732 -115045 | Bushing -Dd2 | 1 |
| 5 | Y191 -123000 | Ring -Snap | 1 |
| K6 | Y220 -115113 | Seal -Rod | 1 |
| K7 | Y180 -115020 | Ring -Back Up | 1 |
| K8 | Y240 -115012 | Ring -Buffer | 1 |
| K9 | Y110 -115011 | Wiper -Dust | 1 |
| 10 | Y190 -131000 | Ring -Snap | 1 |
| K11 | S632 -160004 | O -Ring | 1 |
| K12 | S642 -161003 | Ring -Back Up | 1 |
| 13 | 31YC -28120 | Ring -Cushion | 1 |
| 14 | 31Y1 -35580 | Piston | 1 |
| 31Y1 -35585 | Piston | 1 | |
| K15 | S632 -090004 | O -Ring | 1 |
| K16 | S642 -090003 | Ring -Back Up | 2 |
| K17 | Y420 -170000 | Seal -Piston | 1 |
| K18 | Y310 -170200 | Ring -Wear | 2 |
| K19 | Y440 -170102 | Ring -Dust | 2 |
| Y440 -170100 | Ring -Dust | 2 | |
| 20 | 31YC -68120 | Nut -Lock | 1 |
| 21 | S114 -100164 | Screw -Set | 1 |
| K22 | 31YC -99H90 | O -Ring | 1 |
| 23 | S109 -220954 | Bolt -Socket | 12 |
| 24 | 61Q6 -97920 | Bush -Pin | 1 |
| 61QH -73810 | Bushing -Pin | 1 | |
| 25 | 61Q6 -97930 | Bush -Pin | 1 |
| 61QH -96610 | Bushing -Pin | 1 | |
| K26 | Y020 -120000 | Seal -Dust,Dli,Kpu | 4 |
| 27 | 31Y1 -26500 | . Band Assy -Lh | 1 |
| 31Y1 -26501 | . Band Assy -Lh | 1 | |
| 31Y1 -26502 | . Band Assy -Lh | 1 | |
| 31Y1 -26510 | . Band Assy -Rh | 1 | |
| 31Y1 -26511 | . Band Assy -Rh | 1 | |
| 31Y1 -26512 | . Band Assy,Rh | 1 | |
| 27 | 31Y1 -26520 | Band Sub Assy -Lh | 1 |
| 31Y1 -26530 | Band Sub Assy -Rh | 1 | |
| 27 | 31YC -32190 | Band | 1 |
| 27 | S015 -120452 | Bolt -Hex | 4 |
| 27 | S411 -120002 | Washer -Spring | 4 |
| 27 | S071 -024330 | U -Bolt | 2 |
| 27 | S201 -101002 | Nut -Hex | 4 |
| 27 | S411 -100002 | Washer -Sprinig | 4 |
| 28 | 31Y1 -35610 | . Pipe Assy -R,Rh | 1 |
| 31Y1 -35611 | . Pipe Assy -R,Rh | 1 | |
| 31Y1 -35612 | . Pipe Assy -R,Rh | 1 | |
| 31Y1 -35600 | . Pipe Assy -R,Lh | 1 | |
| 31Y1 -35601 | . Pipe Assy -R,Lh | 1 | |
| 31Y1 -35602 | . Pipe Assy -R,Lh | 1 | |
| 29 | 31Y1 -35870 | . Pipe Assy -B,Rh | 1 |
| 31Y1 -35871 | . Pipe Assy -B,Rh | 1 | |
| 31Y1 -35860 | . Pipe Assy -B,Lh | 1 | |
| 31Y1 -35861 | . Pipe Assy -B,Lh | 1 | |
| K30 | Y171 -024004 | . O -Ring | 2 |
| 31 | S107 -120604 | . Bolt -Socket | 8 |
| S107 -120606 | . Bolt -Socket | 8 | |
| 35 | S652 -810002 | . Nipple -Grease | 1 |
| K | 31Y1 -35590 | Seal Kit [T] | 1 |
