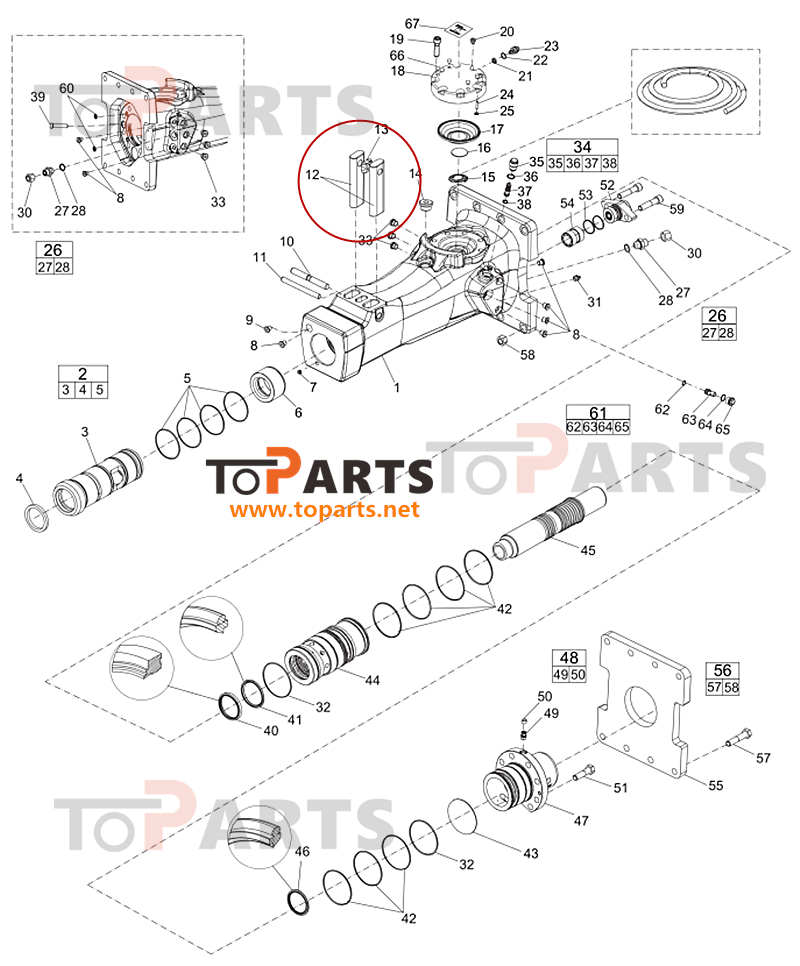

Parts list
|
Item |
Part No |
Name |
Qty |
|
1 |
- |
Breaker body |
1 |
|
2 |
3315354080 |
Bushing standard, complete |
1 |
|
3 |
- |
Bushing, Ø90 mm, Ø3.54 in. |
1 |
|
4 |
3315356200 |
Scraper ring |
1 |
|
5 |
0663210498 |
O-ring |
4 |
|
6 |
3315277800 |
Stop ring |
1 |
|
7 |
0686100009 |
Plug, Ø10 mm, Ø0.39 in. |
1 |
|
8 |
0686644207 |
PLUG |
6 |
|
9 |
3315395200 |
Water Nossle |
1 |
|
10 |
3315135000 |
Lock pin |
1 |
|
11 |
0108169127 |
Spring pin, option |
1 |
|
12 |
3315134900 |
Retainer bar |
2 |
|
13 |
3315141900 |
LOCK BUFFER |
1 |
|
14 |
0686371803 |
PLUG |
1 |
|
15 |
3315359600 |
Coil spring |
1 |
|
16 |
3315359500 |
Diaphragm support |
1 |
|
17 |
3315289000 |
Diaphragm |
1 |
|
18 |
3315282410 |
Accumulator house |
1 |
|
19 |
0211196534 |
HEX SOCK. SCREW |
8 |
|
20 |
0686371805 |
PLUG |
1 |
|
21 |
3115329002 |
SEAL RING |
1 |
|
22 |
0663212000 |
O-RING |
1 |
|
23 |
3315366000 |
VALVE |
1 |
|
24 |
0101414000 |
PIN |
1 |
|
25 |
0663211400 |
O-RING |
1 |
|
26 |
0580001846 |
PIPE COUPLING |
1 |
|
27 |
- |
NIPPLE |
2 |
|
28 |
0664000003 |
Seal ring |
1 |
|
30 |
3361353486 |
Cap |
2 |
|
31 |
0544215300 |
GREASE NIPPLE |
1 |
|
32 |
0663990036 |
Seal ring |
2 |
|
33 |
0686371801 |
PLUG |
3 |
|
34 |
3315335000 |
Pressure relief valve, complete |
1 |
|
35 |
- |
VALVE PLUG |
1 |
|
36 |
- |
Pressure relief valve |
1 |
|
37 |
0663905401 |
O-ring |
1 |
|
38 |
0663903201 |
O-RING |
1 |
|
39 |
3315336700 |
PLUG |
1 |
|
40 |
0665909956 |
Wiper |
1 |
|
41 |
0665070130 |
Piston rod seal |
1 |
|
42 |
0663210494 |
O-RING |
7 |
|
43 |
0663211516 |
O-ring, |
1 |
|
44 |
3315277420 |
Liner |
1 |
|
45 |
3315277300 |
Piston |
1 |
|
46 |
0665070129 |
Piston rod seal |
1 |
|
47 |
3315293110 |
Back head |
1 |
|
48 |
3315244881 |
CHECK VALVE |
1 |
|
49 |
- |
CHECK VALVE |
1 |
|
50 |
3315280800 |
VALVE RUBBER |
1 |
|
51 |
0147148103 |
SCREW, HEX HEAD |
8 |
|
52 |
3315352020 |
Valve cover |
1 |
|
53 |
0663211444 |
O-RING |
2 |
|
54 |
3315277600 |
SLIDE |
1 |
|
55 |
3315295100 |
Base plate |
1 |
|
56 |
3315296490 |
Bolt kit |
1 |
|
57 |
- |
Screw M6 x 20 mm 8.8 A2K |
8 |
|
58 |
- |
Nut, M16 |
8 |
|
59 |
0211110349 |
Screw, M14 x 65 mm |
2 |
|
60 |
0665090014 |
SEAL RING |
2 |
|
61 |
3315369460 |
Restrictor, complete |
|
|
62 |
0663210421 |
O-RING |
|
|
63 |
- |
Restrictor, ø6 mm(standard) |
|
|
64 |
0663212141 |
O-RING |
|
|
65 |
3315369200 |
Restrictor plug |
|
|
66 |
3315439145 |
Protective plug HATCON |
4 |
|
67 |
3315439101 |
HATCON label |
1 |
Our customers

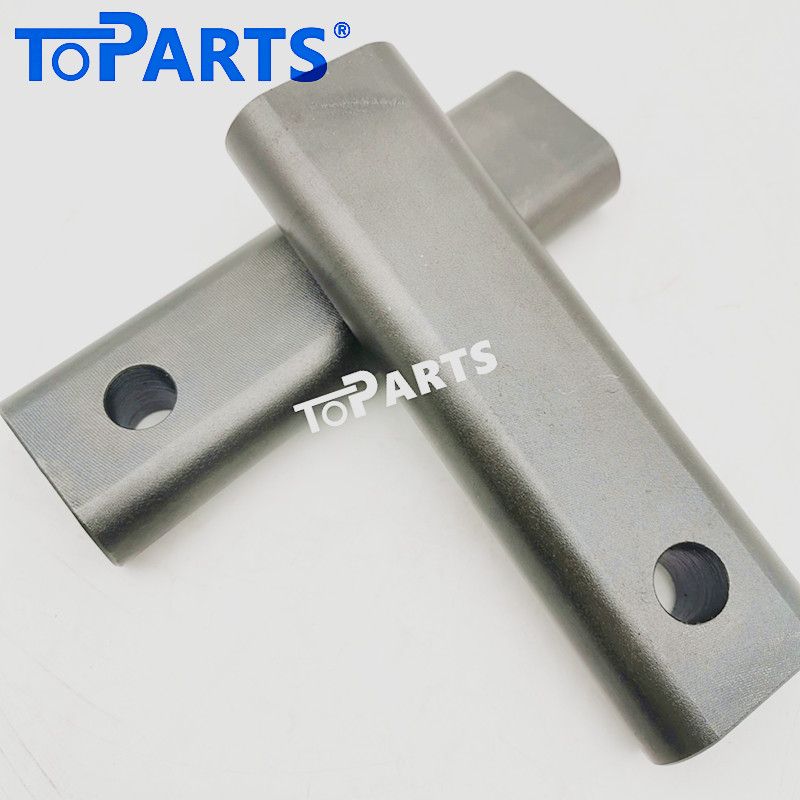

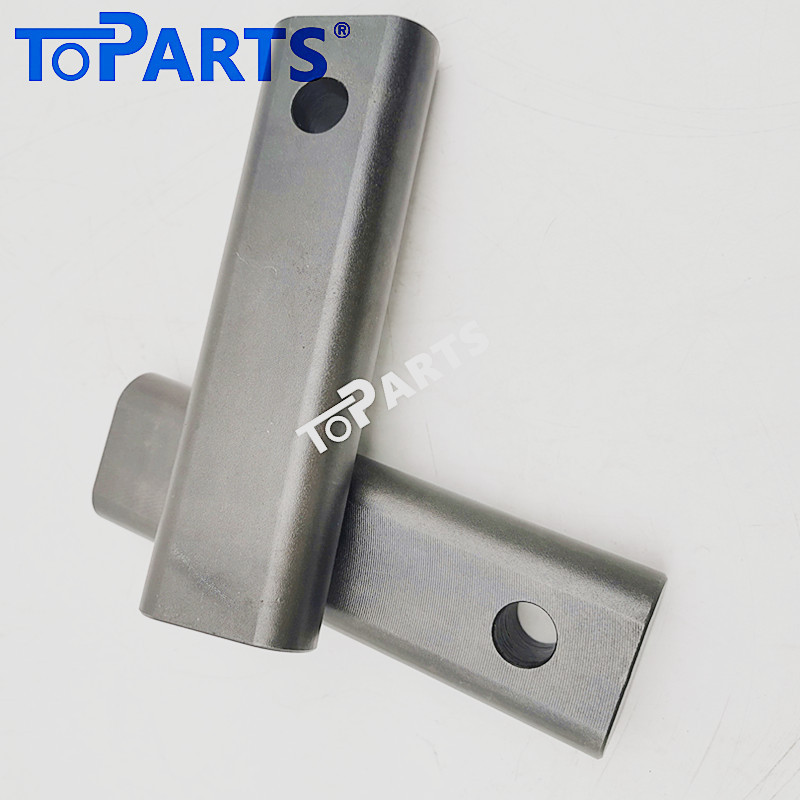

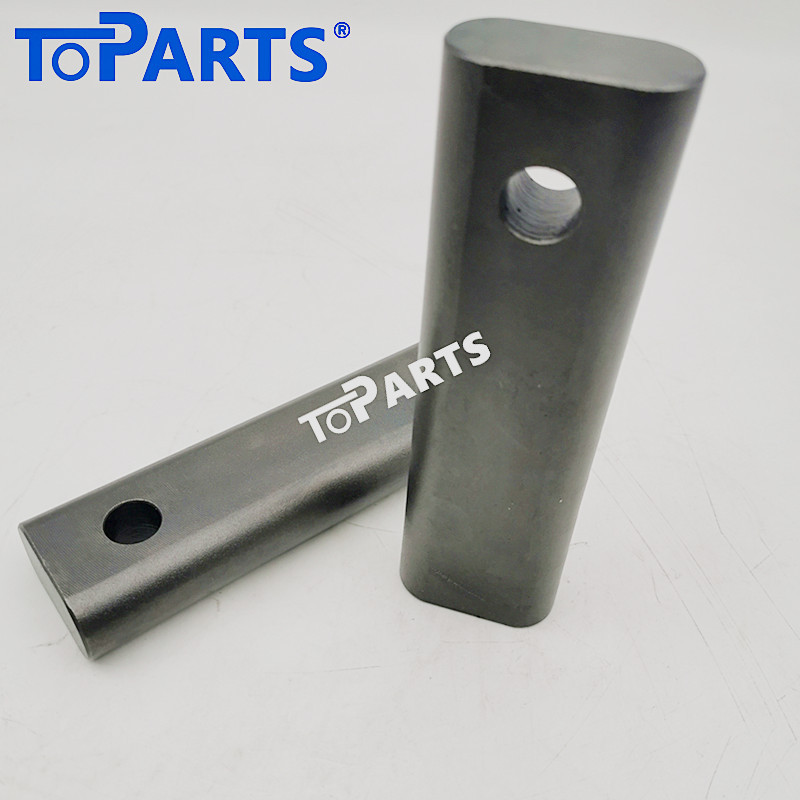

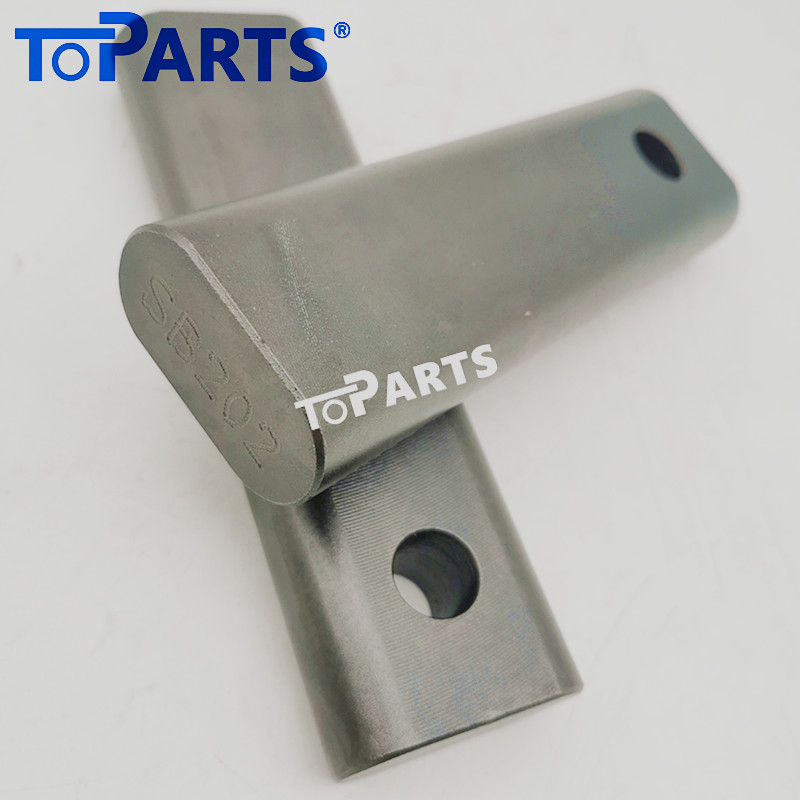

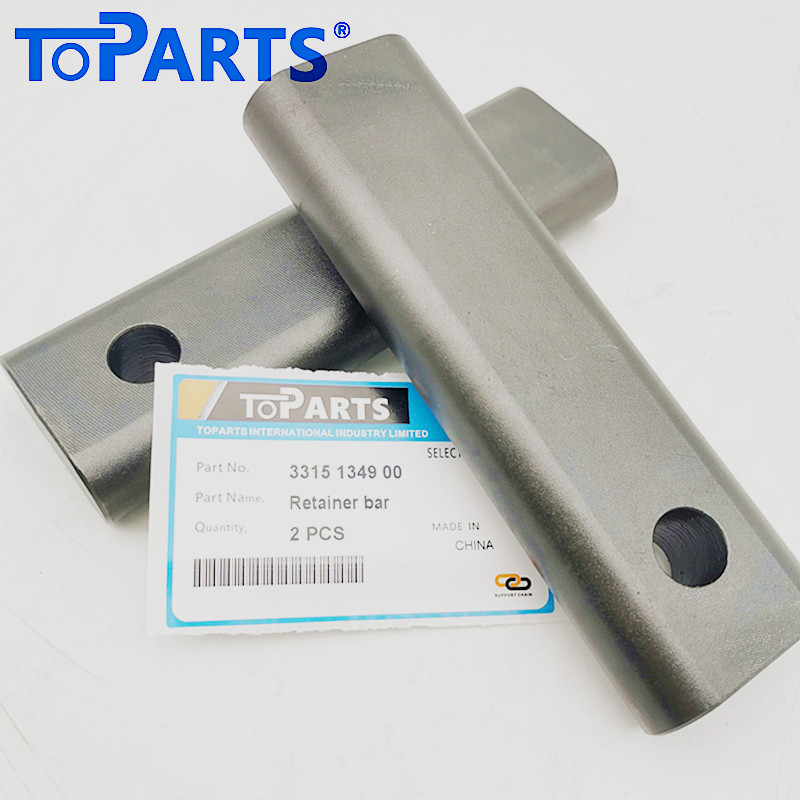

Toparts 3315134900 Hydraulic Breaker Retainer Bar for Atlas Copco SB202
Looking for a reliable retainer bar for your Atlas Copco SB202 hydraulic breaker? Toparts has you covered with our high-quality 3315134900 retainer bar, designed to perfectly secure the rod pin in your breaker.
Why Choose the Toparts 3315134900 Retainer Bar?
Our retainer bar is engineered to meet the demanding specifications of hydraulic breaker operations, ensuring maximum performance and durability.
Precision Engineering: Manufactured by Toparts, a trusted name in aftermarket parts, this retainer bar is precision-engineered to provide a perfect fit and secure retention for the rod pin in your Atlas Copco SB202.
Enhanced Durability: Made from robust, high-grade materials, our 3315134900 retainer bar is built to withstand the extreme forces and vibrations associated with hydraulic breaking, offering exceptional longevity and reducing downtime.
Optimal Performance: A properly functioning retainer bar is crucial for the efficient operation of your hydraulic breaker. Our part ensures the rod pin remains securely in place, preventing premature wear and maximizing your breaker's impact energy.
Cost-Effective Solution: Get OEM-comparable quality without the OEM price tag. The Toparts 3315134900 retainer bar offers an excellent balance of performance, durability, and affordability, helping you maintain your equipment efficiently.
Direct Replacement: This retainer bar is a direct replacement for the original Atlas Copco part number 3315134900, making installation straightforward and hassle-free.
Key Specifications:
Part Number: 3315134900
Compatibility: Specifically designed for Atlas Copco SB202 hydraulic breakers
Function: Secures the rod pin within the breaker
Manufacturer: Toparts
Don't let a worn-out retainer bar compromise the performance of your Atlas Copco SB202. Invest in the Toparts 3315134900 hydraulic breaker retainer bar and ensure your equipment operates at its best.
Ready to upgrade your hydraulic breaker's reliability? Contact Toparts today to learn more about the 3315134900 retainer bar or to place your order!
