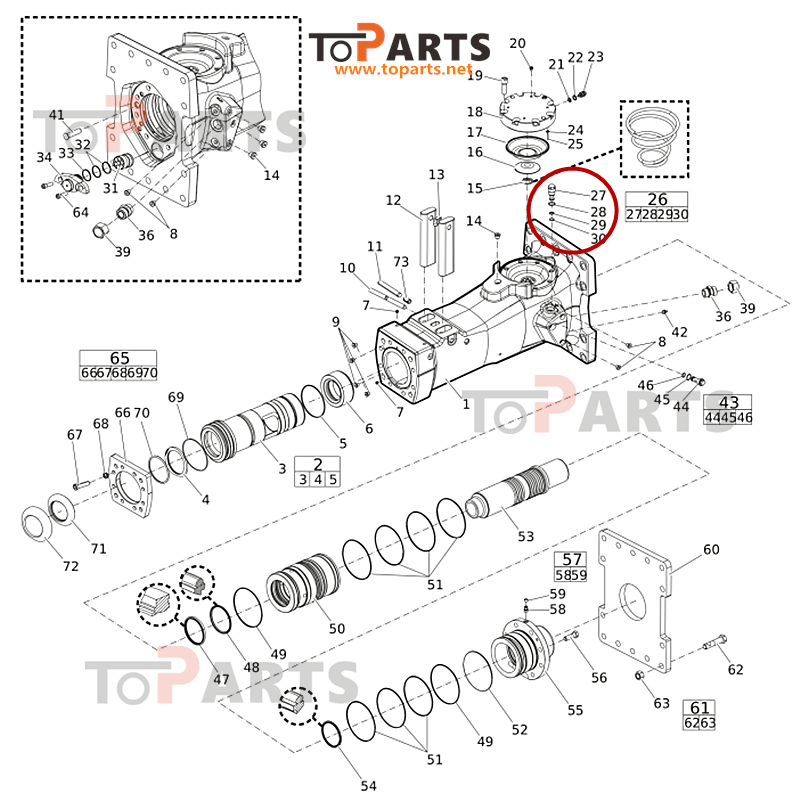

Parts list
|
Item |
Part No. |
Name |
Qty |
|
1 |
|
BREAKER BODY |
1 |
|
2 |
3382070197 |
BUSHING, complete |
1 |
|
3 |
|
BUSHING |
1 |
|
4 |
3315303000 |
SCRAPER RING |
1 |
|
5 |
0663210823 |
O-RING |
4 |
|
6 |
3315302800 |
STOP RING |
1 |
|
7 |
0686100009 |
PLUG |
2 |
|
8 |
0686644207 |
PLUG |
4 |
|
9 |
3315395200 |
WATER NOSSLE |
4 |
|
10 |
3315319110 |
LOCK PIN |
1 |
|
11 |
3315434900 |
BUSHING PIN |
1 |
|
12 |
3315442750 |
RETAINER BAR |
2 |
|
13 |
3315141900 |
LOCK BUFFER |
1 |
|
14 |
0686371801 |
PLUG |
4 |
|
15 |
3315303500 |
COIL SPRING |
1 |
|
16 |
3315303201 |
DIAPHRAGM SUPPORT |
1 |
|
17 |
3315416300 |
DIAPHRAGM |
1 |
|
18 |
3315303100 |
DIAPHRAGM COVER |
1 |
|
19 |
0211196544 |
HEXAGON SOCKET SCREW |
8 |
|
20 |
0686371805 |
PLUG |
1 |
|
21 |
3115329002 |
SEAL RING |
1 |
|
22 |
0663212000 |
O-RING |
1 |
|
23 |
3315366000 |
VALVE |
1 |
|
24 |
0663211400 |
O-RING |
1 |
|
25 |
0101414000 |
PIN |
1 |
|
26 |
3315365800 |
PRESSURE RELIEF VALVE, complete |
1 |
|
27 |
- |
PRESSURE RELIEF VALVE |
1 |
|
28 |
0663212141 |
O-RING |
1 |
|
29 |
0663210421 |
O-RING |
1 |
|
30 |
0661200401 |
BACK-UP RING |
1 |
|
31 |
3315312100 |
CONTROL VALVE |
1 |
|
32 |
0663990026 |
SEAL RING |
2 |
|
33 |
0663211491 |
O-RING |
1 |
|
34 |
3315362820 |
VALVE COVER |
1 |
|
36 |
3176634800 |
NIPPLE |
1 |
|
39 |
3176542900 |
CAP |
2 |
|
41 |
3315336700 |
PLUG |
1 |
|
42 |
3360433774 |
GREASE NIPPLE |
1 |
|
43 |
3315369655 |
RESTRICTOR, complete |
1 |
|
44 |
|
RESTRICTOR, 7.7 mm (0.30 in.) |
1 |
|
45 |
0663210421 |
O-RING |
1 |
|
46 |
0663212141 |
O-RING |
1 |
|
47 |
0665909965 |
WIPER |
1 |
|
48 |
0665070134 |
PISTON ROD SEAL |
1 |
|
49 |
0663990027 |
SEAL RING |
2 |
|
50 |
3315302520 |
LINER |
1 |
|
51 |
0663211303 |
O-RING |
7 |
|
52 |
0663211506 |
O-RING |
1 |
|
53 |
3315442000 |
PISTON |
1 |
|
54 |
0665070133 |
PISTON ROD SEAL |
1 |
|
55 |
3315303410 |
BACK HEAD |
1 |
|
56 |
0147155503 |
SCREW, HEX HEAD |
8 |
|
57 |
3315244881 |
CHECK VALVE, complete |
1 |
|
58 |
|
CHECK VALVE |
1 |
|
59 |
3315280800 |
VALVE RUBBER |
1 |
|
60 |
3315307700 |
BASE PLATE |
1 |
|
61 |
3315323990 |
BOLT KIT |
1 |
|
62 |
- |
SCREW |
14 |
|
63 |
|
NUT |
14 |
|
64 |
0211110495 |
HEXAGON SOCKET SCREW |
2 |
|
65 |
3382070198 |
WEAR PLATE, complete |
1 |
|
66 |
|
WEAR PLATE |
1 |
|
67 |
3315431101 |
HEXAGON SOCKET SCREW |
8 |
|
68 |
0333520027 |
LOCK WASHER |
8 |
|
69 |
0663210658 |
O-RING |
1 |
|
70 |
0663212007 |
O-RING |
1 |
|
71 |
3315440404 |
DUST COVER |
1 |
|
72 |
3315440403 |
FRONT SHIELD |
1 |
|
73 |
0108110322 |
SPRING PIN |
1 |

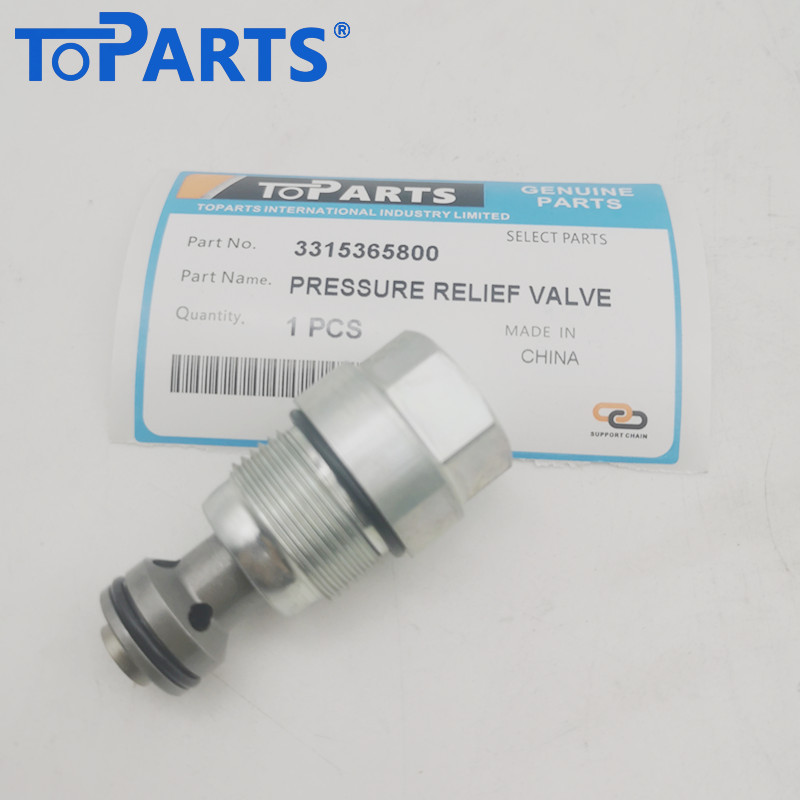

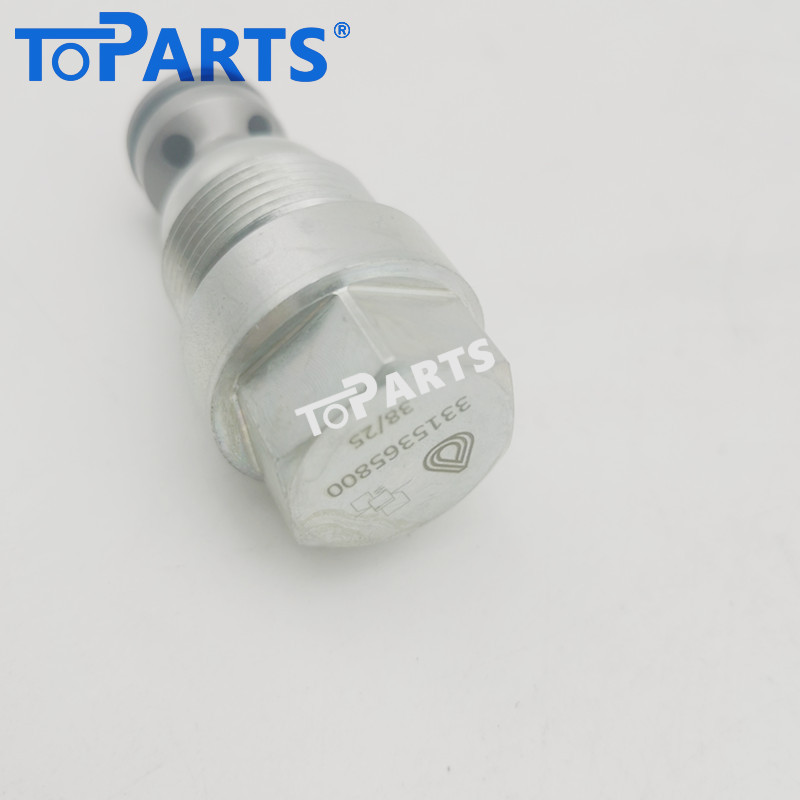

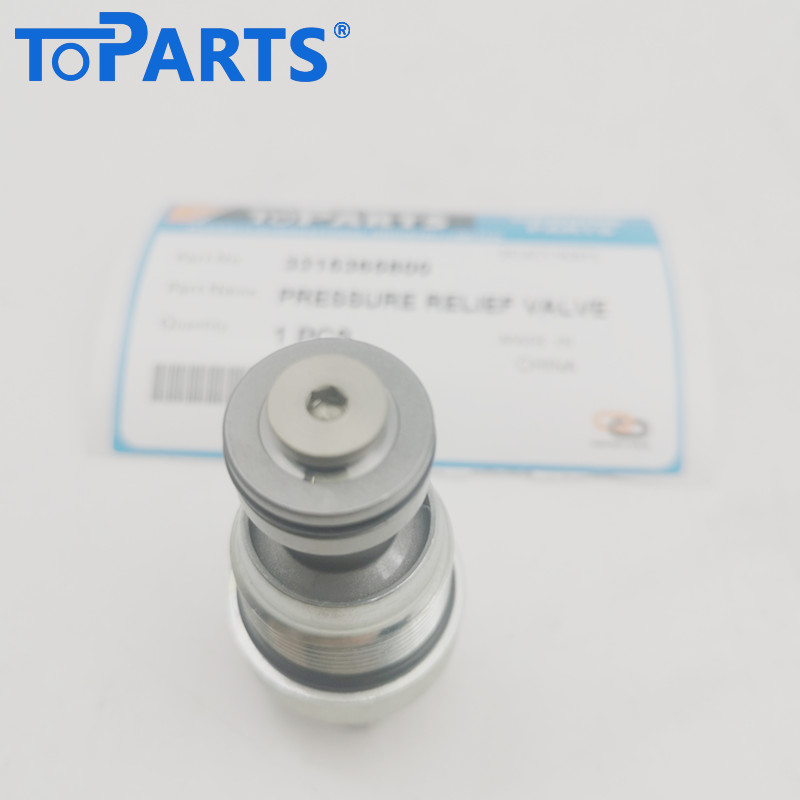

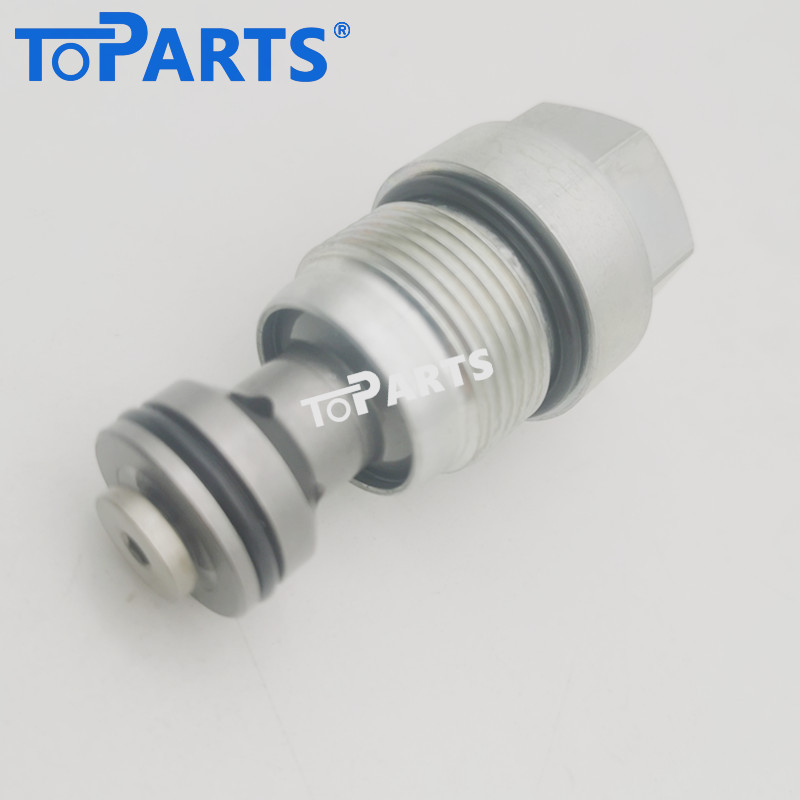

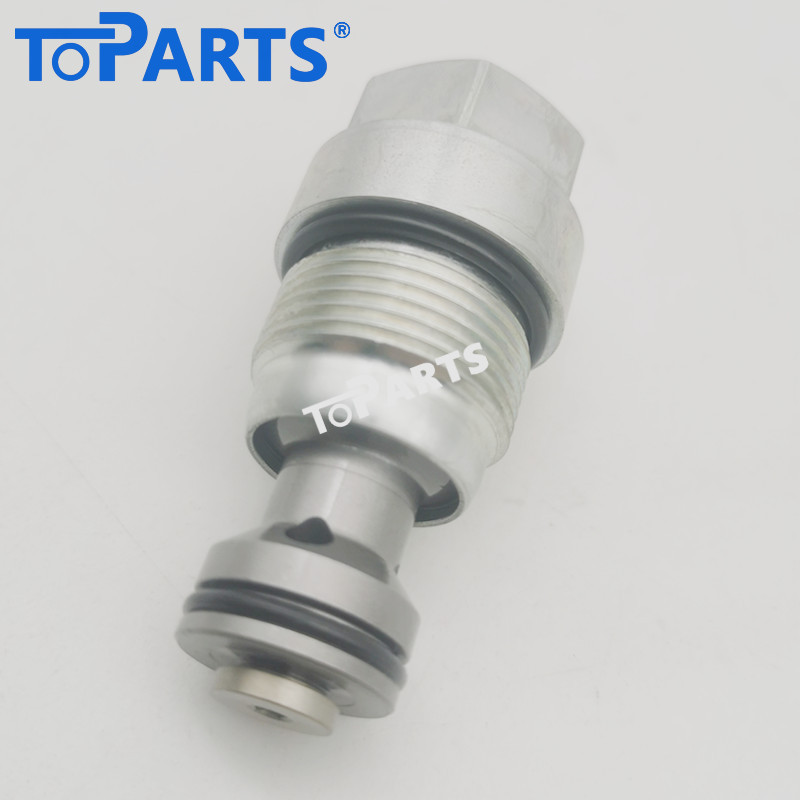

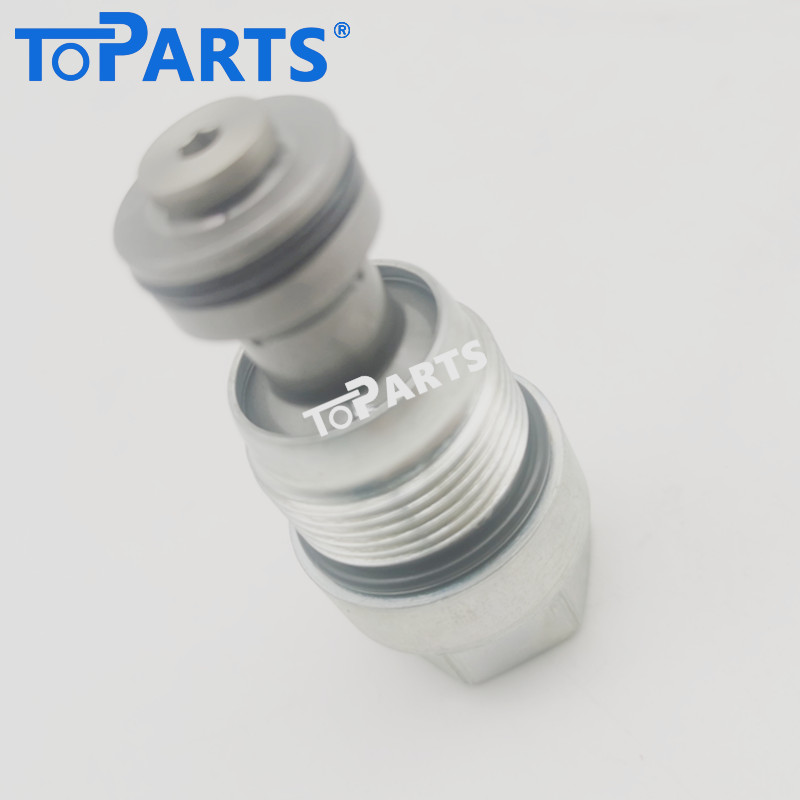

Toparts 3315365800 Hydraulic Breaker Pressure Relief Valve
Protect your equipment and maintain optimal hydraulic performance with the Toparts 3315365800 Pressure Relief Valve. Specifically designed for the Atlas Copco SB and SBU series, this valve acts as a critical safety mechanism, safeguarding your hydraulic hammer from pressure spikes and ensuring stable operation in the most demanding demolition environments.
Essential Protection for Your Atlas Copco SB Series
The Pressure Relief Valve (PRV) is the frontline defense for your breaker’s internal components. It prevents excessive hydraulic pressure from the carrier (excavator/loader) from damaging the breaker’s seals, piston, and housing. The Toparts 3315365800 is engineered to exact OEM specifications, offering a reliable, high-precision solution for a wide range of Atlas Copco (Epiroc) Solid Body hammers.
Key Features and Benefits:
Broad Compatibility: A versatile replacement part that fits a wide range of models, including SB202, SB302, SB452, SB552, and SBU340.
Direct OEM Replacement: Fully compatible with Atlas Copco part number 3315365800, ensuring a perfect thread fit and accurate pressure thresholds without the need for modification.
Precision Pressure Regulation: Engineered to lift and bypass fluid at precise pressure limits, protecting your breaker from the catastrophic failure often caused by incorrect carrier settings or sudden surges.
Heavy-Duty Construction: Manufactured from high-tensile, heat-treated alloy steel to resist erosion, cavitation, and the intense vibrations common in hydraulic hammering.
Maintains System Efficiency: By ensuring the breaker operates within its designated pressure range, this valve helps maintain a consistent strike rate and prevents overheating of the hydraulic oil.
Product Details:
Part Number: 3315365800
Component Type: Pressure Relief Valve (PRV) / Safety Valve
Compatible Hammer Models: * Atlas Copco / Epiroc: SB202, SB302, SB452, SB552
Atlas Copco / Epiroc: SBU340
Application: Hydraulic Breaker Pressure Regulation and Protection
Manufacturer: Toparts
Don't risk expensive internal damage to your hydraulic hammer. Invest in the Toparts 3315365800 Pressure Relief Valve to ensure your Atlas Copco SB series remains protected, productive, and powerful.
