Description
Model:Atlas Copco SB702 Hydraulic breaker

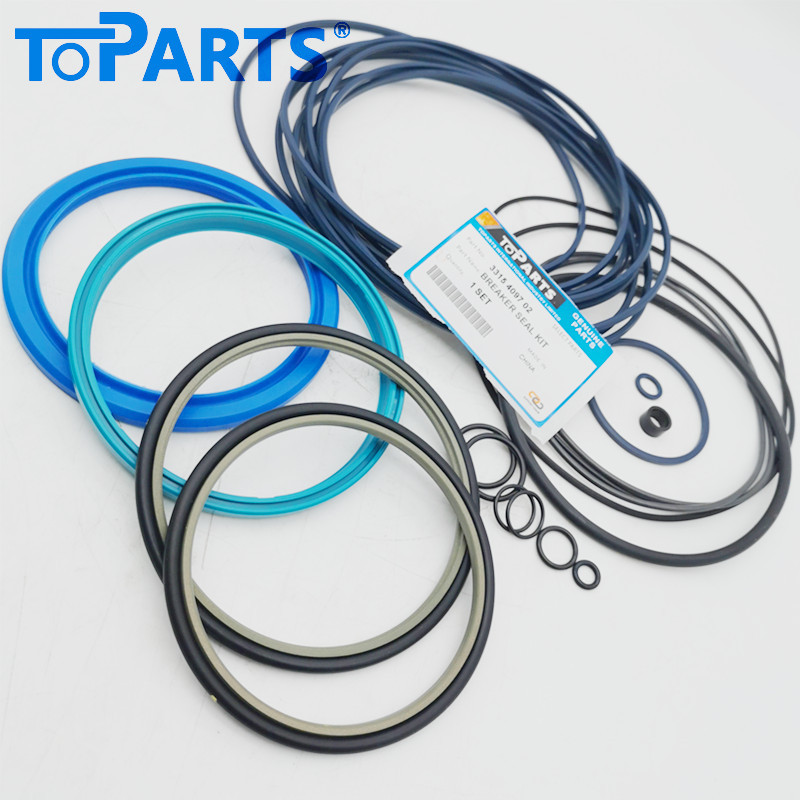

Part Name:Hydraulic breaker seal kit, Hydraulic hammer Repair seal kit
Tool:105MM
Part Number:3315 4097 02
Material:TPU+HNBR+PTFE
Packaging Details: bag or box +carton
Certification:IOS 9001
Delivery Time: 2-5days upon payments confirmed
Position:Atlas Copco Hydraulic Breaker Systerm
Brand:TOPARTS, BULLDOG OEM or as Required
Payment Terms:TT/Paypal/WEST UNION
Supply Ability:100
MOQ:1set
Parts list
Exploded view
Our customers
Q1: Are you a manufacturer?
A: Yes, our factory was established in 2009.
Q2: Are you sure your product will fit my hydraulic breaker ?
A: Our equipments are suitable for most hydraulic breaker. Show us your excavator model, we'll confirm the solution.
Q3: Can you produce according to customers' design?
A: Sure, OEM/ODM service available. We are professional manufacturer in Guangzhou.
Q4: What's the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T, L/C, Western Union accepted, other terms can be negotiated.
Q5. How is your delivery time?
1) If the goods are in stock for 1-2 days.
2) If the goods are out of stock, they will be molded for 10-20 days.
3) If the goods are out of stock and are not formed, it takes 25-35 days.
Q6: How about the package?
A: Our equipments wrapped by stretch film, packed by pallet or polywood case; or as requested.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Serviceable hammer brands: Furukawa, Soosan, Atlas-Copco, Daemo, Komac, Komatsu, Everdigm, Krupp, NPK, MSB, Sandvik, Toku, Toyo, Montabert, D&A, Rammer, General, etc Hydraulic breaker seal kit.
Tag:Boom seal kit,hydraulic cylinder seals,Bucket seal kit,Komatsu Service Seal kit,Wheel loaders cylinder seal kit
Part Name:Hydraulic breaker seal kit, Hydraulic hammer Repair seal kit
Tool:105MM
Part Number:3315 4097 02
Material:TPU+HNBR+PTFE
Packaging Details: bag or box +carton
Certification:IOS 9001
Delivery Time: 2-5days upon payments confirmed
Position:Atlas Copco Hydraulic Breaker Systerm
Brand:TOPARTS, BULLDOG OEM or as Required
Payment Terms:TT/Paypal/WEST UNION
Supply Ability:100
MOQ:1set
Parts list
| Item | Part No. | Name | Qty |
| 1 | - | HAMMER BODY | 1 |
| 2 | 3315388200 | Stop ring | 1 |
| 3 | 3315395000 | Upper bushing, | 1 |
| 4 | 3315409707 | Lower bushing complete | 1 |
| 5 | 663210824 | O-ring, | 2 |
| 6 | -- | Lower bushing, | 1 |
| 7 | 3315388700 | Scraper ring | 1 |
| 8 | 663210658 | O-RING | 1 |
| 9 | 3315409706 | Wear plate, complete | 1 |
| 10 | 663211647 | O-ring | 1 |
| 11 | 215001042 | Hexagon socket screw | 8 |
| 12 | -- | Wear plate | 1 |
| 13 | 663990040 | O-ring, | 9 |
| 14 | 3315409000 | Liner | 1 |
| 15 | 665070158 | Piston rod seal | 1 |
| 16 | 665909955 | Wiper | 1 |
| 17 | 665070157 | Piston rod seal | 1 |
| 18 | 663211649 | O-ring, | 1 |
| 19 | 3315244881 | CHECK VALVE | 1 |
| 20 | -- | Check valve | 1 |
| 21 | 3315280800 | VALVE RUBBER | 1 |
| 22 | 147163803 | SCREW, HEX HEAD | 10 |
| 23 | 3315323990 | Bolt kit | 1 |
| 24 | -- | Nut, M20 | 9 |
| 25 | -- | Screw | 12 |
| 26 | 686100009 | Plug, | 8 |
| 27 | 686644207 | PLUG | 8 |
| 28 | 3315395700 | Locking pin | 2 |
| 29 | 108110322 | Spring pin | 2 |
| 30 | 3315397200 | Locking pin | 1 |
| 31 | 3315141900 | LOCK BUFFER | 1 |
| 32 | 3315388300 | Retainer bar | 2 |
| 33 | 686371801 | PLUG | 4 |
| 34 | 3315303500 | COIL SPRING | 1 |
| 35 | 3315388500 | Diaphragm support | 1 |
| 36 | 3315416300 | Diaphragm | 1 |
| 37 | 3315303100 | Diaphragm cover | 1 |
| 38 | 211196544 | Hexagon socket screw | 10 |
| 39 | 686371805 | PLUG | 1 |
| 40 | 3115329002 | SEAL RING | 1 |
| 41 | 663212000 | O-RING | 1 |
| 42 | 3315366000 | VALVE | 1 |
| 43 | 663211400 | O-RING | 1 |
| 44 | 101414000 | PIN | 1 |
| 45 | 3315400900 | Pressure relief valve, complete | 1 |
| 46 | -- | Pressure relief valve | 1 |
| 47 | 663910401 | O-RING | 1 |
| 48 | 663903201 | O-RING | 1 |
| 49 | 664000005 | Sealing ring, | 1 |
| 50 | 580001476 | PIPE COUPLING | 1 |
| 51 | 663211125 | O-RING | 1 |
| 52 | 686925031 | Cap | 2 |
| 53 | 3363109435 | Non return valve, | 1 |
| 54 | 544215300 | GREASE NIPPLE | 1 |
| 55 | 3315409703 | Restrictor, complete | 1 |
| 56 | 663903201 | O-RING | 1 |
| 57 | - | Restrictor, | 1 |
| 58 | 663910401 | O-RING | 1 |
| 59 | 3315386500 | Restrictor plug | 1 |
| 60 | 3315397900 | Plug | 1 |
| 61 | 3315388000 | Valve cover | 1 |
| 62 | 663990041 | Stircomatic, | 1 |
| 63 | 3315388100 | Control valve | 1 |
| 64 | 3315387600 | Back head | 1 |
| 65 | 3315398800 | Base plate with through borings | 1 |
| 66 | 3315387900 | Piston | 1 |
| 67 | 108110326 | Spring pin, option | 2 |
Our customers
Q1: Are you a manufacturer?
A: Yes, our factory was established in 2009.
Q2: Are you sure your product will fit my hydraulic breaker ?
A: Our equipments are suitable for most hydraulic breaker. Show us your excavator model, we'll confirm the solution.
Q3: Can you produce according to customers' design?
A: Sure, OEM/ODM service available. We are professional manufacturer in Guangzhou.
Q4: What's the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T, L/C, Western Union accepted, other terms can be negotiated.
Q5. How is your delivery time?
1) If the goods are in stock for 1-2 days.
2) If the goods are out of stock, they will be molded for 10-20 days.
3) If the goods are out of stock and are not formed, it takes 25-35 days.
Q6: How about the package?
A: Our equipments wrapped by stretch film, packed by pallet or polywood case; or as requested.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Serviceable hammer brands: Furukawa, Soosan, Atlas-Copco, Daemo, Komac, Komatsu, Everdigm, Krupp, NPK, MSB, Sandvik, Toku, Toyo, Montabert, D&A, Rammer, General, etc Hydraulic breaker seal kit.
Tag:Boom seal kit,hydraulic cylinder seals,Bucket seal kit,Komatsu Service Seal kit,Wheel loaders cylinder seal kit
