Model:Atlas Copco SB702 SB552 SB452 hydraulic breaker

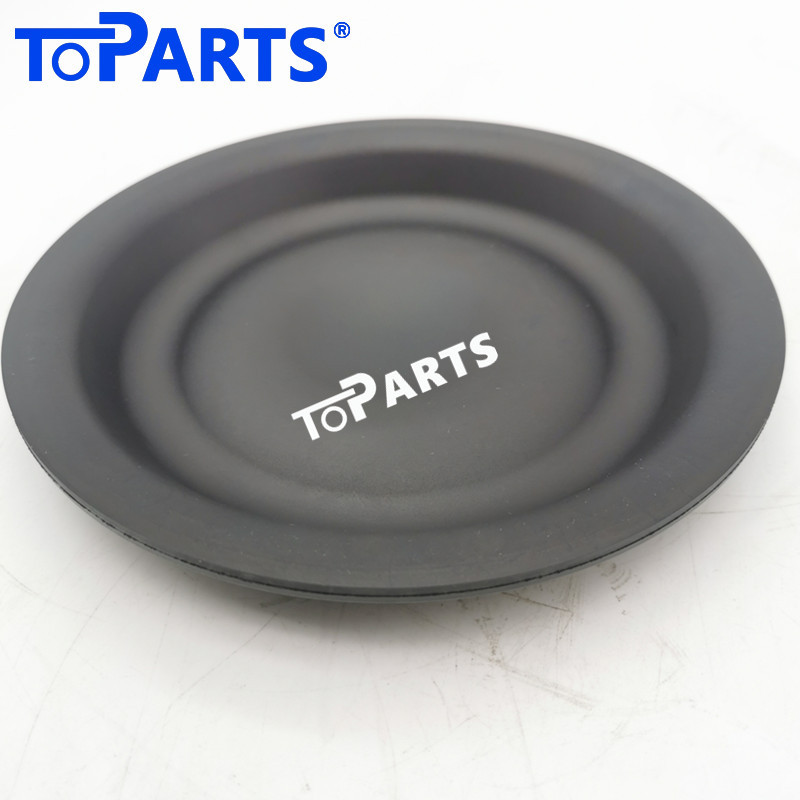

Part Name:Hydraulic breaker diaphragm/membrane
Part Number:3315 4163 00,3315 3033 00
Position:Accumulator Group
Material:HNBR, TPU
Certification:IOS 9001
Packaging Details:bag or box carton
Delivery Time:2-5days upon payments confirmed
Brand:TOPARTS, OEM or as Required
Payment Terms:TT/Paypal/WEST UNION
Supply Ability:500PCS
MOQ:1set
Parts list
Exploded view
Our customers
Q1: Are you a manufacturer?
A: Yes, our factory was established in 2009.
Q2: Are you sure your product will fit my hydraulic breaker ?
A: Our equipments are suitable for most hydraulic breaker. Show us your excavator model, we'll confirm the solution.
Q3: Can you produce according to customers' design?
A: Sure, OEM/ODM service available. We are professional manufacturer in Guangzhou.
Q4: What's the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T, L/C, Western Union accepted, other terms can be negotiated.
Q5. How is your delivery time?
1) If the goods are in stock for 1-2 days.
2) If the goods are out of stock, they will be molded for 10-20 days.
3) If the goods are out of stock and are not formed, it takes 25-35 days.
Q6: How about the package?
A: Our equipments wrapped by stretch film, packed by pallet or polywood case; or as requested.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Serviceable hammer brands: Furukawa, Soosan, Atlas-Copco, Daemo, Komac, Komatsu, Everdigm, Krupp, NPK, MSB, Sandvik, Toku, Toyo, Montabert, D&A, Rammer, General, etc Hydraulic breaker seal kit.
Tag:Boom seal kit,hydraulic cylinder seals,Bucket seal kit,Komatsu Service Seal kit,Wheel loaders cylinder seal kit
Part Name:Hydraulic breaker diaphragm/membrane
Part Number:3315 4163 00,3315 3033 00
Position:Accumulator Group
Material:HNBR, TPU
Certification:IOS 9001
Packaging Details:bag or box carton
Delivery Time:2-5days upon payments confirmed
Brand:TOPARTS, OEM or as Required
Payment Terms:TT/Paypal/WEST UNION
Supply Ability:500PCS
MOQ:1set
Parts list
| NO | Description | Quantity | Part number |
| 1 | Breaker body | 1 | |
| 2(3-5) | Bushing, complete | 1 | 3315 3029 80 |
| 3 | Bushing | 1 | |
| 4 | Scraper ring | 1 | 3315 3030 00 |
| 5 | O-ring | 4 | 0663 2108 23 |
| 6 | Stop ring | 1 | 3315 3028 00 |
| 7 | Plug | 2 | 0686 1000 09 |
| 8 | Plug | 7 | 0686 6442 07 |
| 9 | Water nozzle | 2 | 3315 3952 00 |
| 10 | Lock pin | 1 | 3315 3191 00 |
| 11 | Spring pin | 1 | 0108 1691 29 |
| 12 | Tool retainer | 2 | 3315 3059 00 |
| 13 | Lock buffer | 1 | 3315 1419 00 |
| 14 | Plug | 4 | 0686 3718 01 |
| 15 | Coil spring | 1 | 3315 3035 00 |
| 16 | Diaphragm support | 1 | 3315 3032 01 |
| 17 | Diaphragm | 1 | 3315 3033 00/3315 4163 00 |
| 18 | Diaphragm cover | 1 | 3315 3031 00 |
| 19 | Hexagon socket screw | 10 | 0211 1965 44 |
| 20 | Plug | 1 | 0686 3718 05 |
| 21 | Seal ring | 1 | 3315 3290 02 |
| 22 | O-ring | 1 | 0663 2120 00 |
| 23 | Charge valve | 1 | 3315 3660 00 |
| 24 | O-ring | 1 | 0663 2114 00 |
| 25 | Parallel pin | 1 | 0101 4140 00 |
| 26(27-30) | Pressure relief valve, complete | 1 | 3315 3658 00 |
| 27 | Pressure relief valve | 1 | |
| 28 | O-ring | 1 | 9125 6211 00 |
| 29 | O-ring | 1 | 0663 2104 21 |
| 30 | Back-up ring | 1 | 0661 2004 01 |
| 31 | Control valve | 1 | 3315 3121 00 |
| 43(44-46) | Restrictor standard, complete | 1 | 3315 3696 55 |
| 44 | Restrictor, standard | 1 | |
| 45 | O-ring | 1 | 0663 2104 21 |
| 46 | O-ring | 1 | 9125 6211 00 |
| 47 | Wiper | 1 | 0665 9099 49 |
| 48 | Piston rod seal | 1 | 0665 0701 34 |
| 49 | Beanseal | 2 | 0663 9900 27 |
| 50 | Liner | 1 | 3315 3025 00 |
| 51 | O-ring | 7 | 0663 2113 03 |
| 52 | O-ring | 1 | 0663 2115 06 |
| 53 | Piston | 1 | 3315 3024 00 |
| 54 | Piston rod seal | 1 | 0665 0701 33 |
| 55 | Back head | 1 | 3315 3034 00 |
| 56 | Hexagon head screw | 8 | 0147 1555 03 |
| 57(58-59) | Check valve, complete | 1 | 3315 2448 81 |
| 58 | Check valve | 1 | - |
| 59 | Valve rubber | 1 | 3315 2808 00 |
| 60 | Base plate, option | 1 | 3315 3077 00 |
| 61(62-63 ) | Set of screws, complete | 1 | 3315 3239 90 |
| 62 | Screw | 14 | - |
| 63 | Nut | 14 | - |
Exploded view
Our customers
Q1: Are you a manufacturer?
A: Yes, our factory was established in 2009.
Q2: Are you sure your product will fit my hydraulic breaker ?
A: Our equipments are suitable for most hydraulic breaker. Show us your excavator model, we'll confirm the solution.
Q3: Can you produce according to customers' design?
A: Sure, OEM/ODM service available. We are professional manufacturer in Guangzhou.
Q4: What's the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T, L/C, Western Union accepted, other terms can be negotiated.
Q5. How is your delivery time?
1) If the goods are in stock for 1-2 days.
2) If the goods are out of stock, they will be molded for 10-20 days.
3) If the goods are out of stock and are not formed, it takes 25-35 days.
Q6: How about the package?
A: Our equipments wrapped by stretch film, packed by pallet or polywood case; or as requested.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Serviceable hammer brands: Furukawa, Soosan, Atlas-Copco, Daemo, Komac, Komatsu, Everdigm, Krupp, NPK, MSB, Sandvik, Toku, Toyo, Montabert, D&A, Rammer, General, etc Hydraulic breaker seal kit.
Tag:Boom seal kit,hydraulic cylinder seals,Bucket seal kit,Komatsu Service Seal kit,Wheel loaders cylinder seal kit
