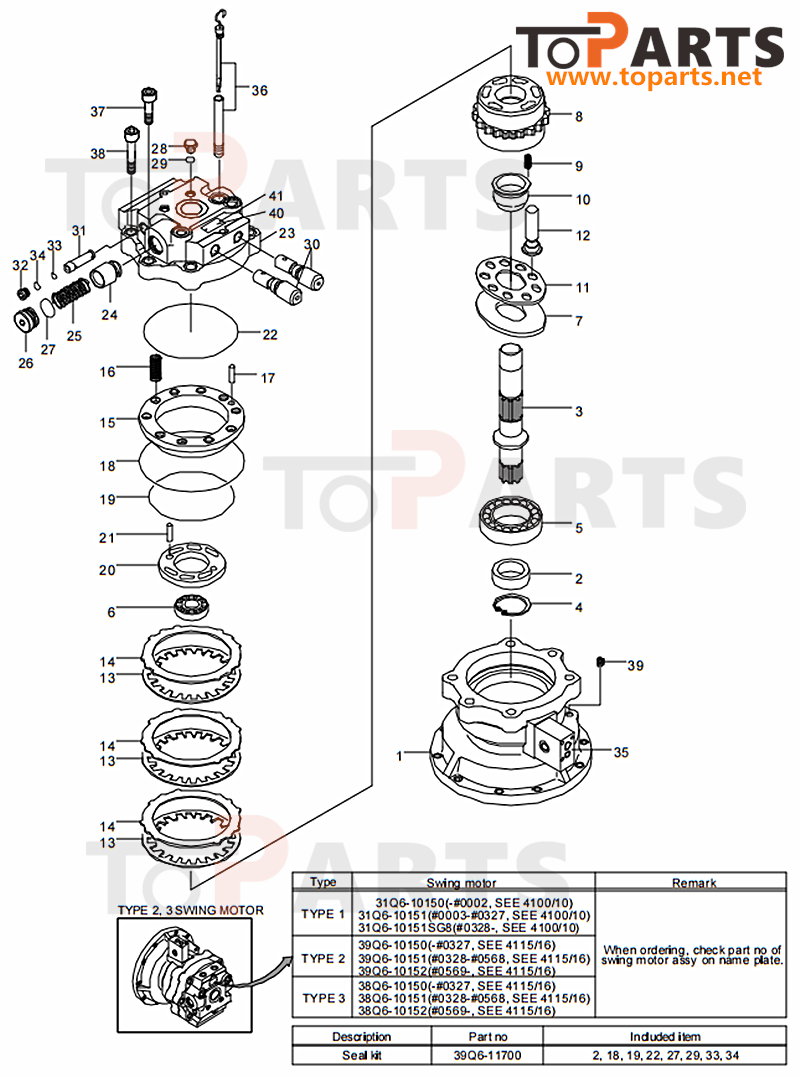

Parts list
|
No. |
Part No. |
Description |
Qty |
|
- |
@ |
Swing Motor Assy |
1 |
|
-1 |
39Q6-11100 |
Swing Motor Unit |
1 |
|
-1 |
39Q6-11101 |
Swing Motor Unit |
1 |
|
1 |
39Q6-11110 |
Casing |
1 |
|
*-A |
39Q6-11160 |
Rotary Kit |
1 |
|
*-B |
39Q6-11170 |
Cylinder Block Kit |
1 |
|
N8 |
39Q6-11180 |
Block-Cylinder |
1 |
|
N9 |
39Q6-41290 |
Spring |
9 |
|
*-C |
39Q6-11190 |
Retainer Kit |
1 |
|
N10 |
39Q6-11200 |
Guide-Ball |
1 |
|
N11 |
39Q6-11210 |
Plate-Retainer |
1 |
|
N12 |
39Q6-11220 |
Piston Assy |
9 |
|
K2 |
39Q6-11660 |
Seal-Oil |
1 |
|
3 |
39Q6-11120 |
Shaft |
1 |
|
4 |
S601-040004 |
Ring-Snap |
1 |
|
5 |
39Q6-11130 |
Bearing-Roller |
1 |
|
6 |
39Q6-11140 |
Bearing-Needle |
1 |
|
7 |
39Q6-11150 |
Plate-Swash |
1 |
|
13 |
39Q6-41361 |
Plate-Friction |
4 |
|
14 |
39Q6-41370 |
Plate-Separated |
4 |
|
15 |
39Q6-11250 |
Piston-Parking |
1 |
|
16 |
39Q6-11260 |
Spring-Brake |
26 |
|
17 |
S471-800454 |
Pin-Spring |
1 |
|
K18 |
Y172-043004 |
O-Ring |
1 |
|
K19 |
Y172-041004 |
O-Ring |
1 |
|
20 |
39Q6-11270 |
Plate-Valve |
1 |
|
21 |
S471-800254 |
Pin-Spring |
2 |
|
K22 |
Y172-042004 |
O-Ring |
1 |
|
23 |
39Q6-11280 |
Casing A-Valve |
1 |
|
23 |
39Q6-11281 |
Casing A-Valve |
1 |
|
24 |
39Q6-11290 |
Valve-Check |
2 |
|
25 |
39Q6-11300 |
Spring-Check Valve |
2 |
|
26 |
39Q6-11670 |
Plug |
2 |
|
26 |
39Q6-11671 |
Plug |
2 |
|
K27 |
S631-038004 |
O-Ring |
2 |
|
28 |
39Q6-41750 |
Plug |
3 |
|
K29 |
S631-011004 |
O-Ring |
3 |
|
30 |
39Q6-11311 |
Valve Assy-Relief |
2 |
|
31 |
39Q6-11420 |
Reactionless Vlv Assy |
2 |
|
32 |
39Q6-11500 |
Plug |
2 |
|
K33 |
S631-012004 |
O-Ring |
2 |
|
K34 |
S631-018004 |
O-Ring |
2 |
|
35 |
39Q6-11510 |
Valve Assy-Time Delay |
1 |
|
36 |
39Q6-11601 |
Gauge-Level |
1 |
|
37 |
S109-180456 |
Bolt-Socket |
2 |
|
38 |
S109-180556 |
Bolt-Socket |
4 |
|
39 |
P220-430202 |
Plug-Hex |
1 |
|
N40 |
39Q6-11650 |
Name Plate |
1 |
|
40 |
39Q6-11653 |
Name Plate |
1 |
|
41 |
39Q6-41800 |
Rivet |
2 |
|
-2 |
@ |
Swing Reduction Gear |
1 |
|
K |
39Q6-11700 |
Seal Kit |
1 |
|
Component Position |
Primary Part Number |
Related Assy Number |
Maintenance Suggestion |
|
Swing Motor |
39Q6-11700 |
39Q6-11100 |
Critical to prevent oil leakage into the swing gearbox; restores smooth rotation. |
|
Main Hydraulic Pump |
31Q6-10130 |
31Q6-10110 |
Essential for system pressure; replace if the machine feels slow or underpowered. |
|
Travel Motor (Final Drive) |
31Q6-40110 |
31Q6-40010 |
Heavy-duty seals for the undercarriage; prevents oil leaks and protects internal gears. |
|
Main Control Valve (MCV) |
31Q6-17250 |
31Q6-17110 |
Fixes sluggish or jerky movements across multiple hydraulic functions. |
|
Boom Cylinder |
31Q6-01601 |
31Q6-01010 |
Essential for lifting power; prevents "boom drift" during heavy loading operations. |
|
Arm / Stick Cylinder |
31Q6-01621 |
31Q6-01020 |
High-wear component; ensures digging precision and breakout force. |
|
Bucket Cylinder |
31Q6-01641 |
31Q6-01030 |
Most active cylinder; high-frequency replacement recommended for heavy digging. |
|
Center Joint (Swivel) |
31N8-01310 |
31N8-01210 |
Prevents travel power loss and cross-contamination between hydraulic circuits. |
Product Description

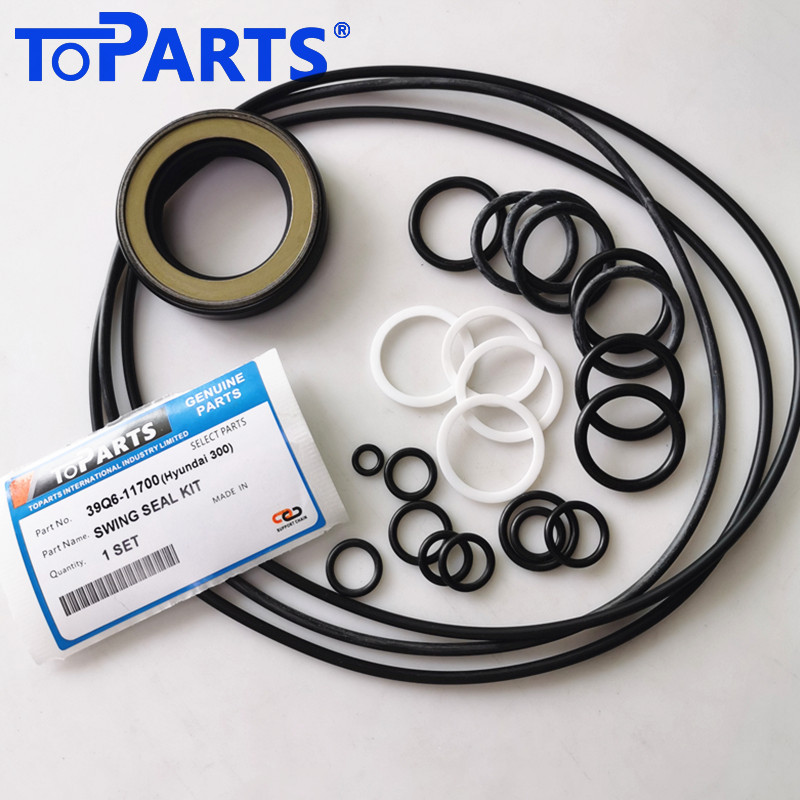

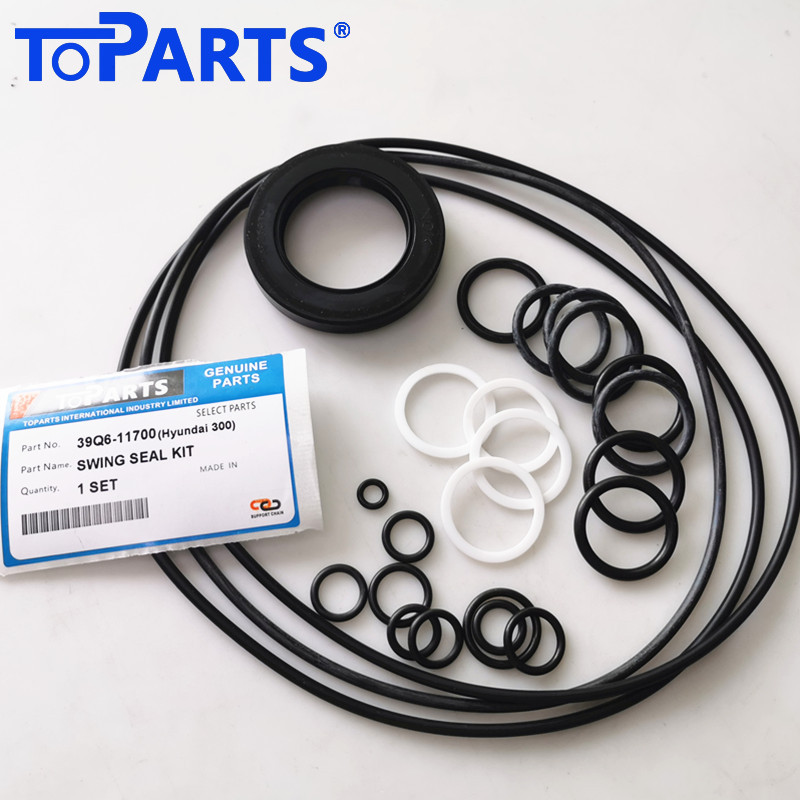

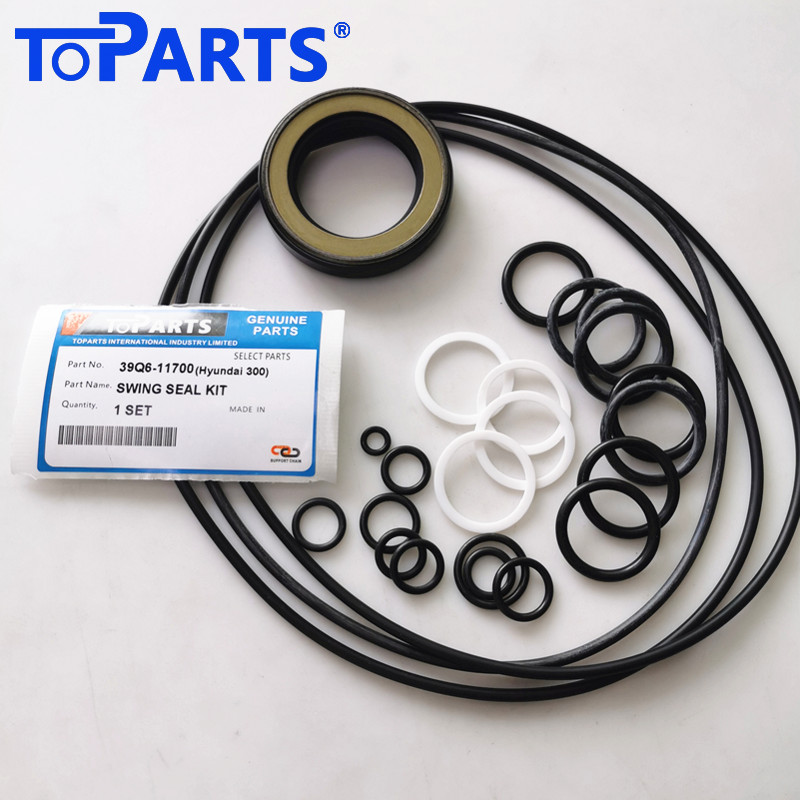

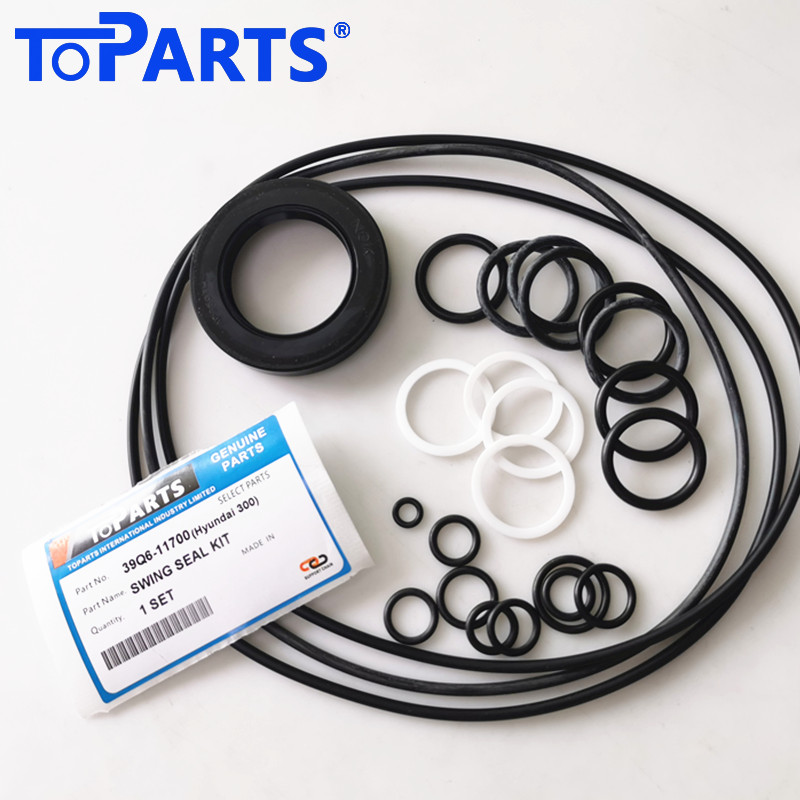

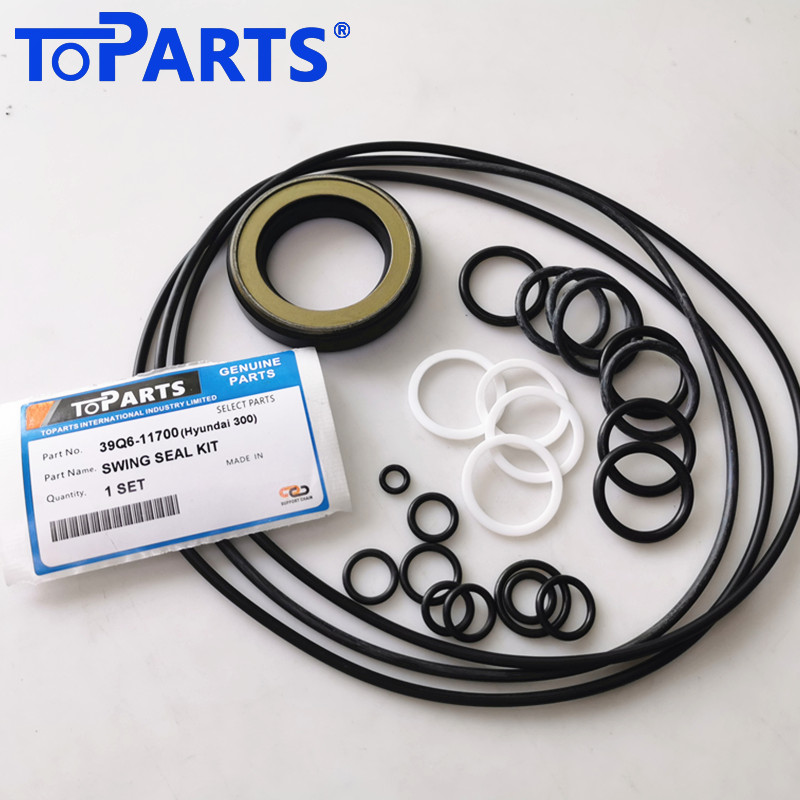

Premium Swing Motor Service Repair Kit 39Q6-11700 for Hyundai R220LC-9A
Restore the smooth, precise rotation of your Hyundai R220LC-9A excavator with the 39Q6-11700 Swing Motor Seal Kit. This kit is specifically engineered to service the 39Q6-11100 Swing Motor Assembly, providing a critical solution for preventing hydraulic oil leakage into the swing gearbox and maintaining system pressure.
At Toparts, we provide industrial-grade sealing solutions that meet or exceed OEM standards. Our R220LC-9A swing motor kits are manufactured using advanced materials to withstand the high torque and constant directional changes typical of excavation work.
Product Features:
Exact Fitment: Tailored specifically for the Hyundai R220LC-9A (9A Series) swing system.
Assembly Compatibility: Fully compatible with Swing Motor Assy 39Q6-11100.
Superior Material Quality: Features high-grade Fluororubber (FKM/Viton) and Nitrile (NBR) for excellent heat resistance and sealing integrity under high-pressure rotation.
Leak Prevention: Engineered to stop oil migration, protecting your swing machinery from lubrication failure and costly downtime.
Complete Kit: Includes all essential oil seals, O-rings, and backup rings required for a professional swing motor overhaul.
Technical Specifications:
Machine Brand: Hyundai
Model: R220LC-9A
Component Type: Swing Motor / Swing Device
Part Number (Seal Kit): 39Q6-11700
Part Number (Motor Assy): 39Q6-11100
Category: Hydraulic Motor Repair Components
Condition: 100% Brand New Aftermarket Replacement
Tag:Hydraulic pump seal kit,Travel motor seal kit,swing motor seal kit
