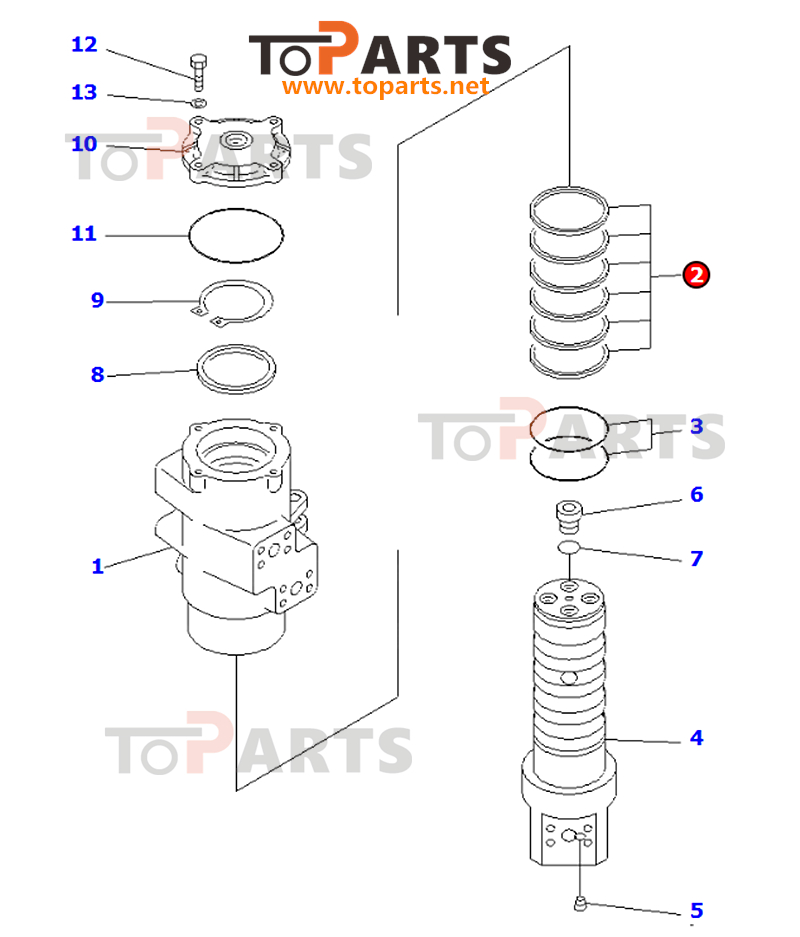

Parts list
|
№ |
Number |
Name |
Qty |
|
|
703-09-00120 |
SWIVEL JOINT ASS'Y |
|
|
|
703-09-33230 |
SWIVEL JOINT ASS'Y |
|
|
1 |
|
ROTOR |
1 |
|
2 |
703-09-95320 |
SEAL |
6 |
|
3 |
07000-15090 |
O-RING |
2 |
|
4 |
|
SHAFT |
1 |
|
5 |
07043-20108 |
PLUG |
1 |
|
6 |
703-09-98610 |
PLUG |
4 |
|
7 |
07002-12434 |
O-RING |
4 |
|
8 |
703-09-94210 |
RING |
1 |
|
9 |
04064-08530 |
RING,SNAP |
1 |
|
10 |
703-09-93610 |
COVER |
1 |
|
11 |
07000-02115 |
O-RING |
1 |
|
12 |
01010-80835 |
BOLT |
4 |
|
13 |
01643-30823 |
WASHER |
4 |
Our advantage: original system data to ensure accurate size

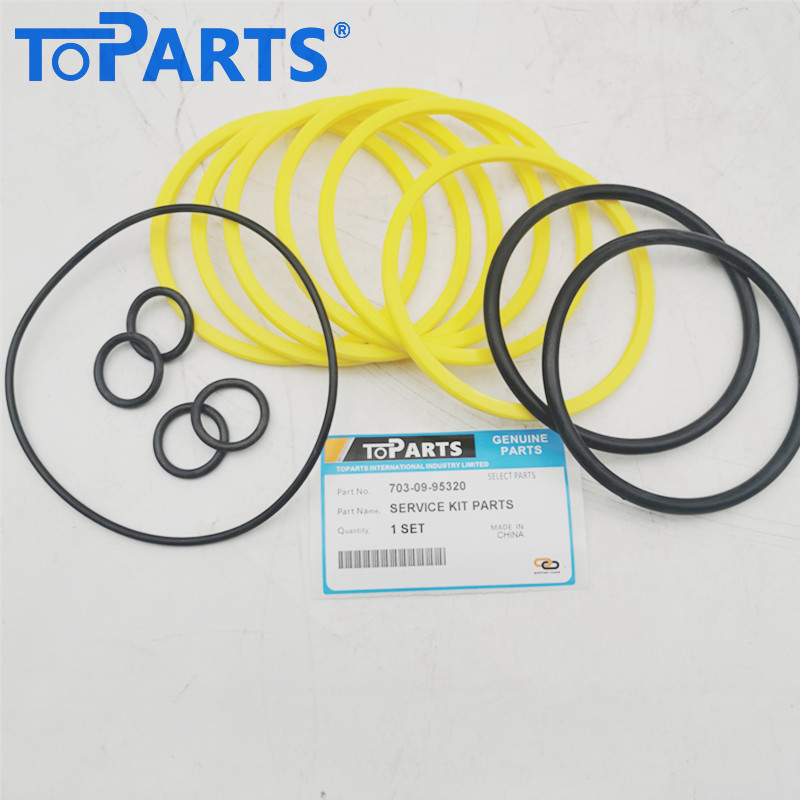

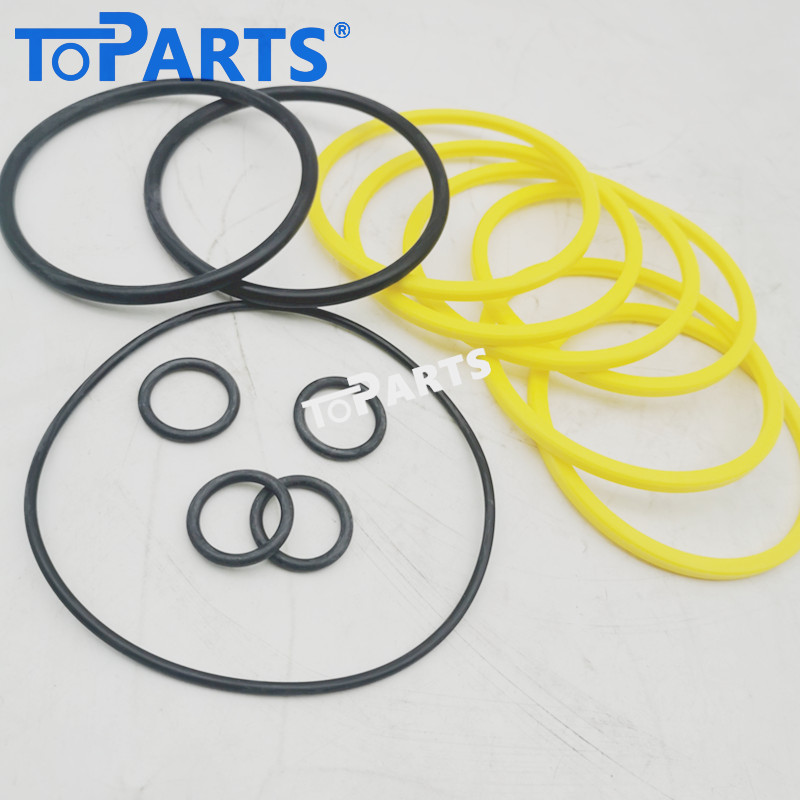

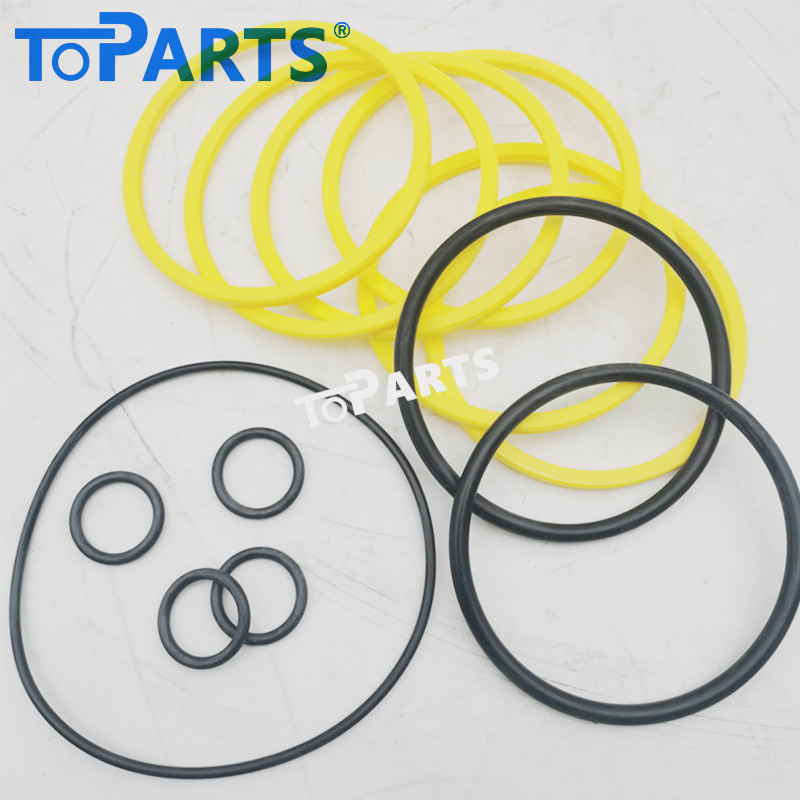

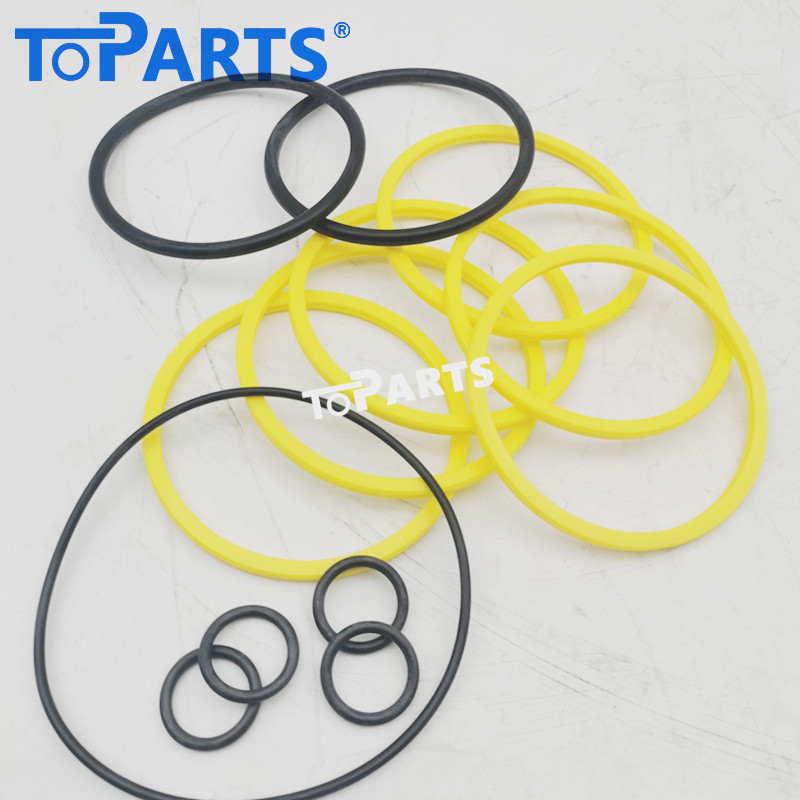

Toparts 703-09-95320 Center Joint Seal Kit for Komatsu PC200-6
Ensure the reliable, continuous, and leak-free hydraulic power transfer essential for smooth machine operation with the Toparts 703-09-95320 Center Joint Seal Kit. This crucial service and repair kit is specifically engineered for the Swivel Joint (Center Joint) on the Komatsu PC200-6 Excavator, corresponding to the joint assembly part number 703-09-00120.
Engineered for Komatsu PC200-6 Swivel Joint Integrity
The Center Joint is a vital component that allows the upper structure to rotate 360 degrees while transmitting hydraulic power to the travel motors in the lower carriage. This joint is subjected to high continuous pressure and rotational friction. A leaking swivel joint compromises travel functions and leads to cross-contamination. The Toparts 703-09-95320 seal kit is a high-precision, direct aftermarket replacement, meticulously crafted to meet the exact specifications for the Komatsu 703-09-00120 Swivel Joint Ass'y.
Key Features and Benefits:
Direct OEM Replacement: This kit is a seamless replacement for the Komatsu OEM part number 703-09-95320, guaranteeing perfect compatibility and integrity within the PC200-6 swivel joint assembly.
Superior Material Quality: We utilize specialized, high-performance materials (such as low-friction PTFE and resilient elastomers) built to withstand the unique demands of high-pressure rotary sealing and constant rotation.
Prevents Hydraulic Crossover: The kit ensures complete separation of hydraulic channels, preventing fluid mixing or pressure loss between the stationary lower carriage and the rotating upper structure, which is critical for steering and travel.
Restores Travel Function: By eliminating internal leaks, the seals restore full hydraulic pressure to the travel motors, maintaining the smooth, powerful, and simultaneous operation of travel and upper structure functions.
Extends Joint Life: Maintaining a perfect seal prevents contamination from entering the sophisticated joint mechanism, significantly extending the service life of this expensive core component.
Product Details:
Part Number (Seal Kit): 703-09-95320
Compatible Machine: Komatsu PC200-6 Excavator
Related Swivel Joint Ass'y No.: 703-09-00120
Application: Center Joint / Swivel Joint Hydraulic Seal Service & Repair
Manufacturer: Toparts
Don't compromise the travel and operational integrity of your excavator. Invest in the reliable Toparts 703-09-95320 Center Joint Seal Kit and ensure your Komatsu PC200-6 maintains flawless hydraulic control during every movement.
