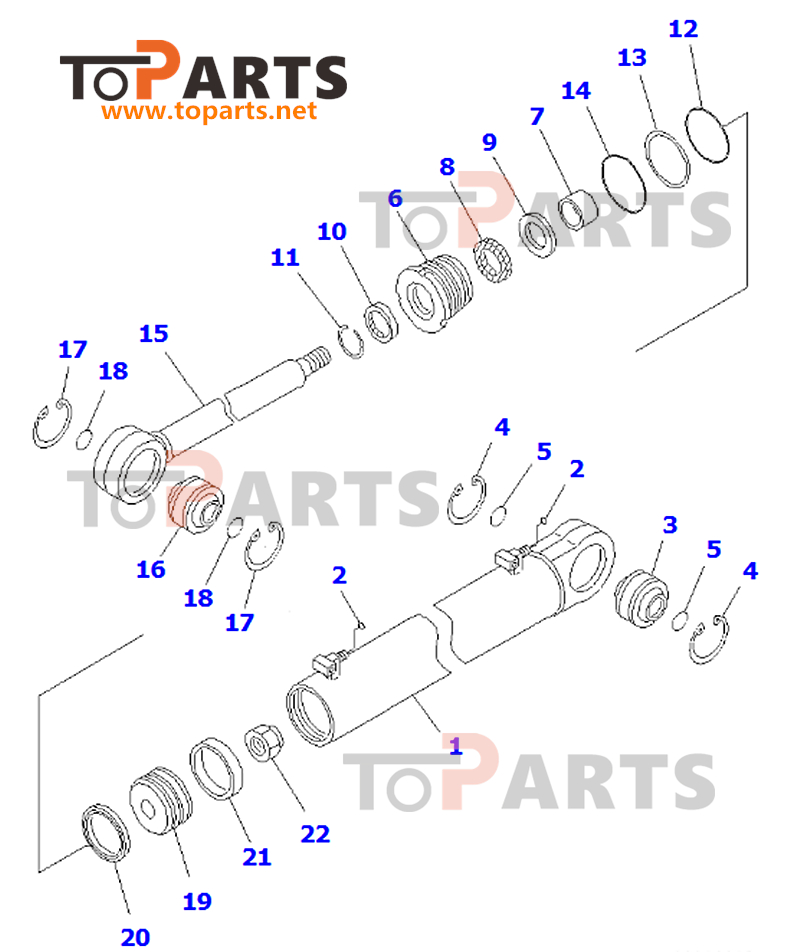

Parts list
|
NO. |
Number |
Name |
Qty |
|
|
707-00-0C691 |
CYLINDER ASS'Y,ANGLE |
2 |
|
1 |
721-11-11600 |
CYLINDER |
1 |
|
2 |
02896-11009 |
O-RING (KIT) |
2 |
|
3 |
707-46-04050 |
BUSHING |
1 |
|
4 |
04065-01030 |
RING,SNAP |
2 |
|
5 |
07000-13045 |
O-RING (KIT) |
2 |
|
6 |
707-29-11A50 |
HEAD,CYLINDER |
1 |
|
7 |
707-52-90400 |
BUSHING |
1 |
|
8 |
707-51-65030 |
PACKING,ROD (KIT) |
1 |
|
9 |
707-51-65640 |
RING,BUFFER (KIT) |
1 |
|
10 |
707-56-65540 |
SEAL,DUST (KIT) |
1 |
|
11 |
07179-12079 |
RING,SNAP |
1 |
|
12 |
07000-12105 |
O-RING (KIT) |
1 |
|
13 |
07146-02106 |
RING,BACK-UP (KIT) |
1 |
|
14 |
07000-12110 |
O-RING (KIT) |
1 |
|
15 |
707-58-65970 |
ROD, PISTON |
1 |
|
16 |
07137-04507 |
BUSHING |
1 |
|
17 |
04065-01030 |
RING,SNAP |
2 |
|
18 |
07000-13045 |
O-RING (KIT) |
2 |
|
19 |
707-36-11050 |
PISTON |
1 |
|
20 |
707-44-11180 |
RING,PISTON (KIT) |
1 |
|
21 |
07156-01112 |
RING,WEAR (KIT) |
1 |
|
22 |
707-67-45010 |
NUT |
1 |
|
K |
707-99-36550 |
SERVICE KIT |
2 |
Our advantage: original system data to ensure accurate size

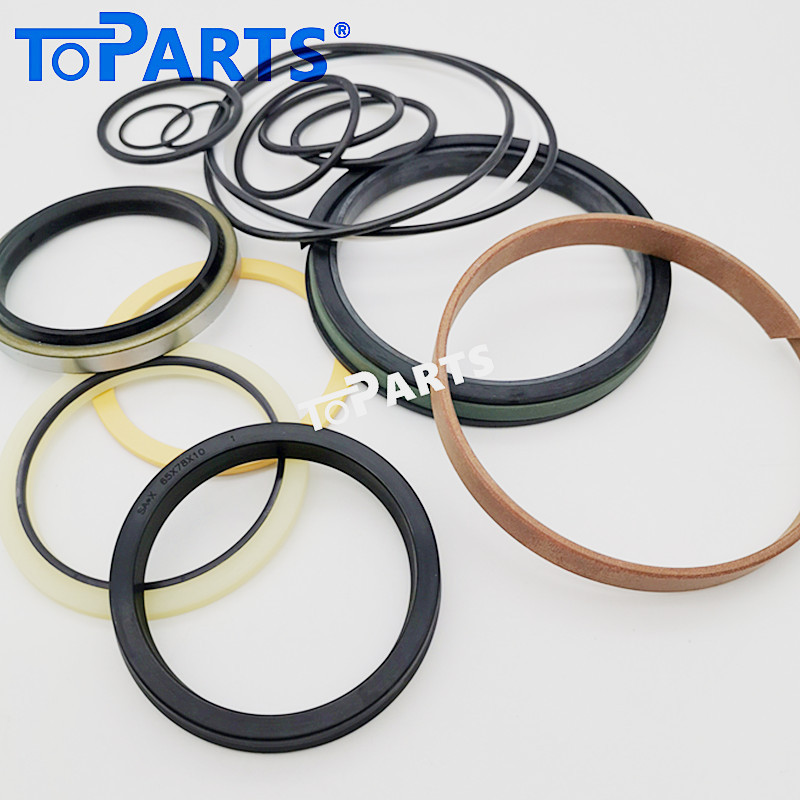

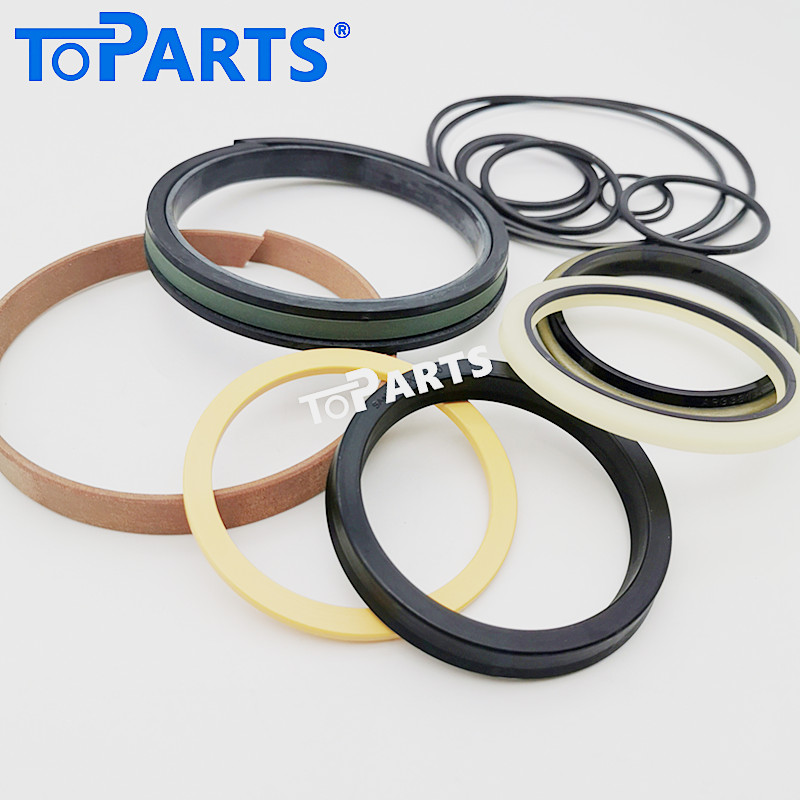

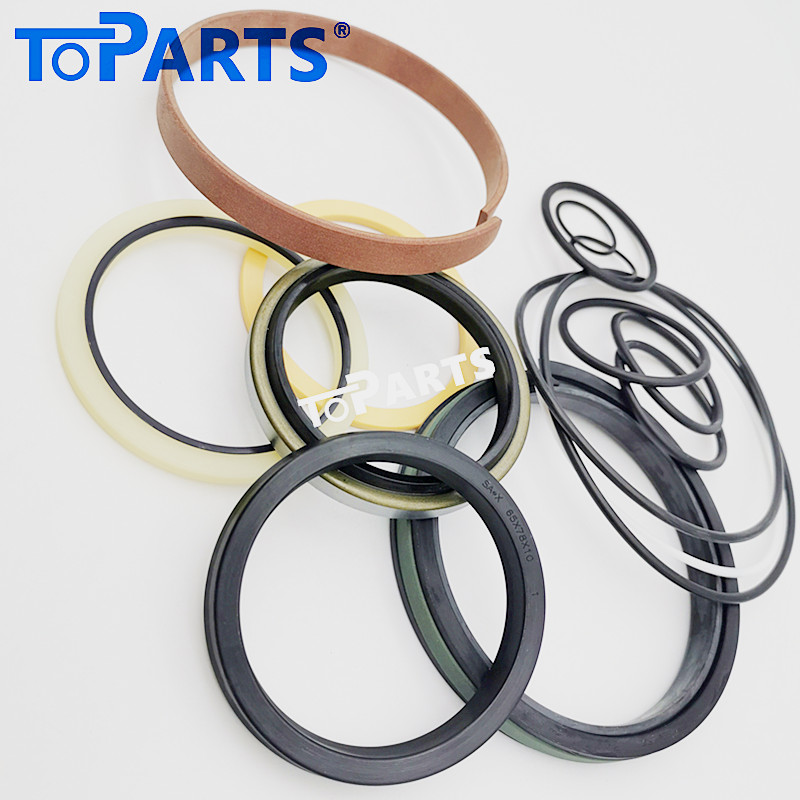

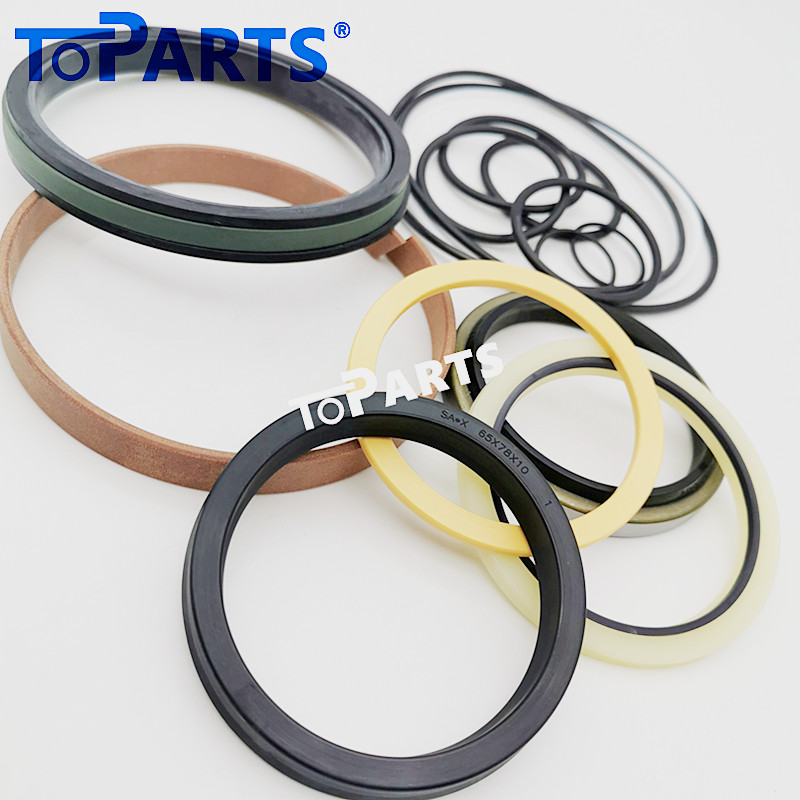

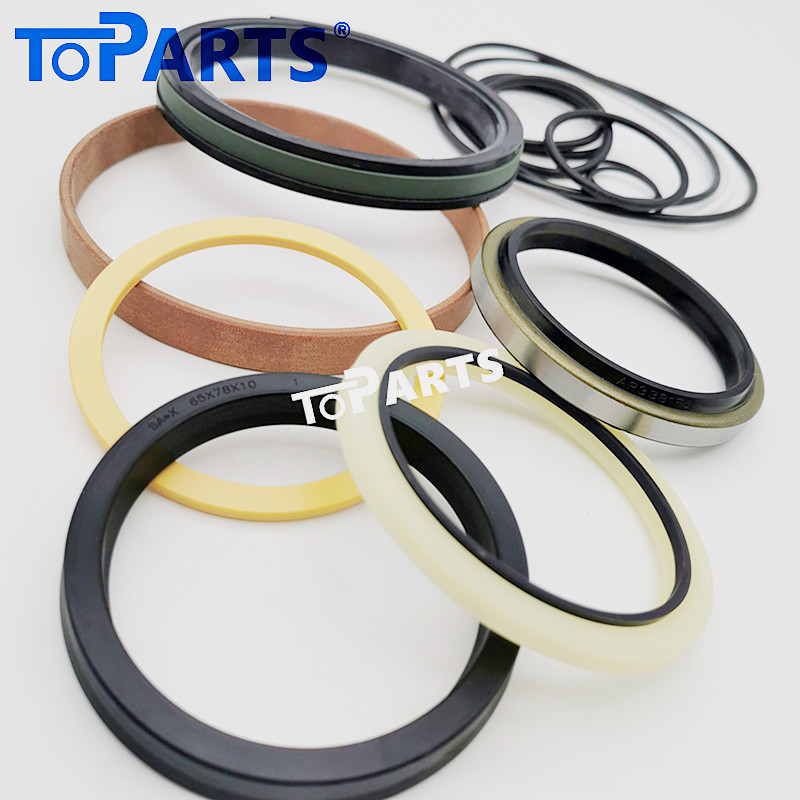

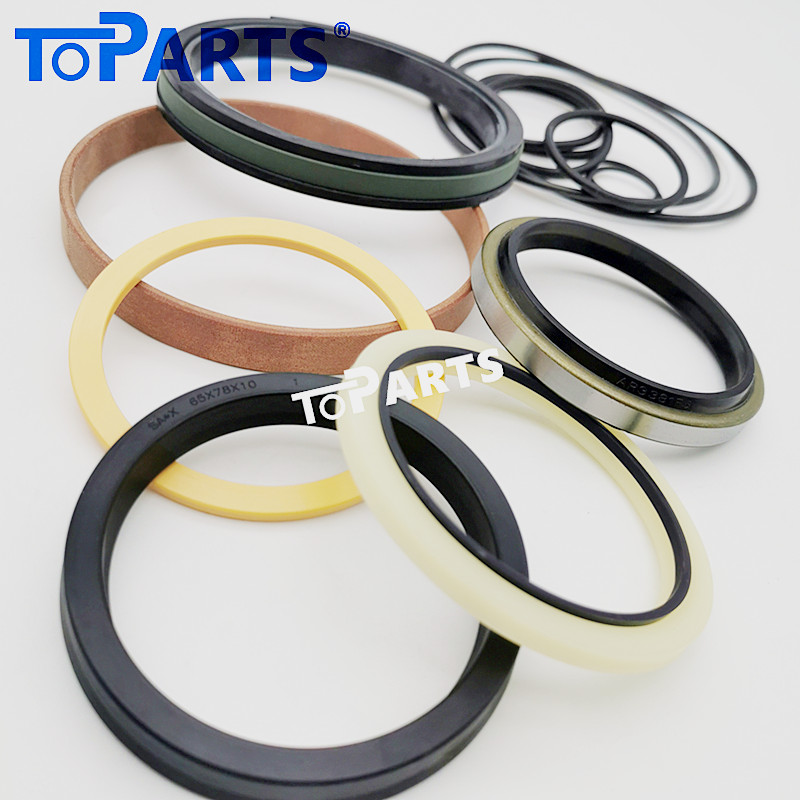

Toparts 707-99-36550 Hydraulic Cylinder Seal Kit for Komatsu D61PX-15
Maintain the precise blade control and powerful earthmoving performance of your crawler dozer with the Toparts 707-99-36550 Hydraulic Cylinder Seal Kit. This professional-grade service and repair kit is specifically engineered to restore the performance of the Angle Cylinder on the Komatsu D61PX-15 Crawler Dozer.
Engineered for Komatsu D61PX-15 Blade Precision
The angle cylinder is vital for the versatile "Power Angle Tilt" (PAT) blade of the D61PX-15. It allows the operator to precisely angle the blade for side-casting and specialized grading. Toparts understands that any internal leakage in this cylinder leads to "blade drift," where the blade fails to hold its set angle under load. Our 707-99-36550 seal kit is a high-precision, direct aftermarket replacement designed to ensure your dozer operates with factory-level responsiveness and stability.
Key Features and Benefits:
Direct OEM Replacement: Fully compatible with Komatsu OEM part number 707-99-36550, ensuring a perfect fit and seamless integration with the Angle Cylinder assembly.
Superior Material Quality: Manufactured using high-performance, wear-resistant polyurethane (PU) and reinforced elastomers. These materials are chosen for their ability to withstand the extreme pressure spikes and abrasive dust environments typical of heavy dozing work.
Eliminates Blade Drift: Precision-engineered piston and rod seals prevent hydraulic fluid bypass, ensuring the blade remains locked in your desired angle for superior grading accuracy and efficiency.
Maximum Contamination Protection: Includes a heavy-duty wiper seal designed to scrape away mud, grit, and moisture, protecting the internal hydraulic system and preventing expensive rod scoring.
Cost-Effective Reliability: Provides a high-quality, durable alternative to expensive OEM kits, allowing for professional-grade maintenance while reducing overall operational costs.
Product Details:
Part Number (Seal Kit): 707-99-36550
Compatible Machine: Komatsu D61PX-15 Crawler Dozer
Application: Blade Angle Cylinder Service & Repair
Manufacturer: Toparts
Don't let leaking seals compromise your grading accuracy or productivity. Invest in the Toparts 707-99-36550 Hydraulic Cylinder Seal Kit to keep your Komatsu D61PX-15 performing at its peak.
