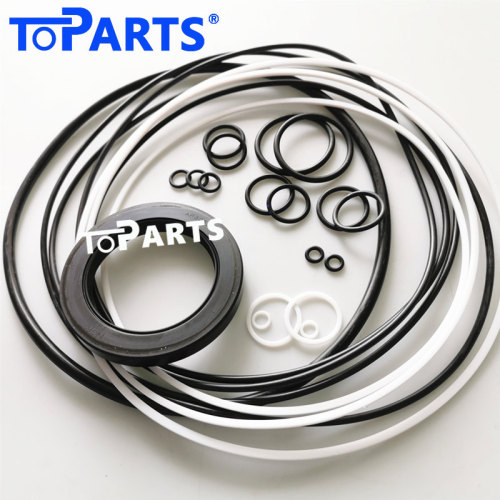

Model:7Y-4222 Travel motor seal kit
Part Name:Travel motor Seal Kit
Motor Part Number:209-5992
Part Number:7Y-4222
For:Caterpillar 311C,313D2LGP,315C,315D L,316EL,318B,318C,318DL,318D2L,318EL,319D,319DL,319DLN,320L,320B,320BL,320C,320CL,320D,320DFM,320DGC,320DL,320DLN,320DLRR,320DRR,320D2L
Material:Steel+NBR
Certification:IOS 9000
Packaging Details: bag or box +carton
Delivery Time:2-5days upon payments confirmed
Brand: Caterpillar,TOPARTS, OEM or as Required
Payment Terms:TT/Paypal/WEST UNION
Supply Ability:500
MOQ:1set
Parts list
Application chart
Our advantage: original system data to ensure accurate size
Our customers
Toparts Provide best sealing solutions,our main products are: Hydraulic Breaker seal kit, Excavator seal kit, Crane seal kit, Wheel Loaders seal kit, Crawler Dozers seal kit, Pump seal kit, Motor seal kit, Dump Trucks seal kit.
Seal kit for Excavator
Hydraulic cylinder seal kit
Boom seal kit;Arm seal kit;Bucket seal kit;
hydraulic pump seal kit
Swing motor seal kit,
Travel motor seal kit,
Polit Control seal kit,
Control valve seal kit
Center Joint seal kit,
Track Adjuster seal kit,
Gear Pump seal kit.
Serviceable excavator brands: Komatsu, Caterpillar, Hitachi, Kobelco, Sumitomo, Doosan, Hyundai, Kato, Volvo, JCB, Sany, etc.
Tag:Bulldozer seal kit,Tilt Cylinder seal kit,Lift Cylinder seal kit
Part Name:Travel motor Seal Kit
Motor Part Number:209-5992
Part Number:7Y-4222
For:Caterpillar 311C,313D2LGP,315C,315D L,316EL,318B,318C,318DL,318D2L,318EL,319D,319DL,319DLN,320L,320B,320BL,320C,320CL,320D,320DFM,320DGC,320DL,320DLN,320DLRR,320DRR,320D2L
Material:Steel+NBR
Certification:IOS 9000
Packaging Details: bag or box +carton
Delivery Time:2-5days upon payments confirmed
Brand: Caterpillar,TOPARTS, OEM or as Required
Payment Terms:TT/Paypal/WEST UNION
Supply Ability:500
MOQ:1set
Parts list
| NO. | Part Number | Quantity | Part Name |
| NPR | 209-5992 | 1 | MOTORGP-TRAVEL |
| R | 10R-2154 | 1 | MOTOR GP-PS-F-B |
| 1 | 209-5894 | 1 | SHAFT |
| 2 | 087-4743 | 2 | STOP |
| 3 | 094-1399 | 1 | RING-RETAINING |
| 4 | 7Y-4212 | 1 | BEARING |
| 5 | 087-4757 | 2 | PISTON |
| 6 | 107-6969 | 1 | BODY |
| 7 | 122-5114 | 1 | GUIDE-BALL |
| 8 | 209-5909 | 1 | PLATE-CAM |
| 9 | 147-5860 | 1 | PISTON AS |
| 10 | 133-6777 | 1 | BARREL AS |
| 11 | 107-6954 | 4 | PLATE-FRICTION |
| 12 | 107-6955 | 5 | PLATE-SEPARATOR |
| 13 | 096-1523 | 1 | GUIDE-PISTON |
| 14 | 7Y-4213 | 1 | PISTON-BRAKE |
| 15 | 7Y-4202 | 1 | HEAD |
| 16 | 8T-4944 | 10 | BOLT-SOCKET HEAD |
| 17 | 096-1521 | 1 | SHIM |
| 18 | 096-3785 | 1 | SHIM |
| 19 | 096-3786 | 1 | SHIM |
| 20 | 096-3787 | 1 | SHIM |
| 21 | 096-1522 | 1 | SHIM |
| 22 | 096-3788 | 1 | SHIM |
| 23 | 096-5916 | 2 | SEAT |
| 24 | 2D-6642 | 2 | BALL |
| 25 | 095-1572 | 2 | SEAL-O-RING |
| 26 | 096-5919 | 2 | RING-BACKUP |
| 27 | 096-5915 | 2 | RETAINER |
| 28 | 096-4003 | 1 | SET-BEARING |
| NPR | 7Y-4234 | RACE-NEEDLE ROLLER | |
| 29 | J095-1585 | 1 | SEAL-O-RING |
| 30 | 087-4742 | 1 | VALVE |
| 31 | 096-1519 | 1 | SEAT |
| 32 | 095-7380 | 1 | SPRING |
| 33 | 095-7382 | 1 | RETAINER |
| 34 | 094-1875 | 1 | DOWEL |
| 35 | 095-7378 | 1 | WASHER SET |
| 36 | 8T-6759 | 10 | PLUG-PIPE |
| 37 | 095-1575 | 3 | SEAL-O-RING |
| 38 | 096-4378 | 1 | RING-BACKUP |
| 39 | 096-4377 | 2 | SEAL-O-RING |
| 40 | 8T-6759 | 1 | PLUG-PIPE |
| 41 | 095-7384 | 1 | SEAL-O-RING |
| 42 | 095-7383 | 1 | SEAL-O-RING |
| 43 | 095-7386 | 1 | RING-BACKUP |
| 44 | 095-7387 | 1 | RING |
| 45 | 095-1685 | 1 | SEAL-O-RING |
| 46 | 118-4057 | 9 | SPRING |
| 47 | 7Y-4215 | 1 | SPACER |
| 48 | 095-1586 | 2 | SEAL-O-RING |
| 49 | 7Y-4217 | 2 | RING-BACKUP |
| 50 | 096-4376 | 1 | SEAL-LIP TYPE |
| 51 | 123-2008 | 2 | KEY |
| 54 | 3K-0360 | 1 | SEAL-O-RING |
| 55 | 9S-4185 | 1 | PLUG-O-RING |
| 56 | 095-1700 | 2 | SEAL-O-RING |
| 57 | 7Y-4224 | 2 | ORIFICE |
| 58 | 096-3978 | 1 | SPRING |
| 59 | 7Y-4216 | 1 | SPOOL |
| 60 | 2M-9780 | 1 | SEAL-O-RING |
| 61 | 087-4786 | 1 | ADAPTER |
| 62 | 121-1558 | 2 | PIN |
| 64 | 094-1882 | 11 | PLUG |
| 65 | 7Y-4222 | 1 | KIT-SEAL |
