Parts list
|
RHB320-6:Seal Kit |
|||
|
ITEM |
PART NO. |
PART NAME |
QTY |
|
K1 |
AB202-0073A |
Seal Kit |
1 |
|
K2 |
AB202-0029 |
Piston Lower Part Seal Kit |
1 |
|
|
AA053-0061 |
-Buffer Ring |
-1 |
|
|
AA053-0062 |
-U-Packing |
-1 |
|
|
AA054-0030 |
-Dust Seal |
-1 |
|
K3 |
AB202-0075A |
Piston Upper Part Seal Kit |
1 |
|
|
A057-0018 |
-Gas Seal |
-1 |
|
|
AA056-0068 |
-Step Seal |
-2 |
|
|
S8011601 |
-O-ring |
-2 |
|
K4 |
AA062-0100 |
Swivel Joint Seal Kit |
2 |
|
|
AA056-0030 |
-Rotary Seal |
-2 |
|
|
S8000181 |
-O-ring |
-1 |
|
|
A051-2192 |
-O-ring |
-1 |
|
K5 |
AB202-0028 |
Normal Seal Kit |
1 |
|
|
S8000051 |
-O-ring |
-1 |
|
|
S8000111 |
-O-ring |
-12 |
|
|
S8000121 |
-O-ring |
-1 |
|
|
S8000141 |
-O-ring |
-5 |
|
|
S8000151 |
-O-ring |
-1 |
|
|
S8000181 |
-O-ring |
-3 |
|
|
S8000201 |
-O-ring |
-1 |
|
|
S8000241 |
-O-ring |
-2 |
|
|
S8000291 |
-O-ring |
-1 |
|
|
S8000491 |
-O-ring |
-1 |
|
|
S8000651 |
-O-ring |
-1 |
|
|
S8000701 |
-O-ring |
-1 |
|
|
S8010251 |
-O-ring |
-2 |
|
|
S8010301 |
-O-ring |
-1 |
|
|
S8011601 |
-O-ring |
-1 |
|
|
S8060181 |
-Back-up Ring |
-1 |
|
|
S8090251 |
-Back-up Ring |
-1 |
|
|
A052-0007 |
-Back-up Ring |
-1 |
|
|
A053-0085D024 |
-Static Seal |
-2 |
|
|
A053-0085D032 |
-Static Seal |
-1 |
|
|
A083-1066 |
-O-ring |
-1 |
|
|
A052-0023 |
-Protect Ring |
-1 |
Product Description

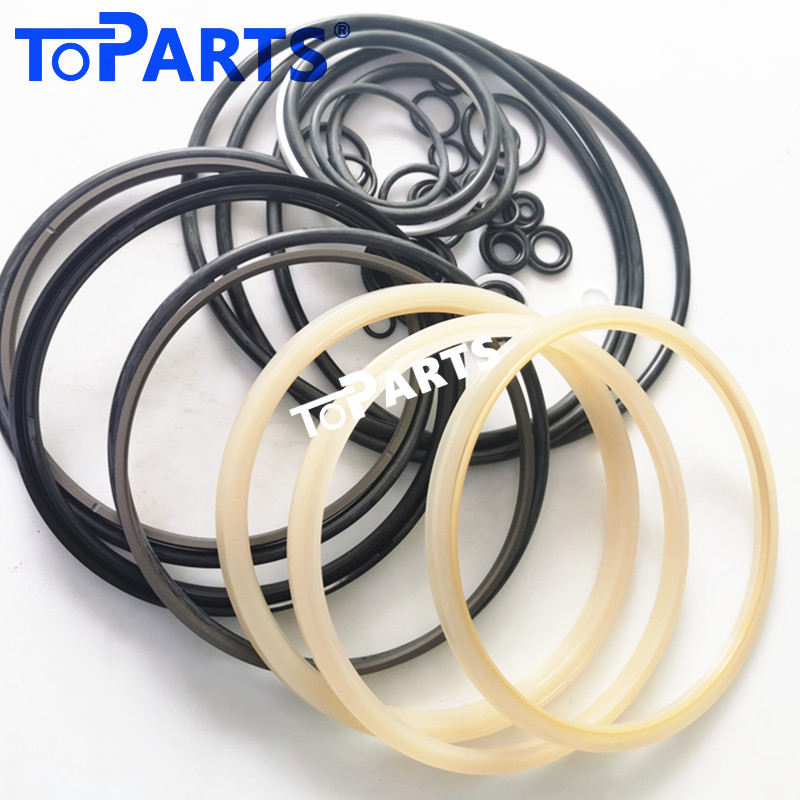

High-Performance AB202-0073A Hydraulic Breaker Service Repair Kit for Everdigm RHB320
Ensure the peak operational efficiency of your Everdigm RHB320 hydraulic rock hammer with the AB202-0073A seal repair kit. Designed for mid-to-heavy excavators in the 18-25 ton range, the RHB320 requires a precision sealing system to manage high-pressure hydraulic flow and the intense kinetic energy of rock demolition.
At Toparts, our Everdigm-compatible kits are manufactured using premium-grade materials that provide an exact fit and exceptional wear resistance. This kit is engineered to prevent internal oil bypass and external leaks, keeping your equipment running smoothly on the most demanding job sites.
Product Highlights:
Exact Fitment: Precision-engineered specifically for the Everdigm RHB320 hydraulic breaker (Part Number: AB202-0073A).
Premium Material Grade: Utilizes high-tensile Polyurethane (PU) and NBR to ensure superior elasticity, heat resistance, and sealing integrity under high-frequency impact.
Impact Power Restoration: Prevents nitrogen gas leakage and hydraulic fluid loss, ensuring your hammer delivers its full rated striking energy.
Extended Service Life: Formulated to withstand the harsh vibrations and thermal cycles typical of continuous demolition and trenching.
Complete Overhaul Kit: Includes all essential rod seals, buffer seals, dust wipers, and specialized O-rings for a professional and reliable repair.
Technical Specifications:
Brand Compatibility: Everdigm (Hanwoo)
Model: RHB320
Part Number: AB202-0073A
Component Type: Hydraulic Breaker / Rock Hammer
Materials: Premium PU, NBR, PTFE + Bronze
Condition: 100% Brand New Industrial-Grade Aftermarket
