Description

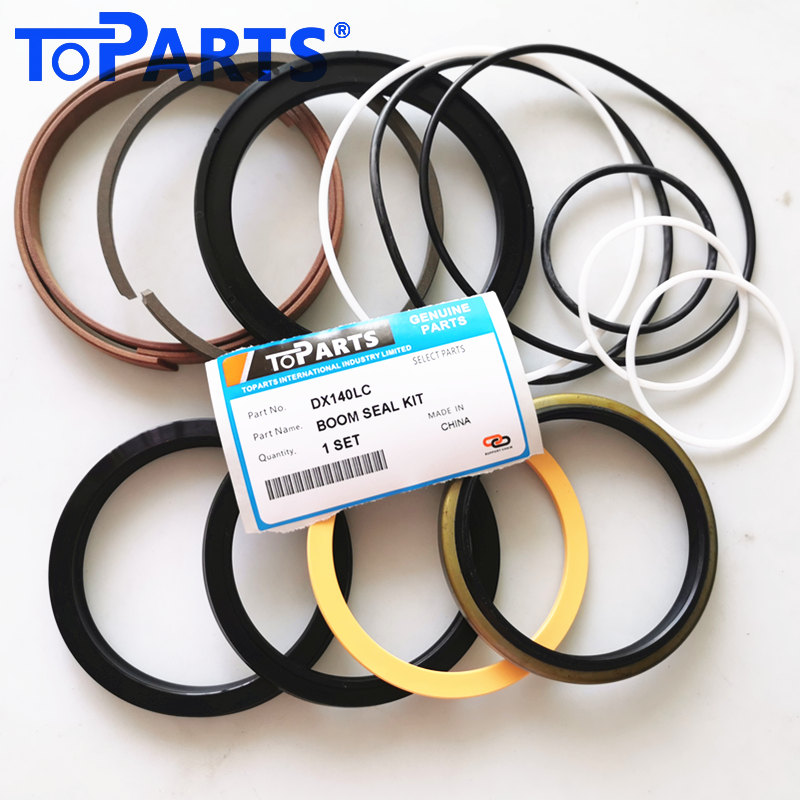

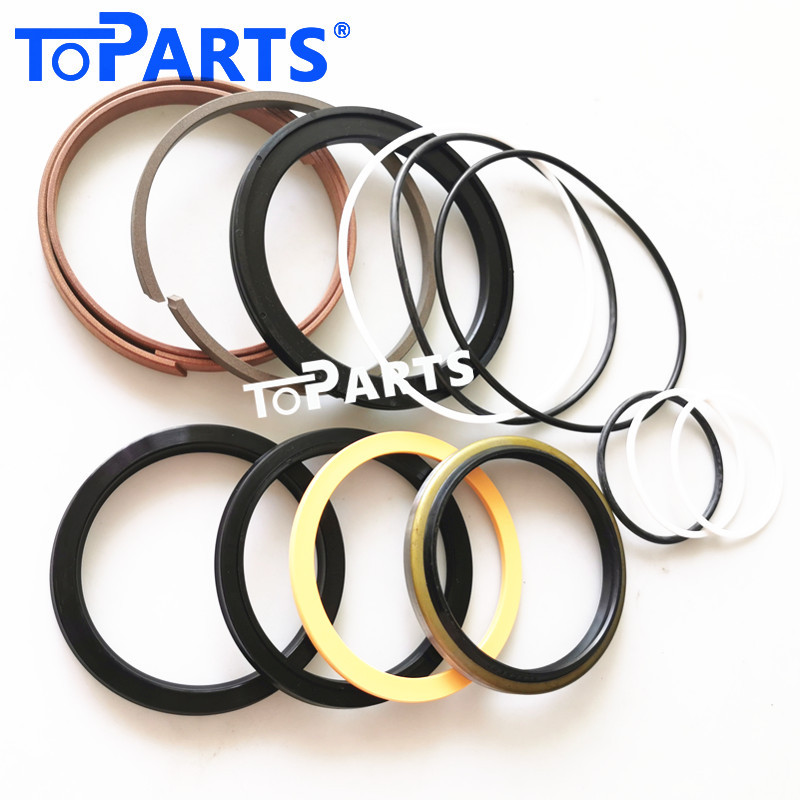

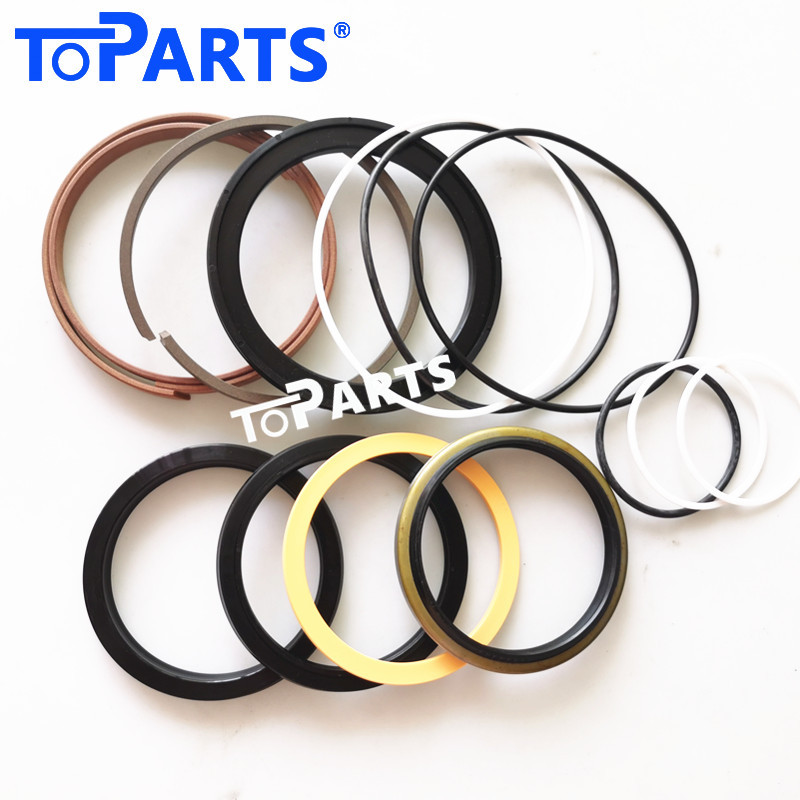

Model:K9002306 Hydraulic cylinder seal kit
Part Name:K9002306
Cylinder Number:K1026244A,400309-01122,440-00408B,440-00409B,400309-00959A,400305-00600A,400309-01151,K1008752,K1027318,K1027317,400309-00958,K1008738,K1027314,K1027313,K1026247A,400309-00953
Rod:75MM
Piston:110MM
For:Doosan DH150W-7,DX140LC,DX160LC-3,DX150LC,DX170W,DX180LC,DX190W-3
Material :PU+NBR+PTFE
Certification: IOS 9001
Packaging Details: bag or box +carton
Delivery Time:2-5days upon payments confirmed
Brand:TOPARTS, OEM or as Required
Payment Terms:TT/Paypal/WEST UNION
Supply Ability:500
MOQ:1set
Parts list

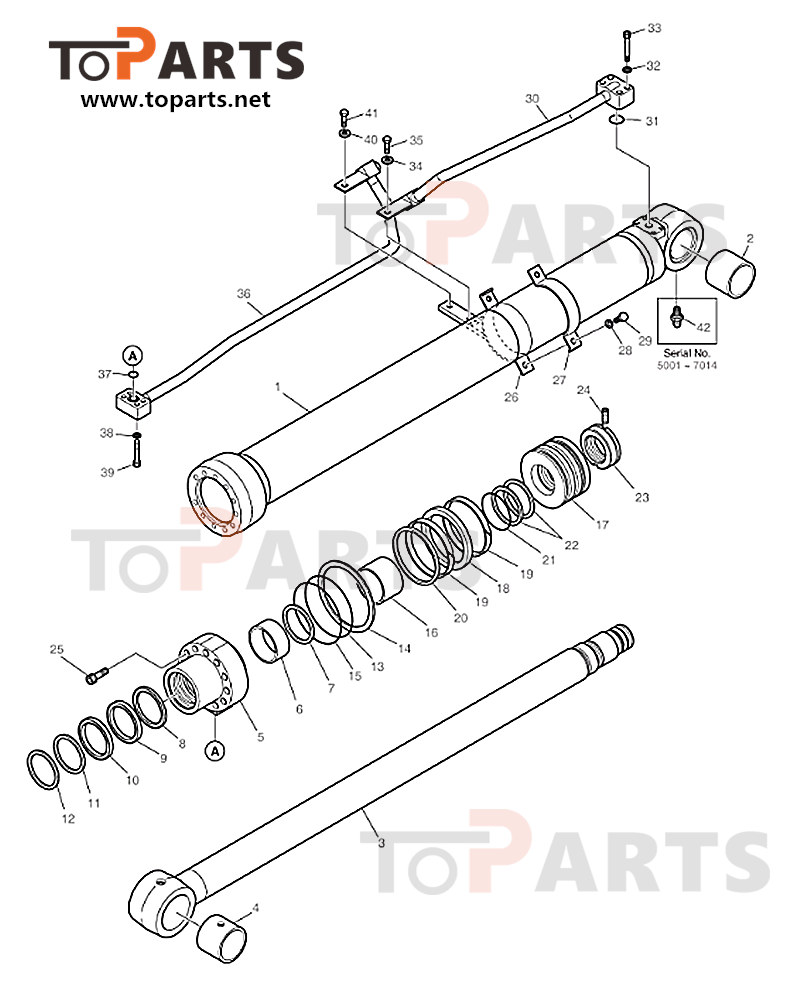

Exploded view
Our advantage: original system data to ensure accurate size
Our customers
Toparts Provide best sealing solutions,our main products are: Hydraulic Breaker seal kit, Excavator seal kit, Crane seal kit, Wheel Loaders seal kit, Crawler Dozers seal kit, Pump seal kit, Motor seal kit, Dump Trucks seal kit.
Seal kit for Excavator
Hydraulic cylinder seal kit
Boom seal kit;Arm seal kit;Bucket seal kit;
hydraulic pump seal kit
Swing motor seal kit,
Travel motor seal kit,
Polit Control seal kit,
Control valve seal kit
Center Joint seal kit,
Track Adjuster seal kit,
Gear Pump seal kit.
Serviceable excavator brands: Komatsu, Caterpillar, Hitachi, Kobelco, Sumitomo, Doosan, Hyundai, Kato, Volvo, JCB, Sany, etc.
Tag:Boom seal kit,hydraulic cylinder seals,Bucket seal kit
Part Name:K9002306
Cylinder Number:K1026244A,400309-01122,440-00408B,440-00409B,400309-00959A,400305-00600A,400309-01151,K1008752,K1027318,K1027317,400309-00958,K1008738,K1027314,K1027313,K1026247A,400309-00953
Rod:75MM
Piston:110MM
For:Doosan DH150W-7,DX140LC,DX160LC-3,DX150LC,DX170W,DX180LC,DX190W-3
Material :PU+NBR+PTFE
Certification: IOS 9001
Packaging Details: bag or box +carton
Delivery Time:2-5days upon payments confirmed
Brand:TOPARTS, OEM or as Required
Payment Terms:TT/Paypal/WEST UNION
Supply Ability:500
MOQ:1set
Parts list
| Key No | Part No | Description | Qty |
| - | K1026244A | CYLINDER;BOOM(R.H) | 1 |
| - | 400309-01122 | CYLINDER,BOOM(R.H) | 1 |
| 1 | K9005419 | TUBE ASS'Y | 1 |
| 2 | 110-00244 | BUSH | 1 |
| 3 | K9005420 | ROD ASS'Y | 1 |
| 4 | 110-00244 | BUSH | 1 |
| 5 | K9001384 | COVER;ROD | 1 |
| 5 | 110508-23664A | COVER,ROD | 1 |
| 6 | 110-00082 | DD-BUSH | 1 |
| 7 | 115-00052 | RING;RETAINING | 1 |
| 8 | K9001385 | SEAL;BUFFER | 1 |
| 9 | K9001386 | U-PACKING | 1 |
| 10 | K9001396 | RING;BACK UP | 1 |
| 11 | 115-00060 | WIPER;DUST | 1 |
| 12 | 115-00050 | RING;RETAINING | 1 |
| 13 | S8011051 | O-RING | 1 |
| 14 | 1.180-00268 | RING;BACK UP | 1 |
| 15 | S8011101 | O-RING | 1 |
| 16 | K9001387 | RING;CUSHION | 1 |
| 17 | K9001388 | PISTON | 1 |
| 18 | K9001389 | SEAL;SLIPPER | 1 |
| 19 | 115-00056 | RING;WEAR | 2 |
| 20 | K9001390 | RING;DUST | 1 |
| 21 | 180-00247 | O-RING | 1 |
| 22 | 1.180-00269 | RING;BACK UP | 2 |
| 23 | 121-00043 | NUT,PISTON | 1 |
| 24 | 1.120-00219 | SCREW;SET | 1 |
| 25 | S2219071 | BOLT;HEX. SOCKET | 11 |
| 26 | K9001391 | BAND ASSY,PIPE | 1 |
| 27 | 124-00055 | BAND;PIPE | 1 |
| 28 | S5100603 | WASHER | 2 |
| 29 | S0558153 | BOLT | 2 |
| 30 | K9005425 | PIPE ASS'Y-H(R.H) | 1 |
| 31 | S8000281 | O-RING | 1 |
| 32 | S5100603 | WASHER | 4 |
| 33 | S2212761 | BOLT;SOCKET | 4 |
| 34 | S5100603 | WASHER | 1 |
| 35 | S0511863 | BOLT;HEX. | 1 |
| 36 | K9005421 | PIPE ASS'Y-R(R.H) | 1 |
| 36 | 420210-02719 | PIPE ASSY;R(R.H) | 1 |
| 37 | S8000201 | O-RING | 1 |
| 38 | S5100503 | WASHER | 4 |
| 39 | S2209561 | BOLT;SOCKET M8X1.25X45 | 4 |
| 40 | S5100603 | WASHER | 1 |
| 41 | S0511863 | BOLT;HEX. | 1 |
| 41 | S0511853 | BOLT | 1 |
| 42 | S6710032 | NIPPLE;GREASE | 1 |
| * | K9002306 | SEAL KIT | 1 |
Our advantage: original system data to ensure accurate size
Our customers
Toparts Provide best sealing solutions,our main products are: Hydraulic Breaker seal kit, Excavator seal kit, Crane seal kit, Wheel Loaders seal kit, Crawler Dozers seal kit, Pump seal kit, Motor seal kit, Dump Trucks seal kit.
Seal kit for Excavator
Hydraulic cylinder seal kit
Boom seal kit;Arm seal kit;Bucket seal kit;
hydraulic pump seal kit
Swing motor seal kit,
Travel motor seal kit,
Polit Control seal kit,
Control valve seal kit
Center Joint seal kit,
Track Adjuster seal kit,
Gear Pump seal kit.
Serviceable excavator brands: Komatsu, Caterpillar, Hitachi, Kobelco, Sumitomo, Doosan, Hyundai, Kato, Volvo, JCB, Sany, etc.
Tag:Boom seal kit,hydraulic cylinder seals,Bucket seal kit
