| NO. | Part Number | Quantity | Product name |
| VOE11005470 | 1 | Hydraulic cylinder | |
| VOE11088115 | 1 | Hydraulic cylinder | |
| VOE11088497 | 1 | Hydraulic cylinder | |
| VOE11088807 | 1 | Hydraulic cylinder | |
| 1 | VOE11005320 | 1 | •Cylinder tube |
| VOE11088116 | 1 | •Cylinder tube | |
| 2 | VOE11093771 | 1 | •Bushing |
| 3 | VOE11005099 | 2 | •Scraper ring |
| 4 | VOE11088821 | 1 | •Piston rod |
| 5 | VOE13960229 | 1 | •O-ring |
| VOE11088029 | 1 | •O-ring | |
| VOE11088029 | 1 | •O-ring | |
| 5A | VOE4881099 | 1 | •Back-up ring |
| 6 | VOE11005471 | 1 | •Piston |
| 7 | VOE11088467 | 1 | •Piston seal |
| 8 | VOE11005323 | 1 | •Guide ring |
| 9 | VOE4833164 | 3 | •Screw |
| 10 | VOE11088802 | 1 | •Piston rod guide |
| VOE11088802 | 1 | •Piston rod guide | |
| 11 | VOE925036 | 1 | •O-ring |
| 12 | VOE4787039 | 1 | •Back-up ring |
| 13 | VOE11005427 | 2 | •Bushing |
| 14 | VOE11107371 | 1 | •Piston rod seal |
| 15 | VOE11005107 | 1 | •Piston rod seal |
| 16 | VOE11005061 | 1 | •Scraper ring |
| 17 | VOE4782860 | 8 | •Hex. socket screw |
| 18 | VOE941912 | 8 | •Spring washer |

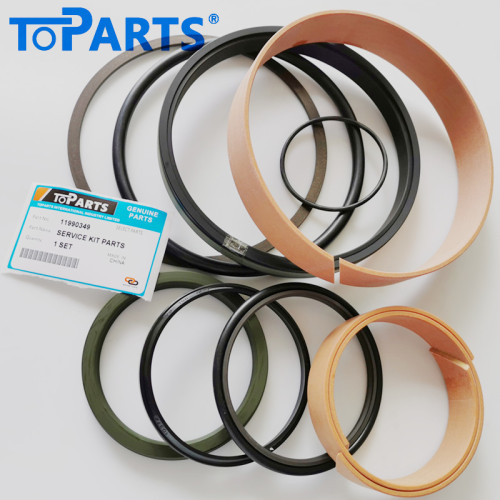

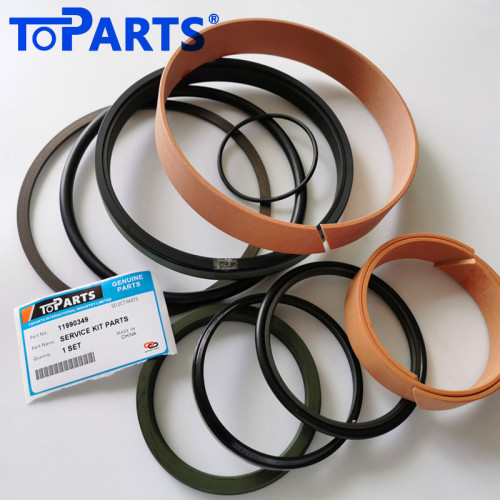

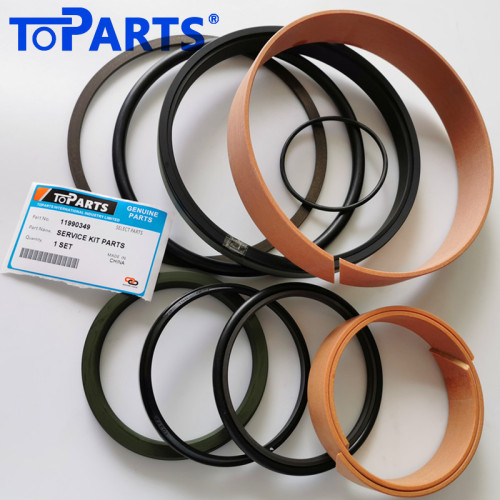

| VOE11990349 | 1 | Sealing kit |
