| NO. | Part Number | Quantity | Part Name |
| 1 | 209-5889 | 1 | ACTUATOR GP-PUMP |
| 2 | 177-2470 | 1 | COVER |
| 3 | 7X-25571 | 1 | BOLT |
| 4 | 177-2471 | 1 | COVER |
| 5 | 209-5890 | 1 | ACTUATOR GP-PUMP |
| 6 | 8T-4176 | 2 | BOLT |
| 7 | 8T-4140 | 4 | BOLT |
| 8 | 094-1882 | 16 | PLUG |
| 9 | 200-3333 | 1 | HEAD-PUMP |
| 10 | 129-7979 | 4 | DOWEL |
| 11 | 9S-4185 | 2 | PLUG-O-RING |
| 12 | 3K-0360 | 2 | SEAL-O-RING |
| 13 | 8T-4136 | 20 | BOLT |
| 14 | 247-8782 | 1 | BODY |
| 15 | 150-5782 | 2 | COVER |
| 16 | 8T-4139 | 10 | BOLT |
| 17 | 129-7863 | 1 | COVER |
| 18 | 129-7857 | 1 | GASKET |
| 19 | 179-9763 | 1 | FLANGE |
| 20 | 189-9763 | 8 | SEAL-O-RING |
| 21 | 095-0946 | 2 | RING-RETAINING |
| 22 | 129-7921 | 2 | RING-RETAINING |
| 23 | 192-0573 | 4 | PIN-DOWEL |
| 24 | 188-4210 | 2 | PISTON AS |
| 25 | 193-1736 | 4 | SEAL-O-RING |
| 26 | 194-8374 | 1 | BARREL AS |
| 27 | 177-8740 | 1 | SEAL-O-RING |
| 28 | 190-4896 | 2 | PLUG |
| 29 | 247-8920 | 2 | ORIFICE |
| 30 | 200-3406 | 1 | PUMP GP-GEAR |
| NPR | 3G-5083 | 1 | SEAL-LIP TYPE |
| NPR | 9T-0836 | 1 | RING-RETAINING |

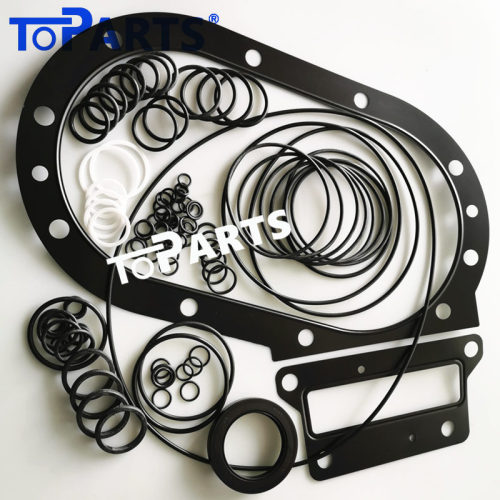

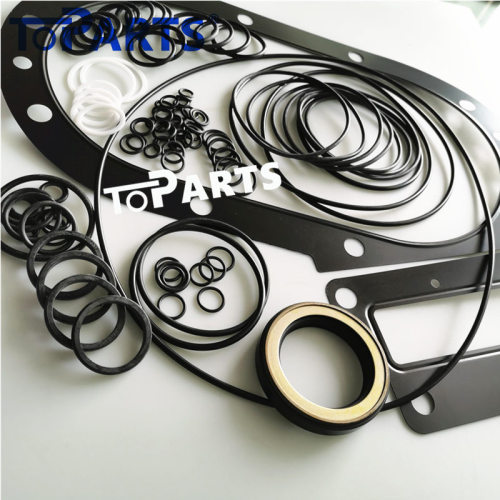

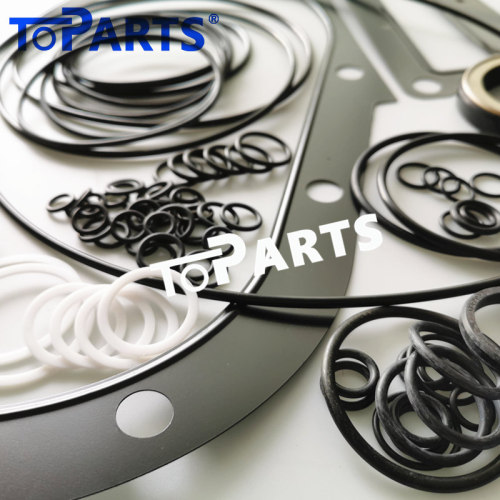

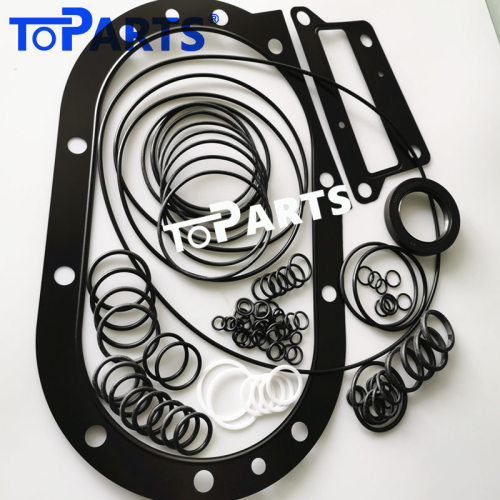

| NPR | 204-2792 | 1 | KIT-SEAL |
| 31 | 8T-3338 | 2 | SEAL-O-RING |
| 32 | 194-8325 | 2 | SET-BEARING |
| 33 | 096-4389 | 18 | SPRING |
| 34 | 7Y-4215 | 2 | SPACER |
| 35 | 173-3427 | 2 | GUIDE-BALL |
| 36 | 129-7853 | 2 | PLATE-CREEP |
| 37 | 194-8397 | 2 | SWASHPLATE AS |
| 38 | 177-2583 | 4 | BEARING |
| 39 | 129-7927 | 2 | BEARING |
| 40 | 129-7855 | 1 | GASKET |
| 41 | 200-3325 | 1 | SHAFT-DRIVEN |
| 42 | 7M-8485 | 2 | SEAL-O-RING |
| 43 | 8J-4645 | 2 | PLUG |
| 44 | 8T-4196 | 2 | BOLT |
| 45 | 4I-1022 | 2 | ORIFICE |
| 46 | 094-1875 | 6 | DOWEL |
| 47 | 200-3334 | 1 | COVER |
| 48 | 200-3413 | 1 | COUPLING |
| 49 | 194-8371 | 1 | BARREL AS |
| 50 | 8T-4192 | 10 | BOLT |
| 51 | 129-7854 | 1 | CASE |
| 52 | 200-3417 | 1 | SHAFT-DRIVE |
| 53 | 129-7925 | 1 | SEAL-LIP TYPE |
| 54 | 096-3983 | 1 | RING-RETAINING |
| 55 | 096-3944 | 1 | SEAL-O-RING |
| 56 | 8T-4175 | 2 | BOLT |
