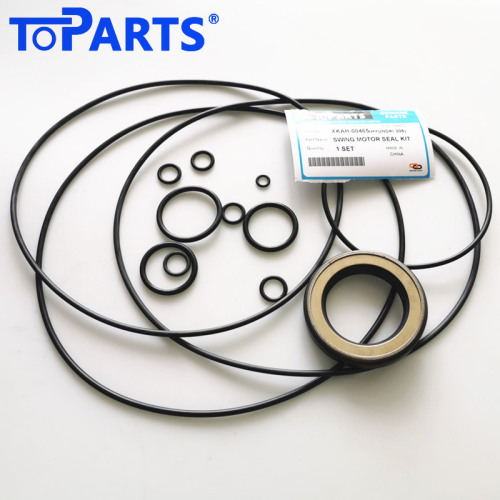

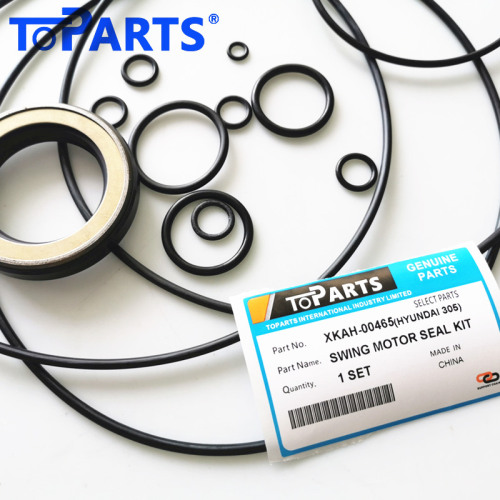

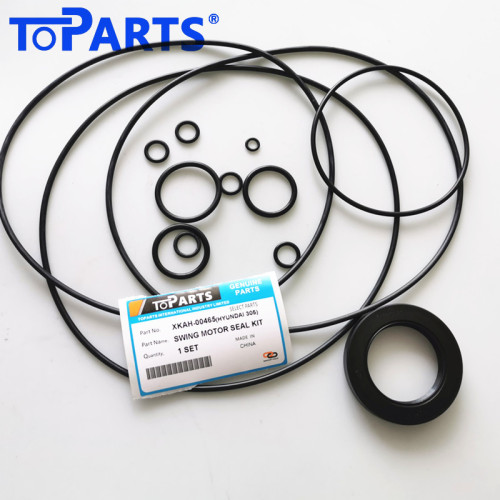

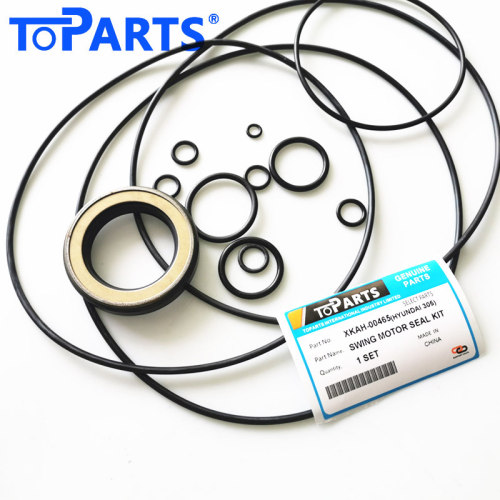

Model:XKAH-00465 Swing motor seal kit
Part Name: Swing motor seal kit
Motor Part Number:31N8-10120,31N8-10121,31N8-10122,31N8-10123
Part Number:XKAH-00465
For:Hyundai R290LC-7A,R290LC-7,R305LC-7,R305LC-7A,R320LC-7
Material :Steel+NBR
Certification: IOS 9000

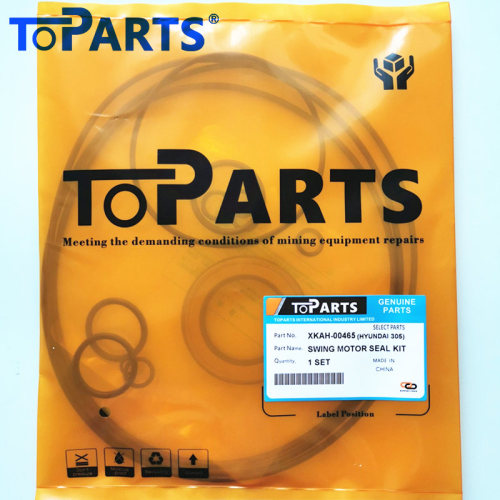

Packaging Details: bag or box +carton
Delivery Time:2-5days upon payments confirmed
Brand:Hyundai,TOPARTS, OEM or as Required
Payment Terms:TT/Paypal/WEST UNION
Supply Ability:500
Parts list
| NO. |
Part NO. |
Product name Name |
Quantity |
| |
31N8-10120 |
Swing Motor Assy |
1 |
| |
31N8-10121 |
Swing Motor Assy |
1 |
| |
31N8-10122 |
Swing Motor Assy |
1 |
| |
31N8-10123 |
Swing Motor Assy |
1 |
| *-one |
31N8-12010 |
Swing Gear (Platform Swing Motor) |
1 |
| * -2 |
@ |
SWING REDUCTION GEAR |
1 |
| 31 |
XKAH-00121 |
brake valve |
1 |
| 51 |
XKAH-00122 |
Safety valve (unloading, pressure relief) |
2 |
| 52 |
XKAH-00115 |
Valve body |
1 |
| 101 |
XKAH-00162 |
Drive Shaft (Drive) |
1 |
| 106 |
XKAH-00161 |
Insert |
3 |
| 111 |
XKAH-00160 |
Cylinder block |
1 |
| 113 |
XKAH-00159 |
Sleeve (spherical) |
1 |
| 114 |
XKAH-00158 |
Spring |
1 |
| 116 |
XKAH-00157 |
Push rod |
12 |
| 117 |
XKAH-00156 |
Spacer sleeve |
1 |
| 118 |
XKAH-00155 |
gasket g |
1 |
| 123 |
XKAH-00152 |
Valve plate |
1 |
| 124 |
XKAH-00151 |
shoe plate |
1 |
| 131 |
XKAH-00150 |
Distribution disk |
1 |
| 301 |
XKAH-00149 |
Casing |
1 |
| 303 |
XKAH-00546 |
valve body |
1 |
| 304 |
XKAH-00147 |
COVER-FRONT |
1 |
| 304 |
XKAH-00930 |
Front cover |
1 |
| 351 |
XKAH-00146 |
Plunger |
2 |
| 355 |
XKAH-00145 |
Spring |
2 |
| 401 |
XKAH-00144 |
Hex Bolt (Hex) |
4 |
| 432 |
XKAH-00143 |
Snap ring |
2 |
| 433 |
XKAH-00142 |
Snap ring |
1 |
| 437 |
XKAH-00141 |
Snap ring |
1 |
| 438 |
XKAH-00140 |
Snap ring |
1 |
| 443 |
XKAH-00139 |
Roller bearing |
1 |
| 444 |
XKAH-00138 |
Roller bearing |
1 |
| 451 |
XKAH-00137 |
Finger |
2 |
| 464 |
XKAH-00136 |
plugin V.P. |
1 |
| 468 |
XKAH-00136 |
plugin V.P. |
2 |
| 469 |
XKAH-00135 |
Cork |
2 |
| 702 |
XKAH-00130 |
Brake cylinder piston |
1 |
| 712 |
XKAH-00127 |
SPRING-BRAKE |
20 |
| 742 |
XKAH-00126 |
friction plate |
2 |
| 743 |
XKAH-00125 |
plate necessary separation |
3 |
| 744 |
XKAH-00120 |
Cork |
2 |
| 745 |
XKAH-00119 |
Cork |
1 |
| 746 |
XKAH-00118 |
Cork |
1 |
| 841 |
XKAH-00114 |
Hex Bolt (Hex) |
2 |
| 993 |
XKAH-00124 |
Cork |
1 |
| 994 |
XKAH-00123 |
Cork |
1 |
| K |
XKAH-00465 |
Repair Kit / Seal Kit (Repair Kit) |
1 |
| K471 |
XKAH-00134 |
O-ring (O-ring) |
1 |
| K472 |
XKAH-00133 |
O-ring (O-ring) |
1 |
| K485 |
XKAH-00052 |
O-ring (O-ring) |
1 |
| K487 |
XKAH-00052 |
O-ring (O-ring) |
2 |
| K488 |
XKAH-00132 |
O-ring (O-ring) |
2 |
| K491 |
XKAH-00131 |
Stuffing box |
1 |
| K491 |
XKAH-00929 |
Stuffing box |
1 |
| K706 |
XKAH-00129 |
O-ring (O-ring) |
1 |
| K707 |
XKAH-00128 |
O-ring (O-ring) |
1 |
| N |
@ |
NOT INDIVIDUALLY SUPPLIED |
1 |
| N * |
31N8-10120 |
Swing Gear (Platform Swing Motor), assy |
1 |
| N * |
31N8-10121 |
Swing Gear (Platform Swing Motor), assy |
1 |
| N * |
31N8-10122 |
Swing Gear (Platform Swing Motor), assy |
1 |
| N * |
31N8-10123 |
Swing Gear (Platform Swing Motor), assy |
1 |
| NS121 |
XKAH-00154 |
Piston |
9 |
| NS122 |
XKAH-00153 |
SHOE |
9 |
| S |
XKAH-00615KT |
Piston kit (piston assembly) |
1 |
Application chart
Our advantage: original system data to ensure accurate size
Our customers
Toparts Provide best sealing solutions,our main products are:
Hydraulic Breaker seal kit,
Excavator seal kit, Crane seal kit, Wheel Loaders seal kit, Crawler Dozers seal kit, Pump seal kit, Motor seal kit, Dump Trucks seal kit.
Seal kit for Excavator
Hydraulic cylinder seal kit
Boom seal kit;Arm seal kit;Bucket seal kit;
hydraulic pump seal kit
Swing motor seal kit,
Travel motor seal kit,
Polit Control seal kit,
Control valve seal kit
Center Joint seal kit,
Track Adjuster seal kit,
Gear Pump seal kit.
Serviceable excavator brands: Komatsu, Caterpillar, Hitachi, Kobelco, Sumitomo, Doosan, Hyundai, Kato, Volvo, JCB, Sany, etc.
